3RB30361UD0

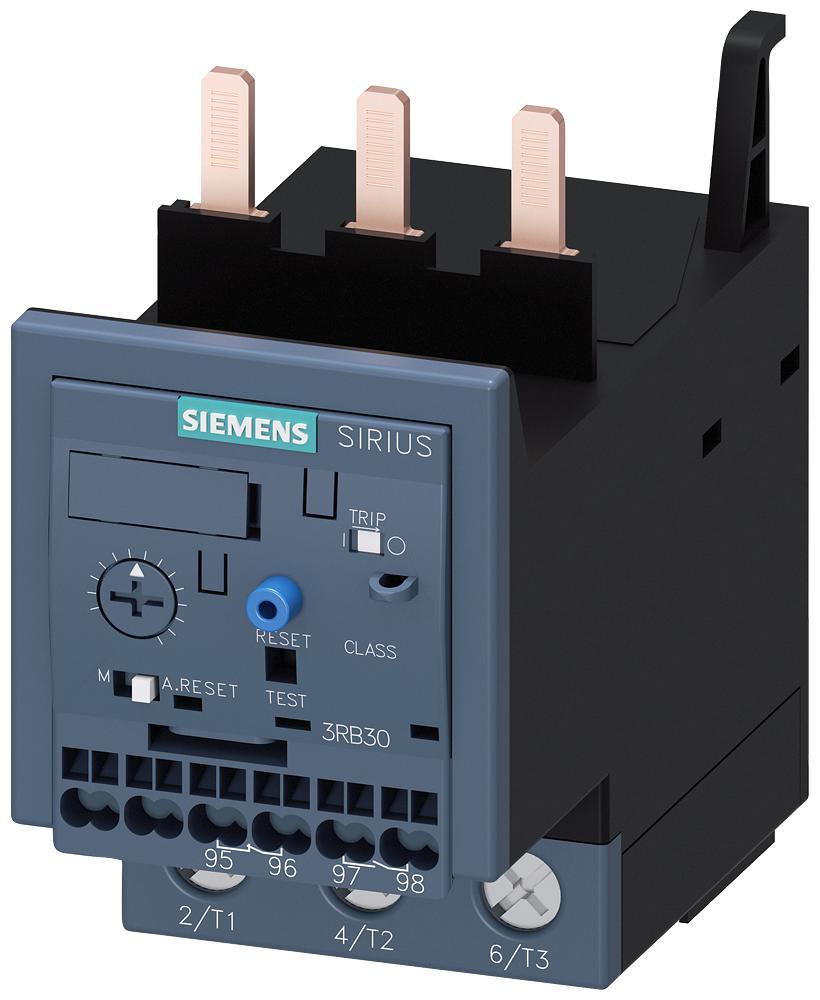

Siemens 3RB30361UD0
Part Number # 3RB30361UD0
SKU # 2463680
$254.51 / Each
Typical price:$524.00 / Each
Siemens 3RB30361UD0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RB30361UD0 |
| SKU #: | 2463680 |
| Amperage Rating: | 12.5 to 50 A |
| Contact Rating: | 4 A at 24/110/120/125 V AC, 3 A at 230 V AC, 2 A at 24 V DC, 0.55 A at 60 V DC, 0.3 A at 110/125 V DC, 0.11 A at 220 V DC |
| Dimensions: | 55 mm W x 104 mm D x 99 mm H |
| Display Type: | Slide Switch |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| Terminal Type: | Spring Loaded |
| Type: | Solid-State |
| Mounting type: | Contactor |
| UNSPSC: | 39122330 |
| UPC: | 00887621914554 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$254.51 / Each
Typical price:$524.00 / Each
Quantity:
- Siemens Overload Relay, Solid-State, 12.5 to 50 A, 7.5 to 22 kW 3 ph at 400 V 50 Hz/11 to 30 kW at 500 VAC 50 Hz/11 to 45 kW at 690 VAC 50 Hz Power, 50/60 Hz Frequency, 1NO-1NC 1 Form A/1 Form B Contact Form, 4 A at 24/110/120/125 V AC, 3 A at 230 V AC, 2 A at 24 V DC, 0.55 A at 60 V DC, 0.3 A at 110/125 V DC, 0.11 A at 220 V DC Contact, 3 Pole, Contactor Mounting, Spring Loaded Terminal, Slide Switch Display, IP20 Enclosure, -25 to 60 deg C, 55 mm W x 104 mm D x 99 mm H Dimensions
3RB30361UD0 Application
For S2 size motor protection3RB30361UD0 Item Features
- Manual/automatic reset
- Auxiliary circuit - spring terminal
- Class 10E main circuit - screw terminal connection
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RB30361UD0 Standards
BAA Compliant|CCC Compliant|CSA Certified|EAC Compliant|UL ListedSKU #2463680Part Number #3RB30361UD0UNSPSC39122330UPC00887621914554
Image provided may only be a representation of final product and may include optional equipment
