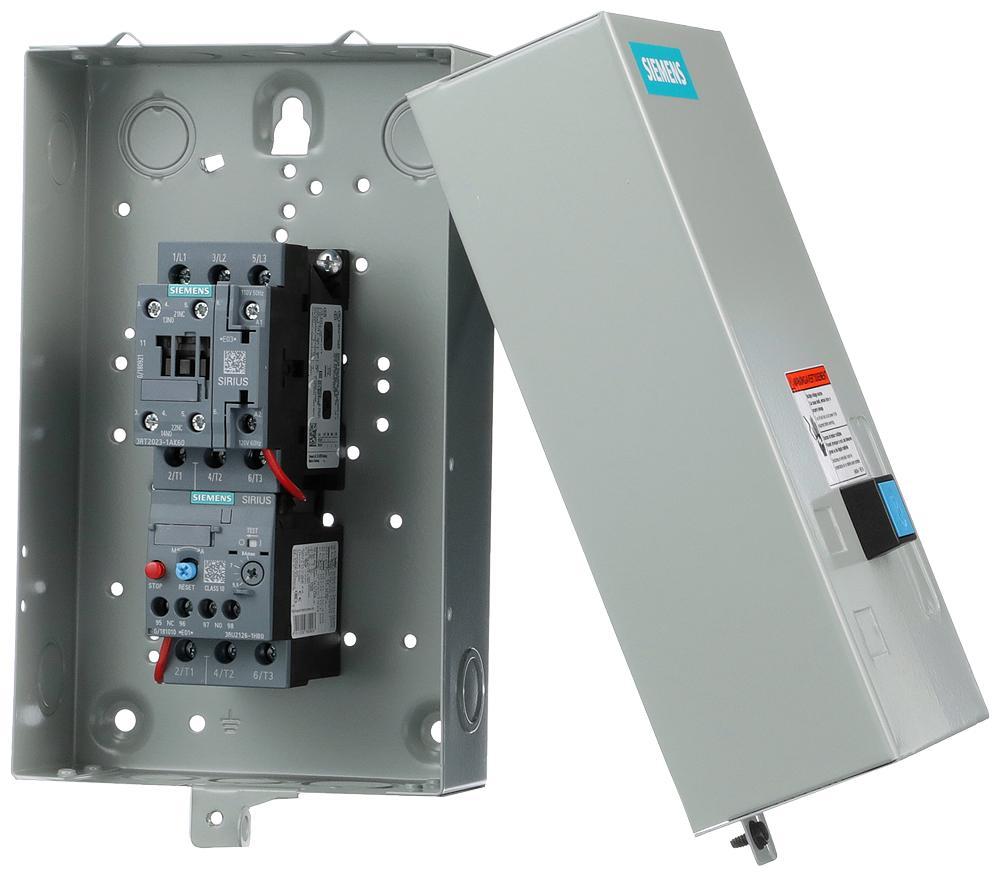

Siemens 3RE41123AA511JY0 Class 10 Full Voltage Non-Combination Non-Reversing Size 0 Standard Width Enclosure Motor Starter
Image Disclaimers Message
Siemens 3RE41123AA511JY0 Class 10 Full Voltage Non-Combination Non-Reversing Size 0 Standard Width Enclosure Motor Starter
Siemens 3RE41123AA511JY0 Class 10 Full Voltage Non-Combination Non-Reversing Size 0 Standard Width Enclosure Motor Starter
Part #:3RE41123AA511JY0
SKU #: 2385924
Key Features
Part #:3RE41123AA511JY0
SKU #: 2385924
Brand: Siemens
Auxiliary Contact Rating: 1 A at 115 VAC/1 A at 208 VAC/1 A at 230 VAC
Coil Voltage: 220/240 VAC at 50/60 Hz
Enclosure Type: NEMA 1
Full Load Current: 7 to 10 A
Overload Relay: Bi-Metal
Siemens 3RE41123AA511JY0 Class 10 Full Voltage Non-Combination Non-Reversing Size 0 Standard Width Enclosure Motor Starter
Siemens Motor Starter, Class 10 Full Voltage Non-Combination Non-Reversing Size 0 Standard Width Enclosure, 220/240 VAC at 50/60 Hz Coil, 1 ph, Bi-Metal Overload Relay, 7 to 10 A Full Load, 1 A at 115 VAC/1 A at 208 VAC/1 A at 230 VAC Auxiliary, NEMA 1 Enclosure
Additional Description: SIEM-3RE41123AA511JY0 STARTER,FVNR,S0,1PH,THOLR,240VAC,NE MA 1
Catalog Description: Non-reversing motor starter, Frame size 0, H2 UL horsepower rating Hp@VAC, 1@115, 1@208, 1@230, Bimetal overload relay, Fixed Trip Class 10, OLR amp range 7 - 10, 220/240 V AC 50/60HZ coil, Non-combination type, Enclosure NEMA type 1, Indoor general purpose use, Standard width enclosure, Standards UL 60947-4-1, Certifications cULus
