3RF2130-1AA02
Siemens 3RF2130-1AA02 Solid State Relay
Part Number # 3RF2130-1AA02
SKU # 2302946
$119.97 / Each
Typical price:$161.50 / Each
Siemens 3RF2130-1AA02 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RF2130-1AA02 |
| SKU #: | 2302946 |
| Amperage Rating: | 30 A |
| Coil Voltage: | 24 V DC |
| Contact Form: | 1NO 1 Form A |
| Contact Rating: | 30 A at 24 to 230 V AC |
| Dimensions: | 85 mm H x 22.5 mm W x 48 mm D |
| Display Type: | LED |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 1 |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Zero Point |
| Country of origin: | DE |
| Mounting type: | Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00754554860749 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$119.97 / Each
Typical price:$161.50 / Each
Quantity:
- Siemens, 3RF2130-1AA02, Solid State Relay, 1-Phase Zero Point, 30 A, 6.9 kW Power, 50/60 Hz Frequency, 24 V DC Coil, 1NO 1 Form A Contact Form, 30 A at 24 to 230 V AC Contact, 1 Pole, Threaded Mounting, Screw Terminal, LED Display, IP20 Enclosure, -25 to 60 deg C, 85 mm H x 22.5 mm W x 48 mm D Dimensions
3RF2130-1AA02 Application
For surface mounting on existing cooling surfaces3RF2130-1AA02 Item Features
- Reversing contactors with integrated interlocking
- Devices with integrated heat sink, ready to use
- 3.5 kW at 115 VAC, 6.9 kW at 230 VAC
- Zero switching
- With its compact design, which stays the same even at currents of up to 88 A, the 3RF21 steady-state relay is the ultimate in space-saving construction, at a width of 22.5 mm
- 1-phase
- Screw fixing mounting
- The logical connection method, with the power infeed and connection of the load, ensures tidy installation in the control cabinet
- Integrated mounting foot to snap on a standard mounting rail or for assembly onto a support plate
- https://www.youtube.com/watch?v=r5Le5rO_66U
3RF2130-1AA02 Standards
UL E143112|UL 508|CSA Certified|UL Recognized|EAC Approved|RCM Approved|C-Tick|IEC 60947-4-3|RoHS Compliant|REACH Article 33SKU #2302946Part Number #3RF2130-1AA02UNSPSC39121529UPC00754554860749

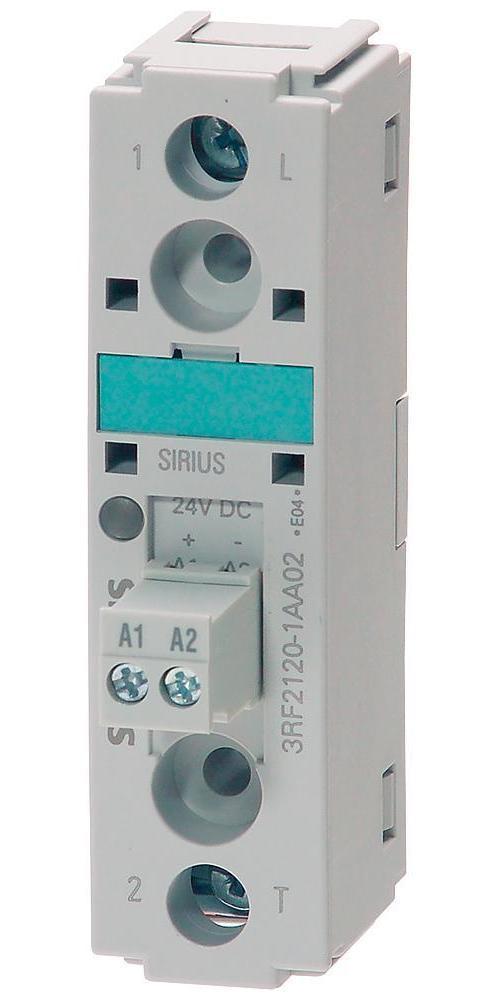

Image provided may only be a representation of final product and may include optional equipment
