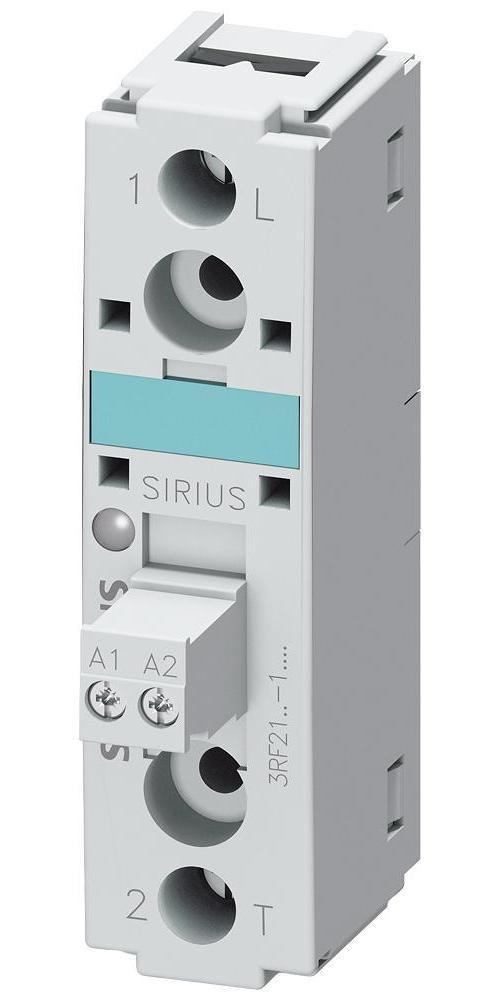

Siemens 3RF2130-1AA22 SIRIUS Solid State Relay
Part Number # 3RF2130-1AA22
SKU # 2292036
$124.80 / Each
Typical price:$168.00 / Each
Siemens 3RF2130-1AA22 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RF2130-1AA22 |
| SKU #: | 2292036 |
| Amperage Rating: | 30 A |
| Coil Voltage: | 110 to 230 V AC, 110 to 230 VAC |
| Contact Form: | 1NO, 1NO 1 Form A |
| Dimensions: | 85 mm H x 22.5 mm W x 48 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 1 |
| Series: | 3RF |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase Semiconductor Zero Point Switching |
| Country of origin: | DE |
| Mounting type: | Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00754554860770 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$124.80 / Each
Typical price:$168.00 / Each
Quantity:
- Siemens SIRIUS Solid State Relay, 1-Phase Semiconductor Zero Point Switching, Series: 3RF, 30 A, 50/60 Hz, 110 to 230 V AC Coil, 1NO 1 Form A, 1 Pole, Threaded Mount, Screw Terminal, IP20, -25 to 60 deg C, 85 mm H x 22.5 mm W x 48 mm D
3RF2130-1AA22 Application
For resistive/inductive loads and controlling electrical heat3RF2130-1AA22 Item Features
- Flexible for all applications with function modules for retrofitting
- Possibility of fuseless short-circuit proof design
- Saves time and costs with fast mounting and commissioning, short start up times and easy wiring
- Extremely long life, low maintenance, rugged and reliable
- Space saving and safe thanks to sideby side mounting up to an ambient temperature of 60 deg C
- Modular design - standardized function modules and heat sinks can be used in conjunction with solid state relays to satisfy individual requirements
3RF2130-1AA22 Standards
UL File No. E143112|WEEE (2012/19/EU)SKU #2292036Part Number #3RF2130-1AA22UNSPSC39121529UPC00754554860770
