Part #:3RF2310-2AA02
SKU #: 2338723
Key Features
Part #:3RF2310-2AA02
SKU #: 2338723
Brand: Siemens
Coil Voltage: 24, 24 VDC
Contact Configuration: 1NO
Dimensions: 100 mm H x 22.5 mm W x 91 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
- Extremely durable, low-maintenance, rugged and reliable thanks to long switching service life
- Wear and noise-free switching also for noise-sensitive areas
- Expandable functionality through plug-on function modules
- Complete units comprising a solid state relay and an optimized heat sink, ready to use
- Compact and space saving design
- Saves time and costs with fast mounting and commissioning, short start up times and easy wiring
- Flexible for all applications with function modules for retrofitting
- Version for resistive loads zero-point switching is often used for switching space heaters on and off

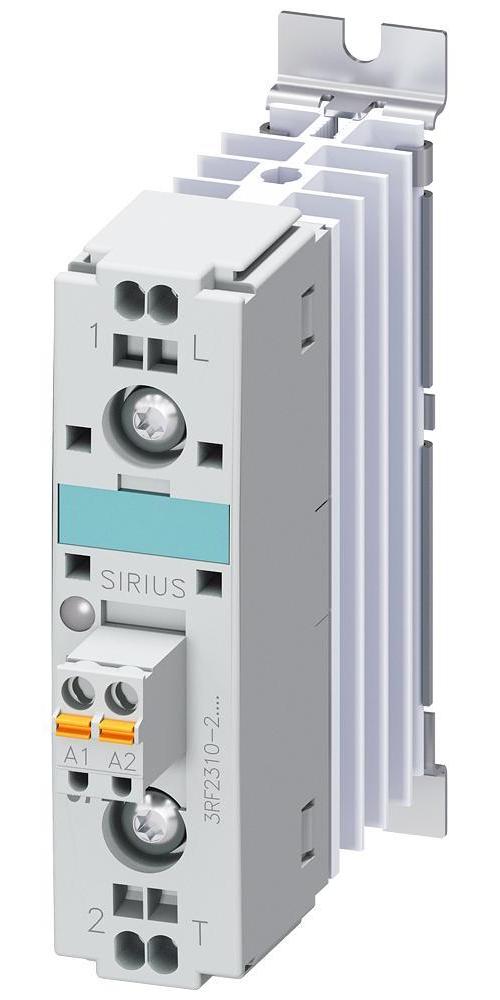

Siemens 3RF2310-2AA02 SIRIUS Solid State Contactor
Siemens SIRIUS Solid State Contactor, 1-Phase Zero Point Switching, Series: 3RF, 24 VDC Coil, 10.5 A Maximum Load Current, 1 Pole, 50/60 Hz Frequency, 1NO Contact Configuration, Spring Loaded Terminal, IP20 Enclosure, -25 to 60 deg C Operating, DIN Rail Mounting, 100 mm H x 22.5 mm W x 91 mm D Dimensions
Additional Description: SIEM-3RF2310-2AA02 24-230V,22MM SSZP CON,10A,SPRG,24VDC
Catalog Description: Solid State Contactor,SIRIUS SC 1 Pole 10 Amps at 24 VAC to 230 VAC 24 VDC CoilDIN Rail or Panel Mount Spring-loaded Terminals 22.5 mm Relay Width 22.5mm HeatSink Width Zero-Point Switching UL File E143112 in Vol.1 Sec.8
