Part Number # 3RF2320-1CA02
SKU # 2392589
Image Disclaimers Message
3RF2320-1CA02

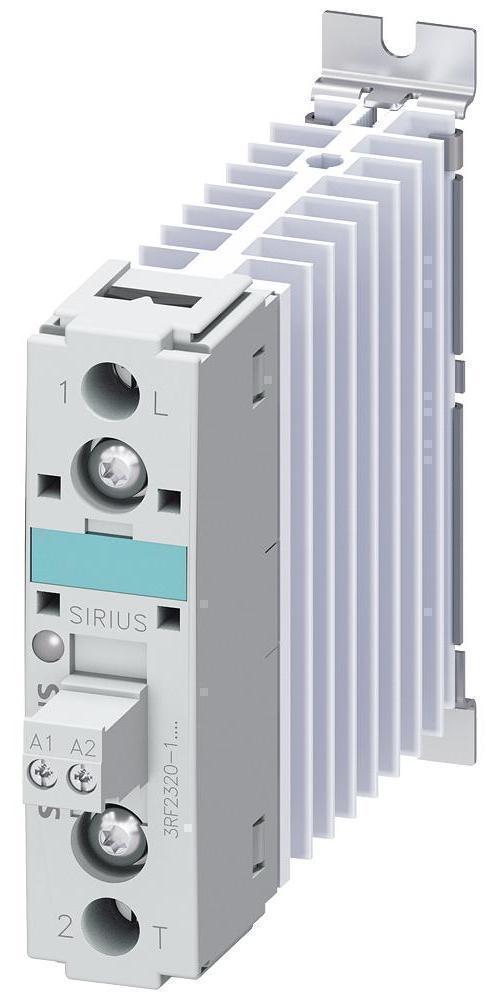

Siemens 3RF2320-1CA02 Solid State Contactor
Part Number # 3RF2320-1CA02
SKU # 2392589
Siemens 3RF2320-1CA02 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RF2320-1CA02 |
| SKU #: | 2392589 |
| Coil Voltage: | 15 to 24 VDC Supply/24 to 230 VAC Operational |
| Contact Configuration: | 1NO, 1NO-0NC |
| Dimensions: | 22.5 mm W x 123.5 mm D x 100 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 1 |
| Operating Temperature: | -25 to 60 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase |
| Country of origin: | DE |
| Mounting type: | Threaded/Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00754554863009 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RF2320-1CA02 Solid State Contactor
Brand: Siemens
Part Number: 3RF2320-1CA02
Siemens Solid State Contactor, 1-Phase, 15 to 24 VDC Supply/24 to 230 VAC Operational Coil, 20 A Maximum Load Current, 1 Pole, 50/60 Hz Frequency, 1NO-0NC Contact Configuration, Screw Terminal, IP20 Enclosure, -25 to 60 deg C Operating, Threaded/Snap-On Mounting, 22.5 mm W x 123.5 mm D x 100 mm H Dimensions
Additional Description: SIEM-3RF2320-1CA02 SS CONTACTOR,20A,230V,24VDC COIL,SCRW LN
Catalog Description: Solid State Contactor,SIRIUS SC 1 Pole 20 Amps at 24 VAC to 230 VAC 24 VDC CoilDIN Rail or Panel Mount Screw Terminals 22.5 mm Relay Width 22.5mm Heat Sink Width Low-Noise Switching UL File E143112 in Vol.1 Sec.8
3RF2320-1CA02 Includes
Solid State Relay and Optimized Heat Sink3RF2320-1CA02 Item Features
- Compact and space saving design
- Insulated enclosure with integrated heat sink
- Variety of connection methods
- Display via LEDs
- Wide voltage range for AC control supply voltage
- Low noise
- Zero point switching
3RF2320-1CA02 Standards
UL File No E143112SKU #2392589Part Number #3RF2320-1CA02UNSPSC39121529UPC00754554863009
