Part Number # 3RF2330-1BA06
SKU # 2411401
3RF2330-1BA06

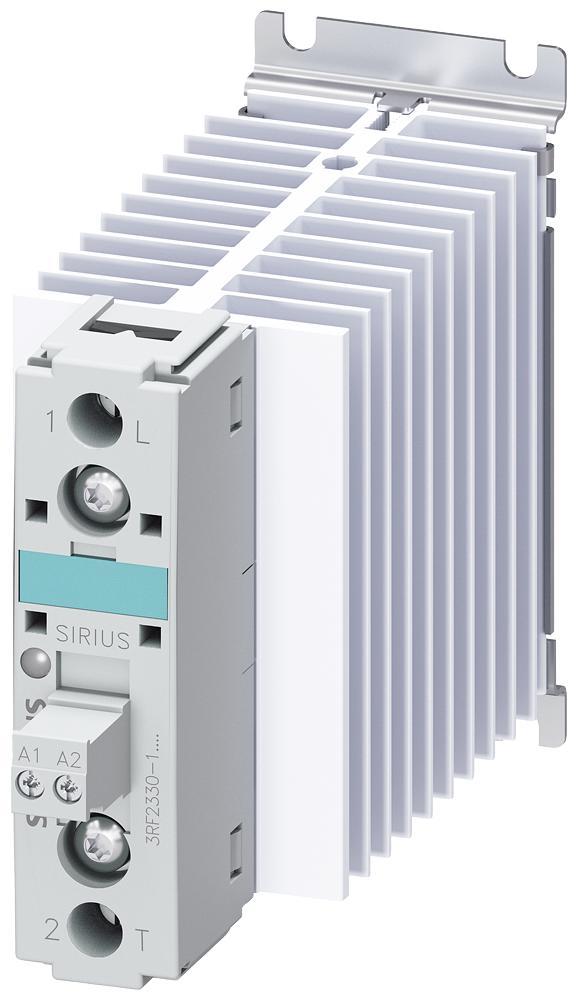

Siemens 3RF2330-1BA06 Solid State Contactor
Part Number # 3RF2330-1BA06
SKU # 2411401
Siemens 3RF2330-1BA06 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RF2330-1BA06 |
| SKU #: | 2411401 |
| Coil Voltage: | 15 to 24 V DC Supply/48 to 600 V AC Operational, 15 to 24 VDC Supply/48 to 600 VAC Operational |
| Contact Configuration: | 1NO, 1NO-0NC |
| Dimensions: | 45 mm W x 139 mm D x 100 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 1 |
| Operating Temperature: | -25 to 60 deg C |
| Terminal Type: | Screw |
| Type: | 1-Phase |
| Country of origin: | DE |
| Mounting type: | Threaded/Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00754554861814 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RF2330-1BA06 Solid State Contactor
Brand: Siemens
Part Number: 3RF2330-1BA06
Siemens Solid State Contactor, 1-Phase, 15 to 24 VDC Supply/48 to 600 VAC Operational Coil, 30 A Maximum Load Current, 1 Pole, 50/60 Hz Frequency, 1NO-0NC Contact Configuration, Screw Terminal, IP20 Enclosure, -25 to 60 deg C Operating, Threaded/Snap-On Mounting, 45 mm W x 139 mm D x 100 mm H Dimensions
Additional Description: SIEM-3RF2330-1BA06 400/600V,22MM,SSIS,CON,30A,SCRW,24V DC
Catalog Description: Solid State Contactor,SIRIUS SC 1 Pole 30 Amps at 400 VAC to 600 VAC 24 VDC Coil DIN Rail or Panel Mount Screw Terminals 22.5 mm Relay Width 45 mm Heat Sink Width Instantaneous Switching UL File E143112 in Vol.1 Sec.8
3RF2330-1BA06 Includes
Solid State Relay and Optimized Heat Sink3RF2330-1BA06 Item Features
- Compact and space saving design
- Insulated enclosure with integrated heat sink
- Variety of connection methods
- Display via LEDs
- Wide voltage range for AC control supply voltage
- Instantaneous switching
3RF2330-1BA06 Standards
UL File No E143112SKU #2411401Part Number #3RF2330-1BA06UNSPSC39121529UPC00754554861814
Image provided may only be a representation of final product and may include optional equipment
