Part Number # 3RF2330-1DA44
SKU # 2360184
Image Disclaimers Message
3RF2330-1DA44

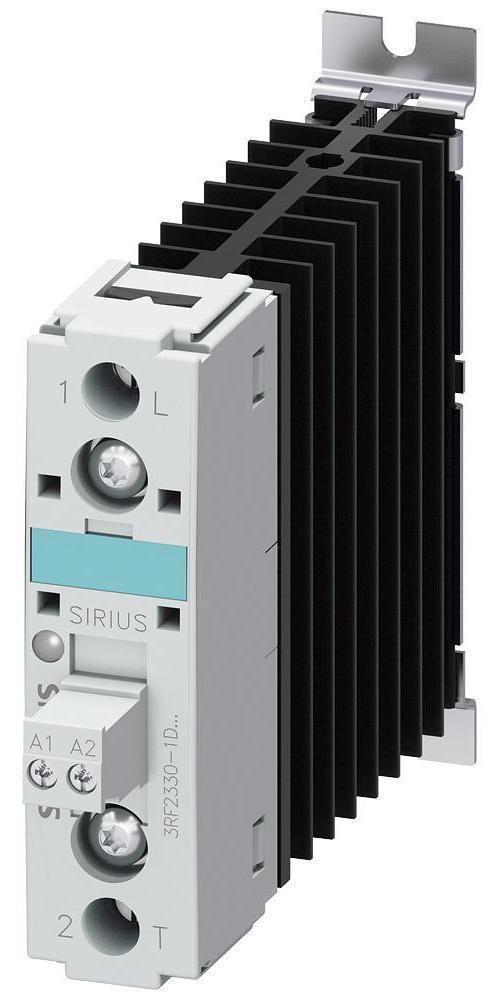

Siemens 3RF2330-1DA44 SIRIUS Solid State Contactor
Part Number # 3RF2330-1DA44
SKU # 2360184
$290.64 / Each
Typical price:$382.00 / Each
Siemens 3RF2330-1DA44 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RF2330-1DA44 |
| SKU #: | 2360184 |
| Coil Voltage: | 4 to 30, 4 to 30 V DC, 4 to 30 VDC |
| Contact Configuration: | 1NO |
| Dimensions: | 100 mm H x 22.5 mm W x 123.5 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 1 |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Series: | 3RF |
| Terminal Type: | Screw |
| Type: | 1-Phase Zero Point Switching |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00754554956060 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$290.64 / Each
Typical price:$382.00 / Each
Quantity:
- Siemens SIRIUS Solid State Contactor, 1-Phase Zero Point Switching, Series: 3RF, 4 to 30 V DC Coil, 30 A Maximum Load, 1 Pole, 50/60 Hz, 1NO, Screw Terminal, IP20, -25 to 60 deg C Operating, DIN Rail Mount, 100 mm H x 22.5 mm W x 123.5 mm D
3RF2330-1DA44 Application
Industrial, Residential, Business and Commercial Applications3RF2330-1DA44 Item Features
- Extremely durable, low-maintenance, rugged and reliable thanks to long switching service life
- Wear and noise-free switching also for noise-sensitive areas
- Expandable functionality through plug-on function modules
- Complete units comprising a solid state relay and an optimized heat sink, ready to use
- Compact and space saving design
- Saves time and costs with fast mounting and commissioning, short start up times and easy wiring
- Flexible for all applications with function modules for retrofitting
- Short circuit-proof with B miniature circuit breaker
3RF2330-1DA44 Standards
WEEE (2012/19/EU)|EN 61373 Category 1, Class BSKU #2360184Part Number #3RF2330-1DA44UNSPSC39121529UPC00754554956060
