Part Number # 3RF2370-3AA45
SKU # 2300043
3RF2370-3AA45

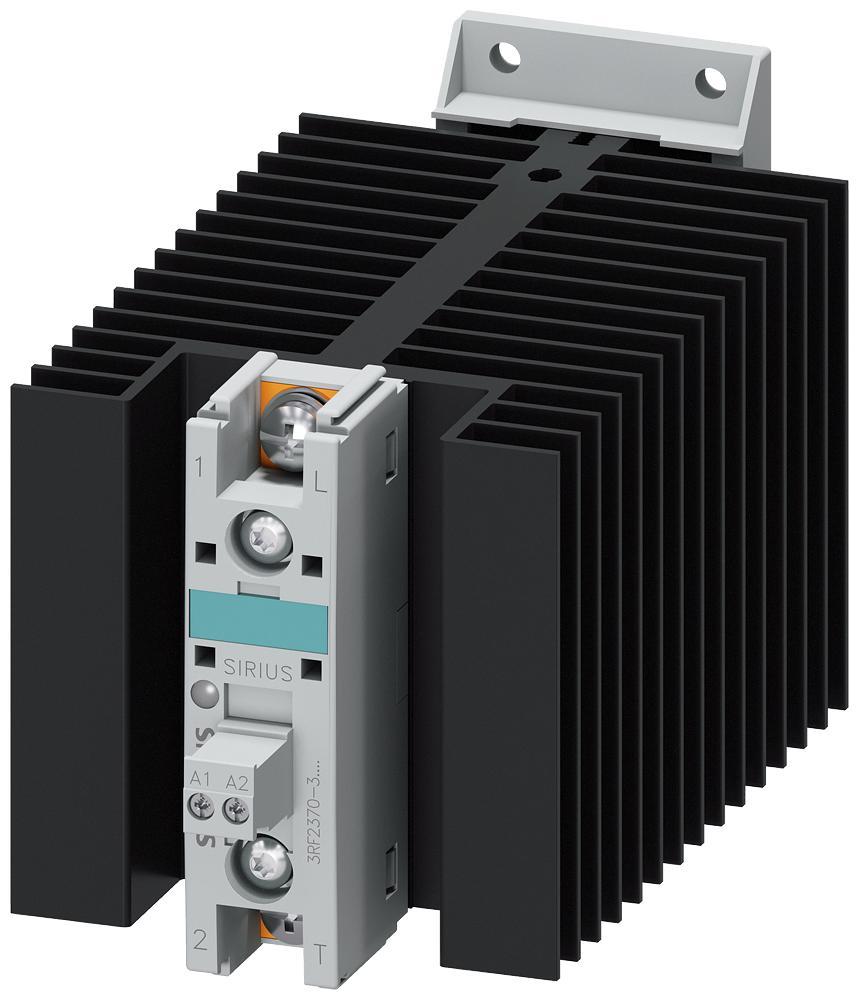

Siemens 3RF2370-3AA45 SIRIUS Solid State Contactor
Part Number # 3RF2370-3AA45
SKU # 2300043
Siemens 3RF2370-3AA45 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RF2370-3AA45 |
| SKU #: | 2300043 |
| Coil Voltage: | 4 to 30 V DC |
| Contact Configuration: | 1NO |
| Dimensions: | 200 mm H x 180 mm W x 163 mm D |
| Enclosure Type: | IP00 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RF |
| Type: | 1-Phase Zero Point Switching |
| Connection type: | Ring Cable Lug |
| Mounting type: | Threaded |
| UNSPSC: | 39121529 |
| UPC: | 00754554925905 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RF2370-3AA45 SIRIUS Solid State Contactor
Brand: Siemens
Part Number: 3RF2370-3AA45
Siemens SIRIUS Solid State Contactor, 1-Phase Zero Point Switching, Series: 3RF, 4 to 30 VDC Coil, 70 A Maximum Load, 1 Pole, 50/60 Hz, 1NO, Ring Cable Lug, IP00, -25 to 60 deg C Operating, Threaded Mount, 200 mm H x 180 mm W x 163 mm D
Additional Description: SIEM-3RF2370-3AA45 SSC,70A,48-600V,ZERO,RT,4-30VDC COIL
Catalog Description: Blocking voltage 1200 v ring cable connection 200-600 v / 4-30 V DC AC51 70a 40degree c semiconductor contactor 3RF2
3RF2370-3AA45 Application
Industrial, Residential, Business and Commercial Applications3RF2370-3AA45 Item Features
- Extremely durable, low-maintenance, rugged and reliable thanks to long switching service life
- Wear and noise-free switching also for noise-sensitive areas
- Expandable functionality through plug-on function modules
- Complete units comprising a solid state relay and an optimized heat sink, ready to use
- Compact and space saving design
- Saves time and costs with fast mounting and commissioning, short start up times and easy wiring
- Flexible for all applications with function modules for retrofitting
- Version for resistive loads zero-point switching is often used for switching space heaters on and off
3RF2370-3AA45 Standards
WEEE (2012/19/EU)|EN 61373 Category 1|Class BSKU #2300043Part Number #3RF2370-3AA45UNSPSC39121529UPC00754554925905
Image provided may only be a representation of final product and may include optional equipment
