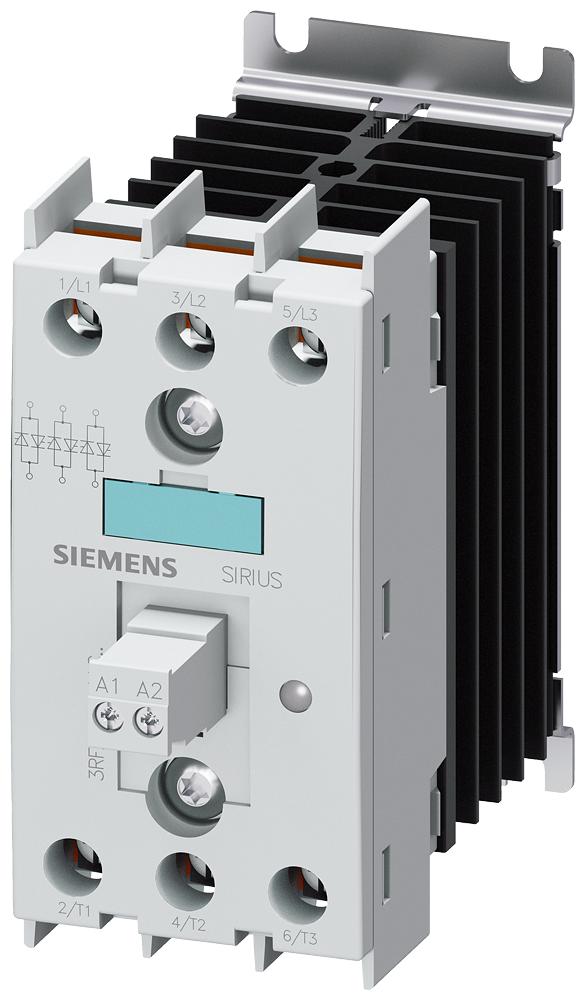

Siemens 3RF2410-1AC45 Solid State Contactor
Siemens 3RF2410-1AC45 Solid State Contactor
Part #:3RF2410-1AC45
SKU #: 2261188
Key Features
Part #:3RF2410-1AC45
SKU #: 2261188
Brand: Siemens
Coil Voltage: 4 to 30 VDC, 48 to 600 VAC, 4 to 30 VDC
Contact Configuration: 3NO
Dimensions: 100 mm H x 45 mm W x 104.5 mm D
Enclosure Type: IP20
Frequency Rating: 50/60, 50/60 Hz
- Compact and space-saving design
- Insulated enclosure with integrated heat sink
- Integrated mounting foot to snap on a standard mounting rail or for assembly onto a support plate
- Reversing contactors with integrated interlocking
- Plug-in control connection
Siemens 3RF2410-1AC45 Solid State Contactor
SIRIUS Solid State Contactor, 3-Phase Zero Point Switching, 4 to 30 VDC Coil, 10 A Maximum Load, 3 Pole, 50/60 Hz, 3NO, Plug-In, Screw Terminal, IP20, -25 to 60 deg C Operating, Rail Mount, 100 mm H x 45 mm W x 104.5 mm D
Additional Description: SIEM-3RF2410-1AC45 SS CONT,10A,48-600V,3P,4-30VDC,ZP,SCRE W
Catalog Description: Solid-state contactor 3-phase 3RF2 AC 51 / 10 a / 40 c 48-600 v / 4-30 V DC 3-phase controlled screw terminal blocking voltage 1200 v
