Part Number # 3RF2430-1AB45
SKU # 2454379
3RF2430-1AB45

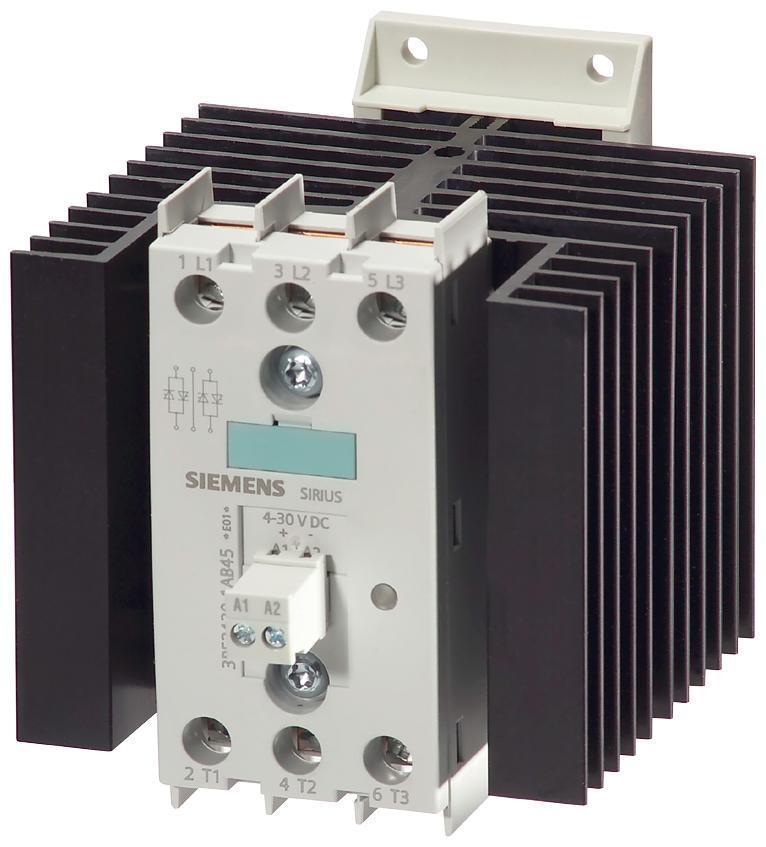

Siemens 3RF2430-1AB45
Part Number # 3RF2430-1AB45
SKU # 2454379
Siemens 3RF2430-1AB45 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RF2430-1AB45 |
| SKU #: | 2454379 |
| Coil Voltage: | 48 to 600 V AC, 4 to 30 V DC |
| Dimensions: | 100 mm H x 90 mm W x 112.5 mm D |
| Type: | 3-Phase Zero Point Switching |
| UNSPSC: | 39121529 |
| UPC: | 00040892554038 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RF2430-1AB45
Brand: Siemens
Part Number: 3RF2430-1AB45
Siemens Solid State Contactor, 3-Phase Zero Point Switching, Series: 3RF, 48 to 600 V AC, 4 to 30 V DC Coil, 30 A Maximum Load Current, 3 Poles, 50/60 Hz Frequency, 3NO Contact Configuration, Screw Terminal, IP20 Enclosure, -25 to 60 deg C Operating, DIN Rail Mounting, 100 mm H x 90 mm W x 112.5 mm D Dimensions
Additional Description: SIEM-3RF2430-1AB45 SOLID-STATE CONTACTOR 3-PHASE,30A,48-600V,4-30VDC,ZP, SCREW TERMINAL BLOCKING VOLTAGE 1200V
Catalog Description: Solid-state contactor 3-phase 3RF2 AC 51 / 30 a / 40 c 48-600 v / 4-30 V DC 2-phase controlled screw terminal blocking voltage 1200 v
3RF2430-1AB45 Application
For switching motors3RF2430-1AB45 Item Features
- Plug-in control connection
- Insulated enclosure with integrated heat sink
- Compact and space-saving design
- Integrated mounting foot to snap on a standard mounting rail or for assembly onto a support plate
- Reversing contactors with integrated interlocking
- Zero point switching
- https://www.youtube.com/watch?v=r5Le5rO_66U|https://www.youtube.com/watch?v=AqAT1GKcVls|https://www.youtube.com/watch?v=nT_bCuj5xtQ
3RF2430-1AB45 Standards
RoHS Compliant|REACH Article 33|CSA Certified|UL Listed|EAC Approved|RCM Approved|IEC 60947-4-3|UL 508|C-TickSKU #2454379Part Number #3RF2430-1AB45UNSPSC39121529UPC00040892554038
Image provided may only be a representation of final product and may include optional equipment
