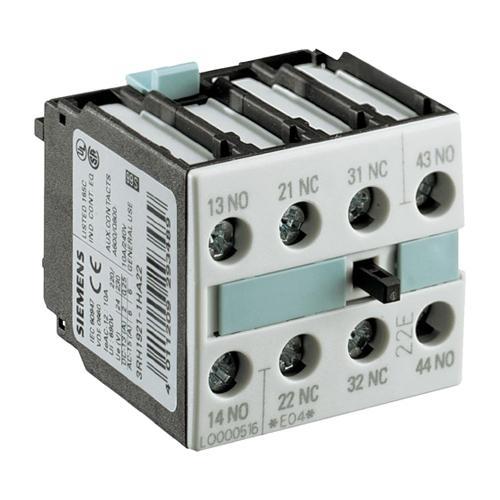

Siemens 3RH1921-1CD01 Sirius Auxiliary Switch Block
Part Number # 3RH1921-1CD01
SKU # 2386621
3RH1921-1CD01
Siemens 3RH1921-1CD01 Sirius Auxiliary Switch Block
Part Number # 3RH1921-1CD01
SKU # 2386621
$17.57 / Each
Typical price:$41.00 / Each
Siemens 3RH1921-1CD01 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RH1921-1CD01 |
| SKU #: | 2386621 |
| Amperage Rating: | 1/0.26 A |
| Dimensions: | 38 mm H x 10 mm W x 51 mm D |
| Environmental Conditions: | -55 to 80 deg C |
| Number of Contacts: | 1 |
| Operating Cycles: | 200000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Suitable For Use With: | Size S0 to Size S12 Contactor |
| Mounting type: | Snap-On |
| UNSPSC: | 39121522 |
| UPC: | 00754554762746 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$17.57 / Each
Typical price:$41.00 / Each
Quantity:
- Siemens SIRIUS, 3RH1921-1CD01, Auxiliary Switch Block, 690 V AC/600 V DC, 1/0.26 A, 1 Contacts, Snap-On Mounting, 200000 Cycles Operating Cycles, -25 to 60 deg C Operating, Environmental Conditions: -55 to 80 deg C, For Use With: Size S0 to Size S12 Contactor, 38 mm H x 10 mm W x 51 mm D Dimensions
3RH1921-1CD01 Item Features
- 10000000 mechanical/200000 electrical cycles
- Snapping onto the front according to DIN EN 50005
- 1-pole
- 1NC contact configuration
- Screw terminal connection
- 6 A/1 A at 24/690 VAC AC-15, 10 A/0.26 A at 24/600 VDC DC-13
- 10 A at 24/230 VAC, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC
- IP20 degree of protection
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RH1921-1CD01 Standards
CSA Certified|EAC Approved|EN 50005|RoHS Compliant|ABS Approved|RMRS ApprovedSKU #2386621Part Number #3RH1921-1CD01UNSPSC39121522UPC00754554762746
Image provided may only be a representation of final product and may include optional equipment
