Siemens 3RH1921-1EA02 SIRIUS Auxiliary Switch Block
Part Number # 3RH1921-1EA02
SKU # 185401
3RH1921-1EA02
Siemens 3RH1921-1EA02 SIRIUS Auxiliary Switch Block
Part Number # 3RH1921-1EA02
SKU # 185401
Siemens 3RH1921-1EA02 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RH1921-1EA02 |
| SKU #: | 185401 |
| Dimensions: | 80 mm H x 10 mm W x 71 mm D |
| Size: | Size S0 |
| UNSPSC: | 39121522 |
| UPC: | 00662643896848 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RH1921-1EA02 SIRIUS Auxiliary Switch Block
Brand: Siemens
Part Number: 3RH1921-1EA02
SIRIUS Auxiliary Switch Block, 690/600 V AC/V DC, 1/0.26 A, 2 Contacts, 6 kV Contact Resistance, Size S0, Snap-On Mount, 200000 Cycles Operating Cycles, -25 to 60 deg C Operating, Environmental Conditions: -55 to 80 deg C, For Use With: Size S0 to Size S12 Contactor, 80 mm H x 10 mm W x 71 mm D
Additional Description: SIEM-3RH1921-1EA02 AUXILIARY SIDE, S0-S3,2NC
Catalog Description: Motors, 2-pole for contactors for switching screw connection, size s0...s12 dinen50005, laterally, 10 mm auxiliary switch block, 2
3RH1921-1EA02 Item Features
- 10000000 mechanical/200000 electrical cycles
- 2-pole
- Auxiliary switch first can be mounted on the side
- 2NC contact configuration
- Screw terminal connection
- Laterally mountable auxiliary switch blocks according to DIN EN 50005
- 6 A/1 A at 24/690 VAC AC-15, 10 A/0.26 A at 24/600 VDC DC-13
- 10 A at 24/230 VAC, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC
- IP20 degree of protection
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RH1921-1EA02 Standards
UL Listed|EAC Approved|EN 50005|RoHS Compliant|ABS Approved|Bureau Veritas Certified|Lloyds Registered|PRS Certified|RINA Certified|RMRS ApprovedSKU #185401Part Number #3RH1921-1EA02UNSPSC39121522UPC00662643896848

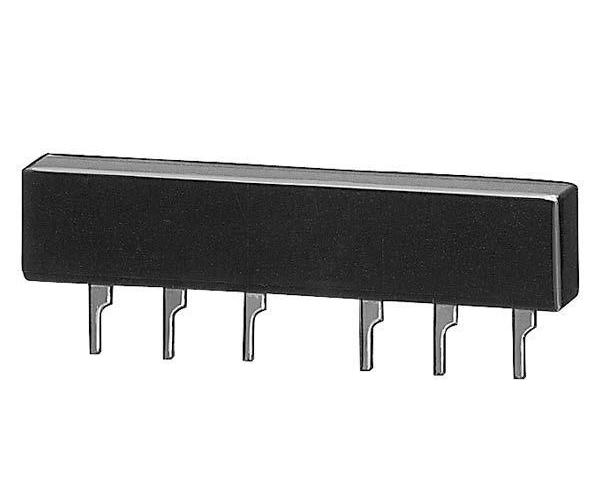

Image provided may only be a representation of final product and may include optional equipment
