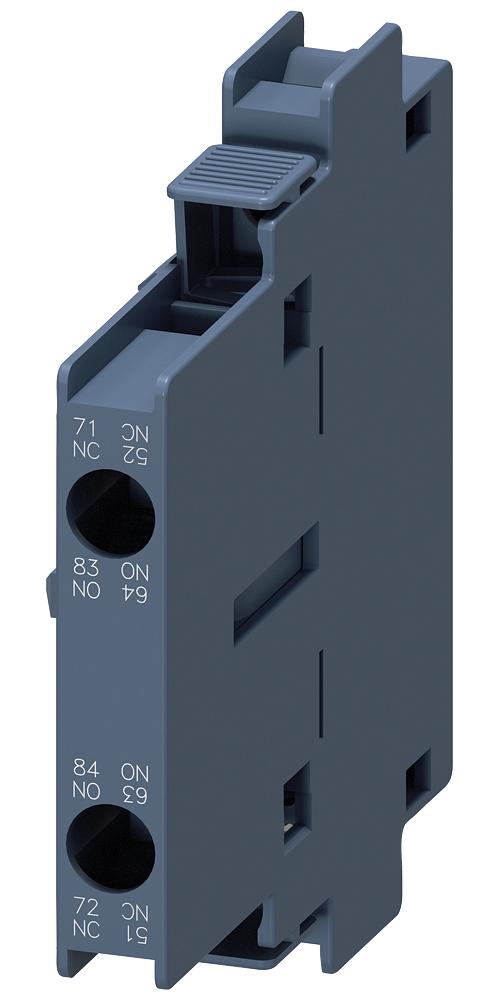

Siemens 3RH1921-1EA11 Auxiliary Switch Block
Image Disclaimers Message
Siemens 3RH1921-1EA11 Auxiliary Switch Block
Siemens 3RH1921-1EA11 Auxiliary Switch Block
Part #:3RH1921-1EA11
SKU #: 33040
Key Features
Part #:3RH1921-1EA11
SKU #: 33040
Brand: Siemens
Amperage Rating: 0.25, 1/3/10 A, 6
Contact Configuration: 1NO-1NC
Dimensions: 80 mm H x 10 mm W x 71 mm D, 80 mm L x 10 mm W x 71 mm H
Environmental Conditions: -55 to 80 deg C Storage Temperature
Number of Contacts: 2
- 10 A at 24/230 VAC, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC
- 10000000 mechanical/200000 electrical cycles
Siemens 3RH1921-1EA11 Auxiliary Switch Block
SIRIUS Auxiliary Switch Block, Lateral, 24/230 VAC/24/110/220 VDC, 1/3/10 A, 2 Contacts, Size S0 to S12, Snap-On Mount, 10000000/200000 Cycles Operating Cycles, -25 to 60 deg C Operating, Environmental Conditions: -55 to 80 deg C Storage Temperature, For Use With: 3RT1 Motor Contactor, Contactor Relay, Power Contactor, 80 mm H x 10 mm W x 71 mm D
Additional Description: SIEM-3RH1921-1EA11 AUXILIARY SWITCH,SCREW TERMINAL,1NO,1NC _1NC
Catalog Description: Aux. switch block, 1NO+1NC, din en50005, laterally, 10 mm screw connection,sizes0...s12, for contactors for switching motors, 2-pole
