Part Number # 3RH1921-1EA20
SKU # 1933102
Image provided may only be a representation of
final product and may include optional equipment
3RH1921-1EA20

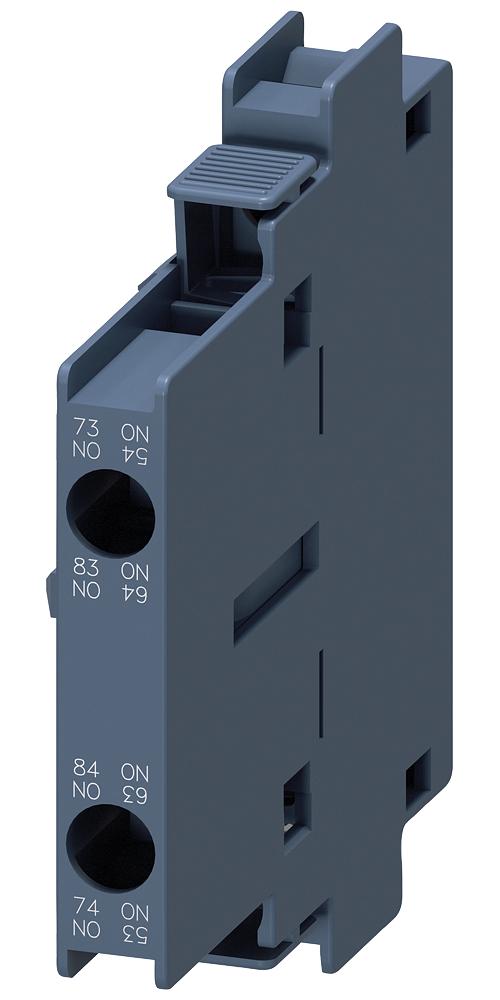

Siemens 3RH1921-1EA20 SIRIUS Auxiliary Switch Block
Part Number # 3RH1921-1EA20
SKU # 1933102
Siemens 3RH1921-1EA20 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RH1921-1EA20 |
| SKU #: | 1933102 |
| Amperage Rating: | 0.41, 1/3/10 A |
| Dimensions: | 80 mm H x 10 mm W x 71 mm D |
| Environmental Conditions: | -55 to 80, -55 to 80 deg C Storage Temperature |
| Frequency Rating: | 50/60 |
| Number of Contacts: | 2 |
| Operating Cycles: | 10000000, 10000000/200000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | Size S0 to S12, Size S0/S12 |
| Suitable For Use With: | 3RT1 Motor Contactor, Contactor Relay, Power Contactor, Contactor Relay and Power Contactor |
| Type: | Lateral |
| Country of origin: | CZ |
| Mounting type: | Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121522 |
| UPC: | 00754554416069 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RH1921-1EA20 SIRIUS Auxiliary Switch Block
Brand: Siemens
Part Number: 3RH1921-1EA20
SIRIUS Auxiliary Switch Block, Lateral, 24/230 VAC/24/110/220 VDC, 1/3/10 A, 2 Contacts, Size S0 to S12, Snap-On Mount, 10000000/200000 Cycles Operating Cycles, -25 to 60 deg C Operating, Environmental Conditions: -55 to 80 deg C Storage Temperature, For Use With: 3RT1 Motor Contactor, Contactor Relay, Power Contactor, 80 mm H x 10 mm W x 71 mm D
Additional Description: SIEM-3RH1921-1EA20 AUXILIARY SIDE, S0-S3,2NO
Catalog Description: Auxiliary switch block, 2 no, din en50005, laterally, 10 mm screw connection,size s0...s12, for contactors for switching motors, 2-p
3RH1921-1EA20 Item Features
- 10 A at 24/230 VAC, 10 A at 24 VDC, 3 A at 110 VDC, 1 A at 220 VDC
- 10000000 mechanical/200000 electrical cycles
3RH1921-1EA20 Standards
CCC Certified|CSA Certified|UL Listed|EAC Approved|CE Certified|EN 50005|RoHS Compliant|ABS Approved|Bureau Veritas Certified|Lloyds Registered|PRS Certified|RINA Certified|RMRS ApprovedSKU #1933102Part Number #3RH1921-1EA20UNSPSC39121522UPC00754554416069
