Part Number # 3RH21222AP00
SKU # 2412900
3RH21222AP00
Siemens 3RH21222AP00 Contactor Relay
Part Number # 3RH21222AP00
SKU # 2412900
$84.11 / Each
Typical price:$184.00 / Each
Siemens 3RH21222AP00 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RH21222AP00 |
| SKU #: | 2412900 |
| Coil Voltage: | 230 V AC |
| Contact Form: | 2NO-2NC 2 Form A/2 Form B |
| Contact Rating: | 1/10 A at 230/690 V AC, 0.15/10 A at 24/600 V DC |
| Dimensions: | 45 mm W x 73 mm D x 70 mm H |
| Number of Poles: | 4 and 8 |
| Type: | AC Operated |
| UNSPSC: | 39121521 |
| UPC: | 00662643903621 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$84.11 / Each
Typical price:$184.00 / Each
Quantity:
- Siemens, 3RH21222AP00, Contactor Relay, AC Operated, 50/60 Hz Frequency, 230 V AC Coil, 2NO-2NC 2 Form A/2 Form B Contact Form, 1/10 A at 230/690 V AC, 0.15/10 A at 24/600 V DC Contact, 4 and 8 Pole, Snap-On Mounting, Spring Terminal, IP20 Enclosure, -25 to 60 deg C, 45 mm W x 73 mm D x 70 mm H Dimensions
3RH21222AP00 Application
For safety applications3RH21222AP00 Item Features
- 10 A at 230 VAC/3 A at 400 VAC/2 A at 500 VAC/1 A at 690 VAC AC-15, 10 A at 24 VAC/3 A at 110 VAC/1 A at 220 VAC/0.3 A at 440 VAC/0.15 A at 600 VAC DC-12 contact rating
- RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) can be plugged onto all 3RH2 contactor relays from the front for damping opening surges in the coil
- The auxiliary switch block can easily be snapped onto the front of the contactor relays
- Size S00 contact
- High contact stability at low voltages and currents
- Depending on the version, the solenoid coils of the coupling contactor relays are supplied without overvoltage damping
- Without coil circuit
- https://www.youtube.com/watch?v=lvThW3cHXnA\u200b|https://www.youtube.com/watch?v=n2AKmVUVH7Y|https://www.youtube.com/watch?v=r3MRdVQEztw|https://www.youtube.com/watch?v=4AdAIl-ElSk
3RH21222AP00 Standards
EAC Compliant|EMC|RCM|UL Listed|EAC Approved|ABS Approved|Bureau Veritas Certified|Lloyds Registered|PRS Certified|RINA Certified|RMRS Approved|DNV-GL Approved|VDE Approved|IEC 60947-5-1|RoHS CompliantSKU #2412900Part Number #3RH21222AP00UNSPSC39121521UPC00662643903621

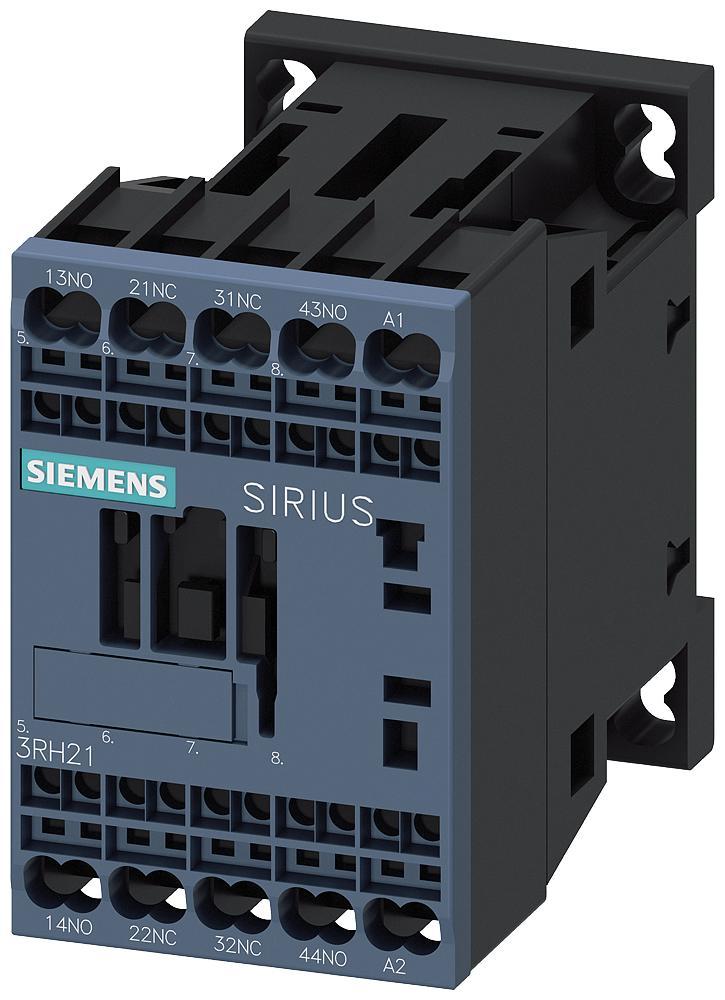

Image provided may only be a representation of final product and may include optional equipment
