Part Number # 3RH21401HB40
SKU # 2437710
Brand: Siemens
3RH21401HB40

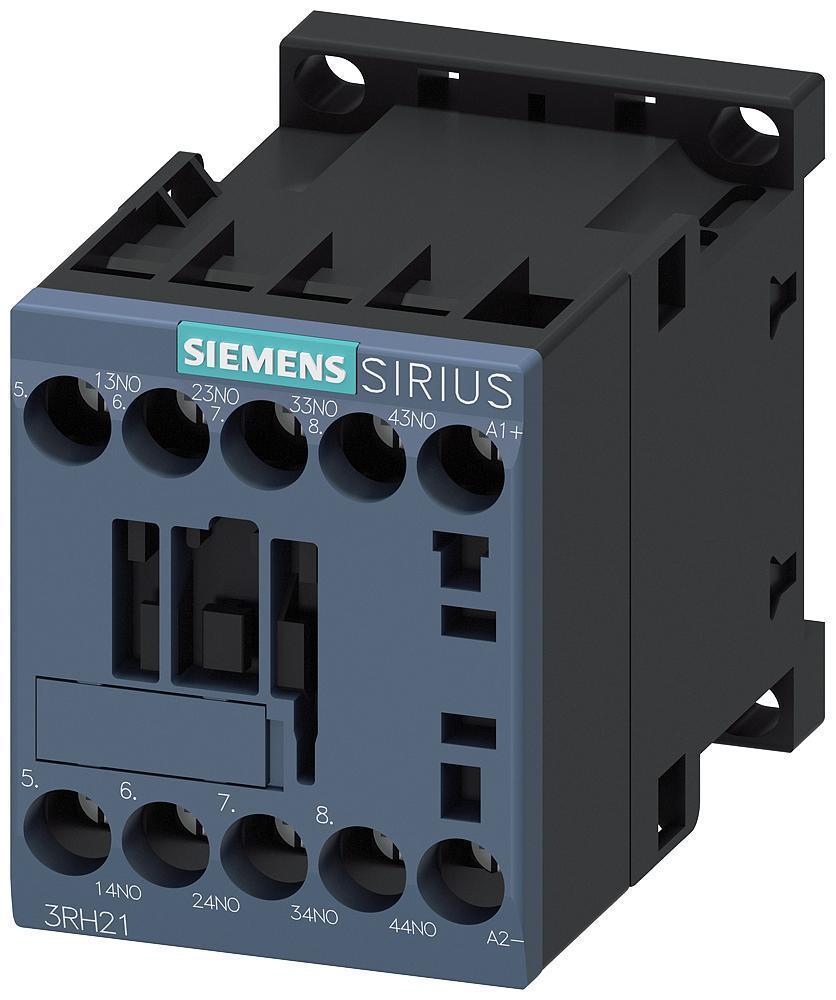

Siemens 3RH21401HB40 Sirius Coupling Contactor Relay
Part Number # 3RH21401HB40
SKU # 2437710
$96.91 / Each
Typical price:$212.00 / Each
Siemens 3RH21401HB40 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RH21401HB40 |
| SKU #: | 2437710 |
| Coil Voltage: | 24 V DC |
| Contact Form: | 4NO 4 Form A |
| Contact Rating: | 10/1 A at 230/690 V AC, 10/0.15 A at 24/600 V DC |
| Dimensions: | 57.5 mm H x 45 mm W x 73 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 4 |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| Terminal Type: | Screw |
| Country of origin: | DE |
| Mounting type: | Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39122331 |
| UPC: | 00662643906882 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$96.91 / Each
Typical price:$212.00 / Each
Quantity:
- Siemens SIRIUS, 3RH21401HB40, Coupling Contactor Relay, 50/60 Hz Frequency, 24 V DC Coil, 4NO 4 Form A Contact Form, 10/1 A at 230/690 V AC, 10/0.15 A at 24/600 V DC Contact, 4 Pole, Snap-On Mounting, Screw Terminal, IP20 Enclosure, -25 to 60 deg C, 57.5 mm H x 45 mm W x 73 mm D Dimensions
3RH21401HB40 Application
For switching auxiliary circuits3RH21401HB40 Item Features
- They are finger safe according to EN 50274
- The 3RH2 contactor relays have screw, ring terminal lug or spring-type terminals
- The auxiliary switch block can easily be snapped onto the front of the contactor relays
- RC elements, varistors, diodes or diode assemblies (combination of a diode and a Zener diode) can be plugged onto all 3RH2 contactor relays from the front for damping opening surges in the coil
- 10 A at 230 VAC/3 A at 400 VAC/2 A at 500 VAC/1 A at 690 VAC AC-15, 10 A at 24 VAC/3 A at 110 VAC/1 A at 220 VAC/0.3 A at 440 VAC/0.15 A at 600 VAC DC-12 contact rating
- Depending on the version, the solenoid coils of the coupling contactor relays are supplied without overvoltage damping
- S00 size of contactor
- High contact stability at low voltages and currents
- Contact rating of auxiliary contacts according to UL is A600, Q600
- The 3RH2 contactor relays are suitable for use in any climate
- https://www.youtube.com/watch?v=lvThW3cHXnA\u200b|https://www.youtube.com/watch?v=n2AKmVUVH7Y|https://www.youtube.com/watch?v=r3MRdVQEztw|https://www.youtube.com/watch?v=4AdAIl-ElSk
3RH21401HB40 Standards
EAC Standard|CCC Certified|UL Listed|EAC Approved|ABS Approved|Bureau Veritas Certified|Lloyds Registered|PRS Certified|RINA Certified|RMRS Approved|DNV-GL Approved|VDE Approved|IEC 60947-4-1|IEC 60947-5-1|RoHS CompliantSKU #2437710Part Number #3RH21401HB40UNSPSC39122331UPC00662643906882
Image provided may only be a representation of final product and may include optional equipment
