Siemens 3RK13156LS410AA0 SIRIUS Motor Starter
Part Number # 3RK13156LS410AA0
SKU # 2357704
3RK13156LS410AA0
Siemens 3RK13156LS410AA0 SIRIUS Motor Starter
Part Number # 3RK13156LS410AA0
SKU # 2357704
Siemens 3RK13156LS410AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RK13156LS410AA0 |
| SKU #: | 2357704 |
| Dimensions: | 215 mm H x 294 mm W x 159 mm D |
| Overload Relay: | Class 10 Electronic |
| Setting: | 1.5 to 12 A |
| Timing: | 85 ms On, 65 ms Off |
| Connection type: | Plug/Connector |
| UNSPSC: | 39121521 |
| UPC: | 00040892547016 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RK13156LS410AA0 SIRIUS Motor Starter
Brand: Siemens
Part Number: 3RK13156LS410AA0
Siemens SIRIUS Motor Starter, Direct On Line, Series: 3RK1, 360 to 440 V AC, 12 A, 5.5 kW Motor, 20.4 to 28.8 VDC Coil, 3 Pole, Setting: 1.5 to 12 A, 85 ms On, 65 ms Off Timing, Plug/Connector Connection, IP65 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, 215 mm H x 294 mm W x 159 mm D Dimensions
Additional Description: SIEM-3RK13156LS410AA0 M200D,ASI BASIC,MECH,1.5-12A,DIR,NO CTL
Catalog Description: SIRIUS MOTOR STARTER M200D AS-I COMMUNICATION AS-INTERFACE DIRECT ON-LINE STARTER, BASIC MECHANICAL SWITCHING 3 400V AC/5,5KW 1,5A...12,00A ELECTR. OVERLOAD PROTECTION THERMISTOR THERMOCLICK / PTC WITHOUT BRAKE CONTACT 2DI AS-I + 2DI / 1DOON DEVICE HAN Q4/2 - HAN Q8/0
3RK13156LS410AA0 Item Features
- Electromechanical or electronic switching version
- Integrated repair switch lockable with three locks (multi-level service)
- Without brake actuation
- Short circuit and overload protection integrated
- Low variance only two device versions up to 5.5 kW thanks to wide range setting
- Quick and failsafe wiring of system and motor cables using ISO 23570 plug-in connector technology (Q4/2 and Q8/0)
- Integrated feeder connector monitoring
- 5.5 kW at 400/500 VAC 50 Hz 3-phase motor power
- Full motor protection through overload protection and a temperature sensor (PTC, TC)
- Plug according to ISO 23570, HAN Q4/2 for main current circuit, connector for auxiliary and control current circuit
- Uniform wiring to the SINAMICS G110D, SINAMICS G110M and SINAMICS G120D frequency inverters and to the ET 200pro distributed I/O system
- Robust and widely used M12 connection method for digital inputs and outputs
- Extensive diagnostics concept using LED
3RK13156LS410AA0 Standards
ECCN: EAR99|WEEE 2012/19/EU|REACH Article No. 33|RoHS Compliant|UL Listed|CCC Certified|CSA Certified|EAC Approved|C-Tick|ASI ApprovedSKU #2357704Part Number #3RK13156LS410AA0UNSPSC39121521UPC00040892547016

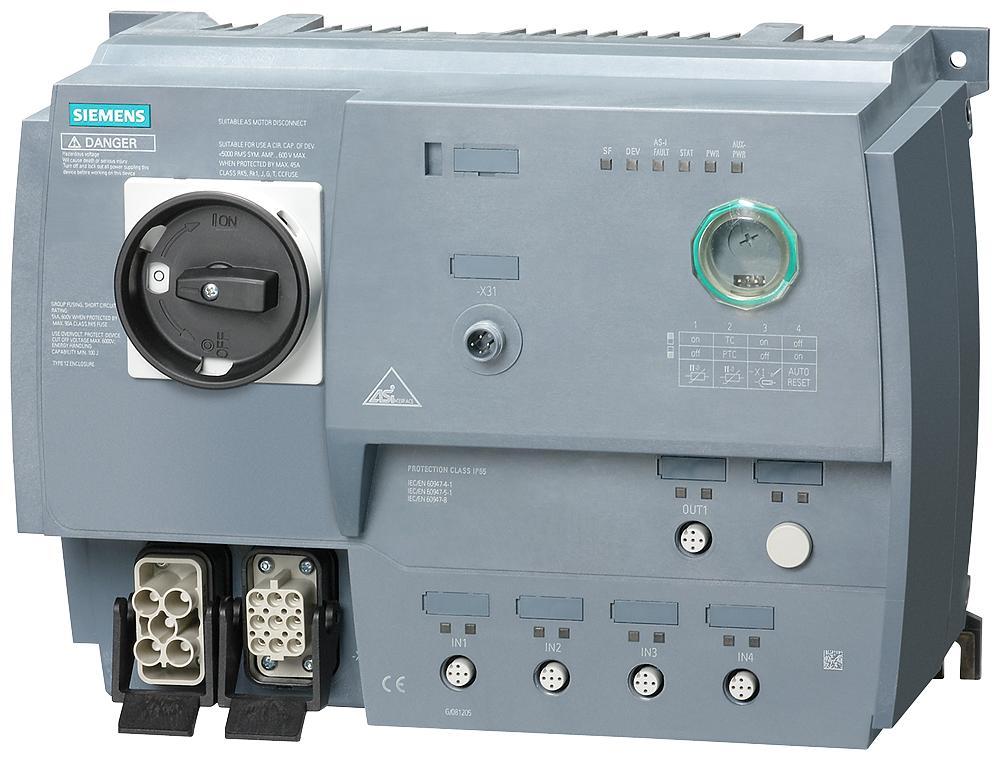

Image provided may only be a representation of final product and may include optional equipment
