Part Number # 3RK13256KS711AA3
SKU # 2398408
3RK13256KS711AA3

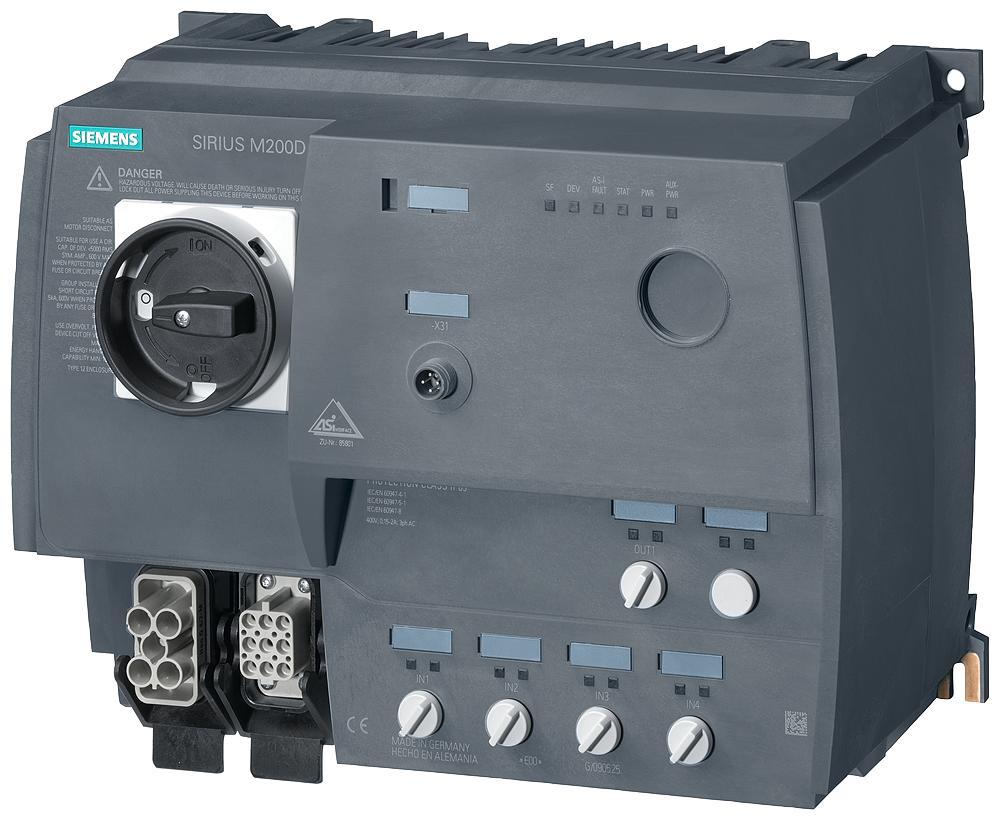

Siemens 3RK13256KS711AA3 Motor Starter
Part Number # 3RK13256KS711AA3
SKU # 2398408
Siemens 3RK13256KS711AA3 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RK13256KS711AA3 |
| SKU #: | 2398408 |
| Amperage Rating: | 2 A |
| Coil Voltage: | 24 V DC, 24 VDC |
| Dimensions: | 294 mm W x 159 mm D x 215 mm H |
| Enclosure Type: | IP65 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 55 deg C |
| Overload Relay: | Electronic Solid-State/Full Motor Protection |
| Phase: | 3 |
| Setting: | 0.15 to 2 A |
| Timing: | 25 ms On/35 ms Off |
| Type: | Reversing |
| Wattage: | 0.75 kW |
| Connection type: | Plug |
| Country of origin: | DE |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121521 |
| UPC: | 00662643543797 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RK13256KS711AA3 Motor Starter
Brand: Siemens
Part Number: 3RK13256KS711AA3
Siemens Motor Starter, Reversing, 400 VAC, 2 A, 0.75 kW Wattage, 24 VDC Coil, 3 Pole, Setting: 0.15 to 2 A, 25 ms On/35 ms Off Timing, 3 ph, Plug Connection, Electronic Solid-State/Full Motor Protection Overload Relay, IP65 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, 294 mm W x 159 mm D x 215 mm H Dimensions
Additional Description: SIEM-3RK13256KS711AA3 M200D,ASI STD,ELC,0.15-2A,REV,NO CTL,BRK
Catalog Description: SIRIUS motor starter M200D AS-i Communication AS-Interface Reversing starter standard Electronic switching AC-3, 0.75KW / 400 V 0.15 A...2.00 A Electronic overload protection Thermistor THERMOCLICK / PTC with brake contact 400 V AC 4 DI / 1 DO AS-i Han Q4/2 - Han Q8/0
3RK13256KS711AA3 Includes
400 VAC Brake Contact3RK13256KS711AA3 Item Features
- Standard electronic switching
- M200D technology module reversing motor starter
- AS-I communication
3RK13256KS711AA3 Standards
CCC Compliant|CSA Certified|CE EG-Konf|EAC Compliant|UL ListedSKU #2398408Part Number #3RK13256KS711AA3UNSPSC39121521UPC00662643543797
Image provided may only be a representation of final product and may include optional equipment
