Part Number # 3RK1400-1BQ20-0AA3
SKU # 2133623
Image provided may only be a representation of
final product and may include optional equipment
3RK1400-1BQ20-0AA3

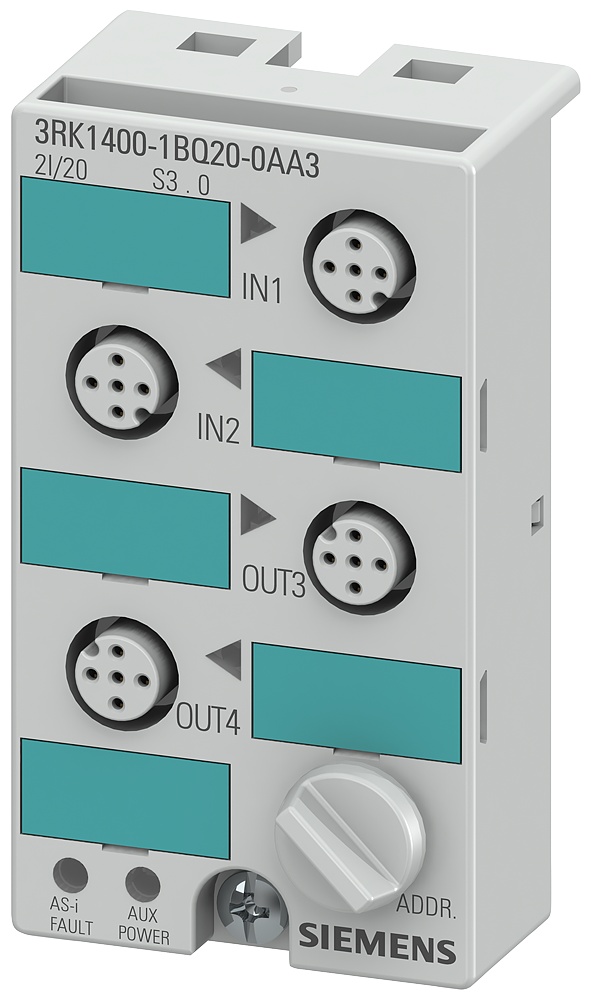

Siemens 3RK1400-1BQ20-0AA3 Digital I/O Module
Part Number # 3RK1400-1BQ20-0AA3
SKU # 2133623
Siemens 3RK1400-1BQ20-0AA3 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RK1400-1BQ20-0AA3 |
| SKU #: | 2133623 |
| Amperage Rating: | 270 |
| Dimensions: | 30 mm L x 45 mm W x 80 mm H, 80 mm H x 45 mm W x 30 mm D |
| Series: | AS-i K45 |
| Temperature Rating (Degrees F): | -25 to 70 deg C, -25 to 85 |
| Terminal Type: | M12, M12 Screw |
| Type: | AS-Interface Compact, Compact |
| Country of origin: | DE |
| Number of inputs: | 2 |
| Number of outputs: | 2 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 32151705 |
| UPC: | 00754554629537 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RK1400-1BQ20-0AA3 Digital I/O Module
Brand: Siemens
Part Number: 3RK1400-1BQ20-0AA3
Siemens Digital I/O Module, Compact, Series: AS-i K45, 2 Inputs, 2 Outputs, 24 VDC, M12 Terminal, -25 to 70 deg C, 80 mm H x 45 mm W x 30 mm D Dimensions
Additional Description: SIEM-3RK1400-1BQ20-0AA3 AS-I MOD,K45,2IN/2OUT,200MA/1A,ELECTRONC
Catalog Description: As-interface compact mod. k45, IP67, digital, 2 in-/outputs, 2x1 input, 200ma max., pnp, 2 x 1outp., electr.,1.5a,DC 24v 3a max. for all outputs 4 x m12-sockets
3RK1400-1BQ20-0AA3 Specifications
- IP67 degree of protection
- 3RK digital I/O modules for operation in the field
- Yellow LED green/red dual LED display
- Standard rail mounting/wall mounting using mounting plate for K45 compact module
- Standard slave, PNP transistor
3RK1400-1BQ20-0AA3 Standards
CSA Certified|UL Listed|EAC Approved|RCM Approved|CE Certified|ABS Approved|LRS Listed|PRS Certified|RINA Certified|RMRS Approved|RoHS Compliant|REACH CompliantSKU #2133623Part Number #3RK1400-1BQ20-0AA3UNSPSC32151705UPC00754554629537
