Part #:3RK2400-1DQ00-0AA3
SKU #: 2371761
Key Features
Part #:3RK2400-1DQ00-0AA3
SKU #: 2371761
Brand: Siemens
Amperage Rating: 270, 270 mA
Dimensions: 152 mm H x 60 mm W x 29 mm D
Series: 3RK
Temperature Rating (Degrees F): -25 to 85, -25 to 85 deg C
Terminal Type: M12 Screw, Screw
- Simple connection of multiple modules using the device connector
- Can select between AS-I/Uaux sensor supply
- Device connector enables easy wiring of multiple modules

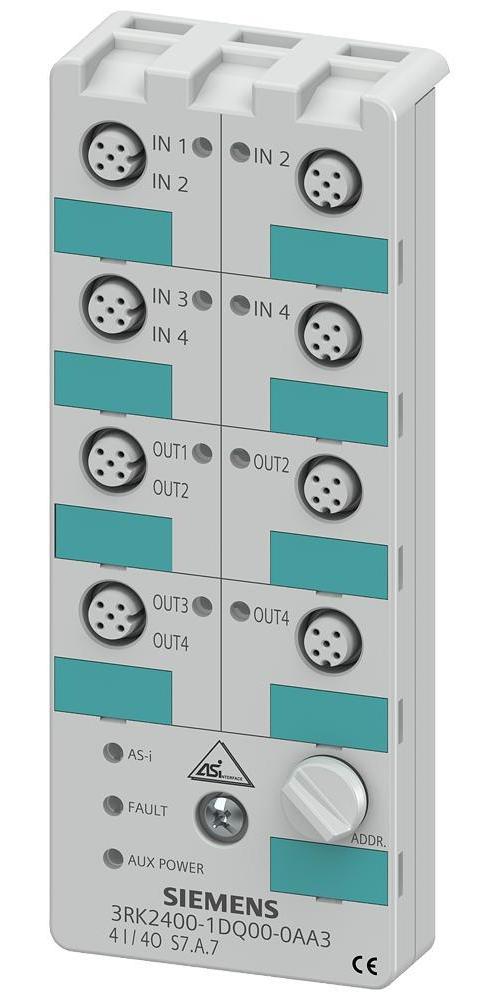

Siemens 3RK2400-1DQ00-0AA3 AS-Interface SlimLine Compact Digital I/O Module
Siemens AS-Interface SlimLine Compact Digital I/O Module, A/B Slave Binary Constant, Series: 3RK, 4 Inputs, 4 Outputs, 26.5 to 31.6 VDC, 270 mA, Screw Terminal, -25 to 85 deg C, 152 mm H x 60 mm W x 29 mm D Dimensions
Additional Description: SIEM-3RK2400-1DQ00-0AA3 K60,IP65,A/B-SLAVE(SPEC3.0)4DI/4DO, PNP
Catalog Description: As-i compact module k60 digital a/b slave, 4 di/4 dq, IP67 4 x input, maximum 200 ma 4 x output, 2 a, 24 V DC maximal 4 a for all outputs 8 x m12 socket y-ii assignment mounting plate 3rk1901-0ca00 must be ordered separately
