3RR21431AW30

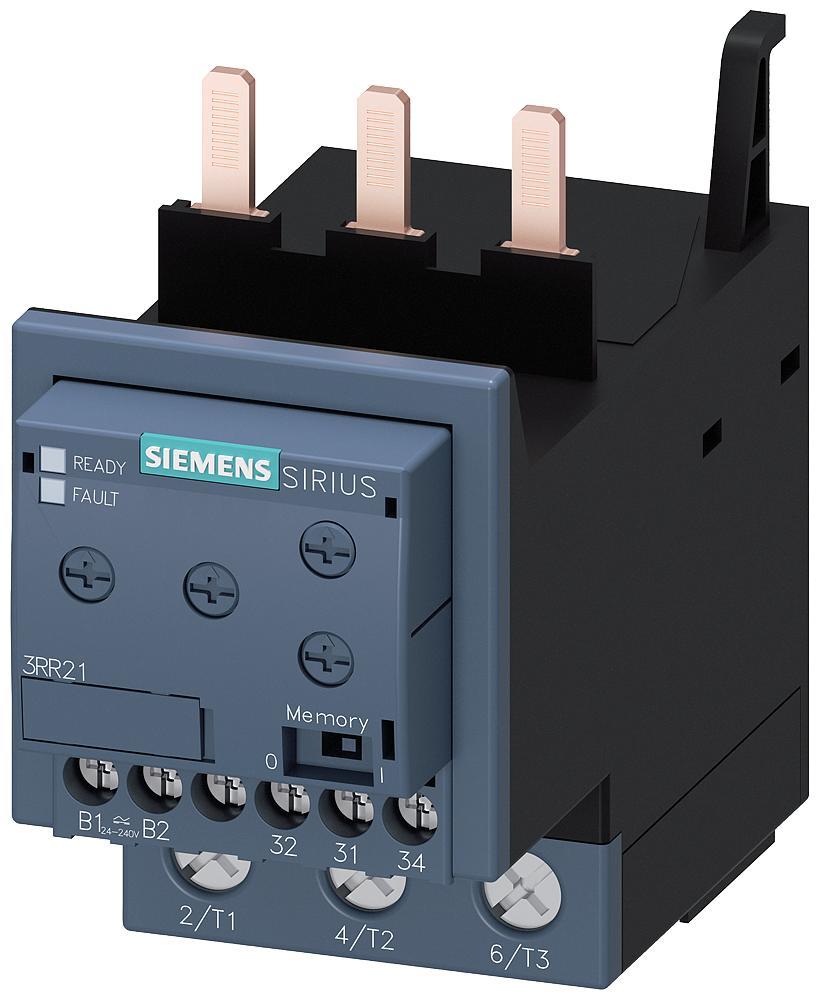

Siemens 3RR21431AW30
Part Number # 3RR21431AW30
SKU # 2467810
$418.47 / Each
Typical price:$550.00 / Each
Siemens 3RR21431AW30 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RR21431AW30 |
| SKU #: | 2467810 |
| Amperage Rating: | 8 to 80 A |
| Contact Configuration: | 1CO |
| Dimensions: | 99 mm H x 55 mm W x 112 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50 to 60 Hz |
| Response Time: | 0 to 60 s |
| Series: | 3RR21 |
| Type: | 2-Phase Adjustable Analog Basic |
| UNSPSC: | 39121521 |
| UPC: | 00887621915278 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$418.47 / Each
Typical price:$550.00 / Each
Quantity:
- Siemens SIRIUS Current Monitoring Relay, 2-Phase Adjustable Analog Basic, Series: 3RR21, 24 to 240 V AC/DC, 8 to 80 A, 50 to 60 Hz Frequency, 1CO Contact Configuration, Surface Mounting, Screw Terminal, 0 to 60 s Response, IP00/IP20 Enclosure, 99 mm H x 55 mm W x 112 mm D Dimensions
3RR21431AW30 Application
For monitoring of overshoot/undershoot current, apparent current, phase failure and wire break with or without error log3RR21431AW30 Item Features
- Direct mounting on 3RT2 contactors, i.e. no additional wiring overhead in the main circuit
- Optimally matched to the technical characteristics of 3RT2 contactors, no separate current transformers required
- Display of actual values and status messages
- Easy determination of threshold values by means of direct reference to actually measured values under set point load
- Only one device is required for motor monitoring along the entire torque curve
3RR21431AW30 Standards
UL Listed|CCC Marked|CSA Certified|EAC Certified|CE Certified|RCM C-Tick Certified|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|WEEE 2012/19/EU|REACH Article 33SKU #2467810Part Number #3RR21431AW30UNSPSC39121521UPC00887621915278
Image provided may only be a representation of final product and may include optional equipment
