Part Number # 3RS70051FW00
SKU # 2352049
3RS70051FW00

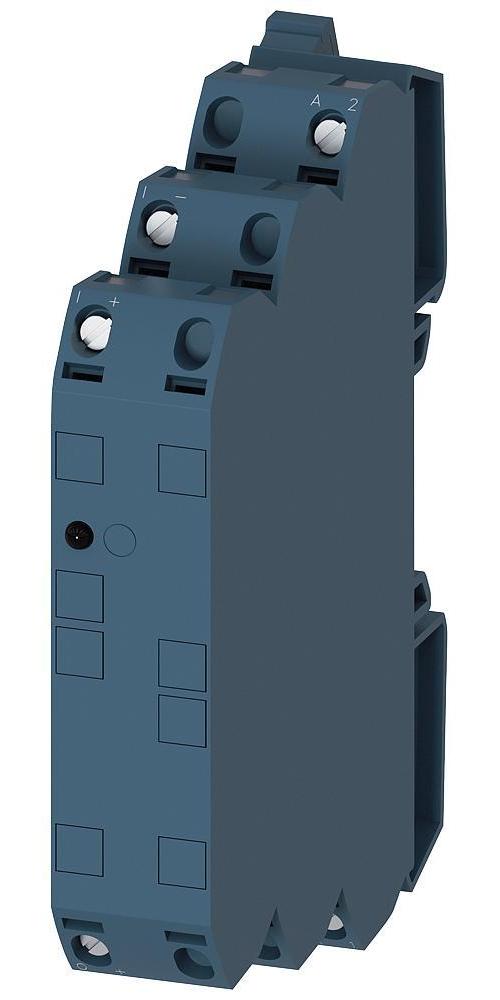

Siemens 3RS70051FW00 Signal Converter
Part Number # 3RS70051FW00
SKU # 2352049
Siemens 3RS70051FW00 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RS70051FW00 |
| SKU #: | 2352049 |
| Dimensions: | 93 mm H x 17.5 mm W x 72.5 mm D |
| Input Type: | Voltage/Current |
| Input Voltage: | 0 to 10, 30 V AC/DC, 30 VAC/VDC |
| Response Time: | 6, 6 ms |
| Specifications: | 24 to 240 VAC/VDC, 50/60 Hz, Snap-On Mount |
| Type: | Multi-Range |
| Input current: | 0 to 20/4 to 20, 4 to 20 mA |
| Output current: | 0 to 20/4 to 20, 4 to 20 mA |
| Output type: | Voltage/Current |
| Output voltage: | 0 to 10, 0 to 10 V AC/DC, 0 to 10 VAC/VDC |
| UNSPSC: | 39121008 |
| UPC: | 00804766215681 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RS70051FW00 Signal Converter
Brand: Siemens
Part Number: 3RS70051FW00
Siemens Signal Converter, Multi-Range, 3 Channels, 30 VAC/VDC Input, 0 to 10 VAC/VDC Output, 4 to 20 mA Input Current, 4 to 20 mA Output Current, 0.5 W Power, Screw Terminal Connection, Snap-On Mounting, 6 ms Response, 0.1 % Accuracy, Specifications: Snap-On Mount, 93 mm H x 17.5 mm W x 72.5 mm D Dimensions
Additional Description: SIEM-3RS70051FW00 SWTCHBL MULTI-RANGE CNVRTR, 24-240VAC/DC
Catalog Description: SIGNAL CONVERTER 24-240 V UC, 3-WAY ISOLATION IN 0 TO 10 V, 0/4 TO 20 MA OUT 0 TO 10 V, 0/4 TO 20 MA SCREW TERMINAL
3RS70051FW00 Application
For isolation of analog signals, conversion of analog signals to a frequency, conversion of non-standard signals to standard signals and overvoltage protection of analog inputs3RS70051FW00 Item Features
- Simplified logistics and inventory management thanks to few device variants
- Input, output and supply voltage have no potential link as every circuit is isolated from the others
- Easy-to-read laser inscription
- Appearance consistent with other Siemens devices in control cabinet
- Resistant to dirt and yellowing
3RS70051FW00 Standards
CE Certified|CSA Certified|EAC Certified|UL ListedSKU #2352049Part Number #3RS70051FW00UNSPSC39121008UPC00804766215681
Image provided may only be a representation of final product and may include optional equipment
