3RS70062FW00

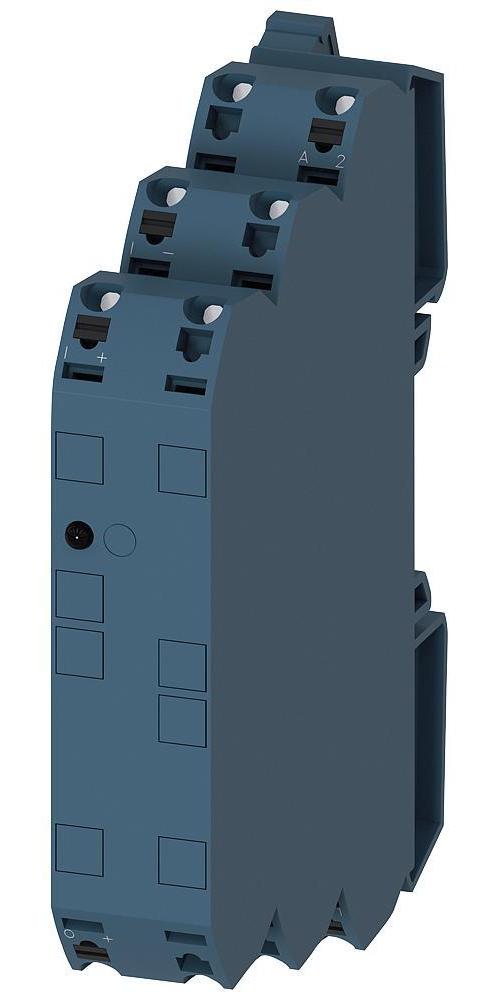

Siemens 3RS70062FW00 SIRIUS Signal Converter
Part Number # 3RS70062FW00
SKU # 2381616
$653.06 / Each
Typical price:$802.00 / Each
Siemens 3RS70062FW00 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RS70062FW00 |
| SKU #: | 2381616 |
| Dimensions: | 93 mm H x 17.5 mm W x 72.5 mm D |
| Input Type: | Current/Voltage |
| Input Voltage: | 0 to 60 mV, 0 to 100 mV, 0 to 300 mV, 0 to 500 mV, 0 to 1 V, 0 to 2 V, 0 to 5 V, 0 to 20 V, 2 to 10 V |
| Response Time: | 6 ms |
| Series: | 3RS70 |
| Specifications: | 24 to 240 V AC/DC Supply, 24 to 240 VAC/VDC Supply |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| Type: | 3-Way Separation |
| Connection type: | Spring Loaded/Push-In |
| Country of origin: | DE |
| Input current: | 0 to 5 mA, 0 to 10 mA, 0 to 20 mA, 4 to 20 mA, +/-5 mA, +/-20 mA |
| Mounting type: | Snap-On |
| Output current: | 0 to 20 mA, 4 to 20 mA |
| Output type: | Voltage |
| Output voltage: | 0 to 10 V DC, 0 to 10 VDC |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121008 |
| UPC: | 00804766215780 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$653.06 / Each
Typical price:$802.00 / Each
Quantity:
- Siemens SIRIUS Signal Converter, 3-Way Separation, Series: 3RS70, Current/Voltage Input, Voltage Output, 0 to 60 mV, 0 to 100 mV, 0 to 300 mV, 0 to 500 mV, 0 to 1 V, 0 to 2 V, 0 to 5 V, 0 to 20 V, 2 to 10 V Input, 0 to 10 VDC Output, 0 to 5 mA, 0 to 10 mA, 0 to 20 mA, 4 to 20 mA, +/-5 mA, +/-20 mA Input Current, 0 to 20 mA, 4 to 20 mA Output Current, 0.5 W Power, Spring Loaded/Push-In Connection, Snap-On Mounting, -25 to 60 deg C, 6 ms Response, 0.1 % Accuracy, Specifications: 24 to 240 V AC/DC Supply, 93 mm H x 17.5 mm W x 72.5 mm D
3RS70062FW00 Application
Electrical Separation, Conversion of Normalized and Non-Normalized Signals, Amplification and Impedance Adaptation, Conversion to a Frequency for Processing by a Digital Input, Overvoltage and EMC Protection, Short Circuit Protection of the Outputs Applications3RS70062FW00 Item Features
- Narrow width
- Easy-to-set universal converters
- Converters with frequency output
- All ranges are fully calibrated
- Universal family of devices the perfect solution for every application
- Integrated manual/automatic software itch with a set point generator
- Outputs are short circuit proof
- Up to 30 V protected against damage caused by wiring errors
- 0.1 % relative metering precision, 0.05 % relative linearity deviation
- universal converters, active
3RS70062FW00 Standards
CSA Certified|UL Listed|EAC Approved|CE Certified|IEC 61000-6-4|IEC 61000-6-2|IEC 60381-1/2SKU #2381616Part Number #3RS70062FW00UNSPSC39121008UPC00804766215780
