3RT1055-6NB36

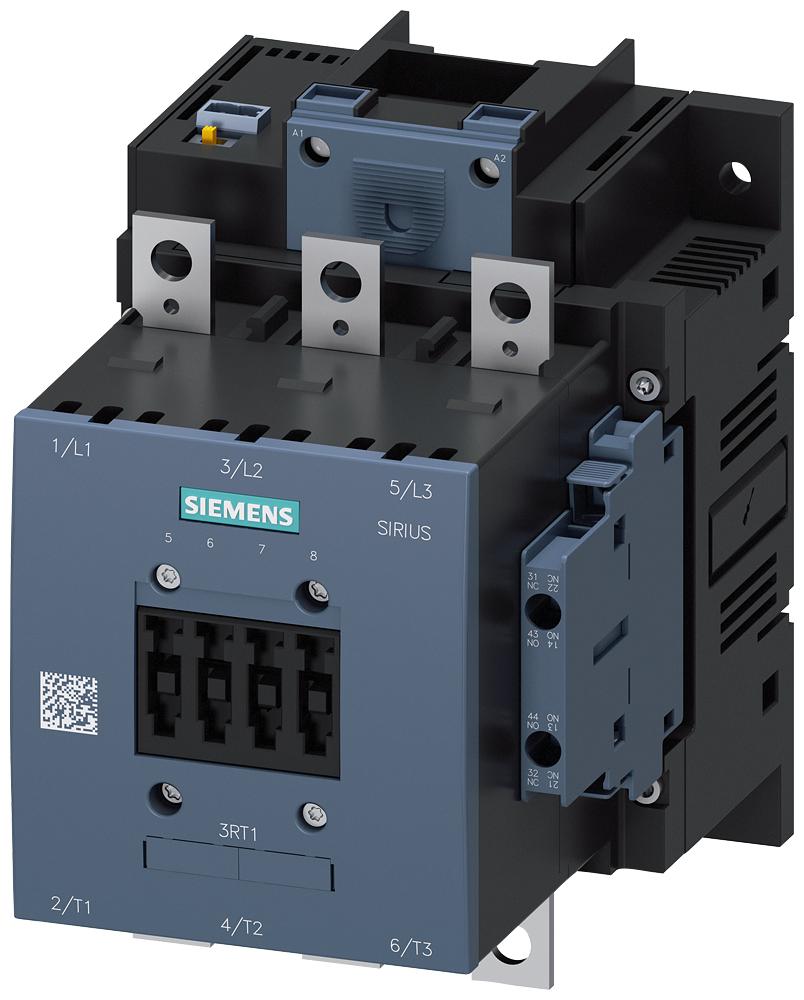

Siemens 3RT1055-6NB36 SIRIUS Power Contactor
Part Number # 3RT1055-6NB36
SKU # 2301255
$1021.11 / Each
Typical price:$2166.00 / Each
Siemens 3RT1055-6NB36 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT1055-6NB36 |
| SKU #: | 2301255 |
| Coil Power Rating: | 150, 4.4/280 VA, 2.8/320 W |
| Coil Voltage: | 21 to 27.3, 21 to 27.3 V AC/DC, 21 to 27.3 VAC/VDC |
| Contact Configuration: | 2NO-2NC, 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 172 mm H x 120 mm W x 170 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | S6 |
| Terminal Type: | Busbar |
| Type: | 3-Phase, Standard |
| Wattage: | 75, 75 kW |
| Country of origin: | DE |
| Mounting type: | Threaded |
| Power factor: | 0.5/0.8, 0.8 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00754554773643 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1021.11 / Each
Typical price:$2166.00 / Each
Quantity:
- SIRIUS Contactor, Standard, 21 to 27.3 V AC/DC Coil, 150 A Maximum Load Current, 4.4/280 VA, 2.8/320 W Coil, 3 Pole, 50/60 Hz Frequency, 75 kW Wattage, 2NO-2NC Contact Configuration, 4 Auxiliary Contacts, Power Factor: 0.5/0.8, S6 Size, Busbar Terminal, IP00/IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Threaded Mounting, 172 mm H x 120 mm W x 170 mm D Dimensions
3RT1055-6NB36 Application
For switching motors3RT1055-6NB36 Item Features
- 280 VA at 50 Hz (pick-up), 4.4 VA at 50 Hz (holding) magnet coil at AC, 320 W (closing), 2.8 W (holding) magnet coil at DC
- 0.8 at 50 Hz (closing), 0.5 at 50 Hz (holding) power factor
3RT1055-6NB36 Standards
RoHS Compliant|REACH Article 33|CCC Certified|CSA Certified|UL Listed|EAC Approved|CE Certified|ABS Approved|RMRS Approved|DNV-GL ApprovedSKU #2301255Part Number #3RT1055-6NB36UNSPSC39121529UPC00754554773643
