3RT1055-6NP36
Siemens 3RT1055-6NP36 SIRIUS IEC Contactor
Part Number # 3RT1055-6NP36
SKU # 2347177
Siemens 3RT1055-6NP36 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT1055-6NP36 |
| SKU #: | 2347177 |
| Coil Power Rating: | 280 VA Pickup, 4.8 VA Holding |
| Coil Voltage: | 200 V AC/277 V DC |
| Size: | Size S6 |
| Power factor: | 0.8 Closing, 0.6 Holding |
| UNSPSC: | 39121529 |
| UPC: | 00754554773667 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT1055-6NP36 SIRIUS IEC Contactor
Brand: Siemens
Part Number: 3RT1055-6NP36
Siemens SIRIUS IEC Contactor, Standard, 200 V AC/277 V DC Coil, 150 A Maximum Load Current, 280 VA Pickup, 4.8 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, 75 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 4 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.8 Closing, 0.6 Holding, Size S6 Size, Busbar Terminal, IP00 Enclosure, 10000000 Cycles Contactor/Typical Operating Cycles, -25 to 60 deg C Operating, Panel Mounting, 172 mm H x 120 mm W x 170 mm D Dimensions
Additional Description: SIEM-3RT1055-6NP36 CONTACTOR S6 150A 200-277VUC 3P BAR
Catalog Description: Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 200 - 277 AC/DC Coil Frame Size S6,150A Panel Mount 2 NO ( & ) 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 5
3RT1055-6NP36 Application
For switching motors3RT1055-6NP36 Item Features
- 280 VA at 50 Hz (pick-up), 4.4 VA at 50 Hz (holding) magnet coil at AC, 320 W (closing), 2.8 W (holding) magnet coil at DC
- 10000000 of the contactor/typical, 10000000 of the contactor with added auxiliary switch block/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block/typical 1/hr
- Without suppression lugs
- https://www.youtube.com/watch?v=lvThW3cHXnA\u200b|https://www.youtube.com/watch?v=TjGCthgMlXo|https://www.youtube.com/watch?v=r3MRdVQEztw|https://www.youtube.com/watch?v=4AdAIl-ElSk
3RT1055-6NP36 Standards
UL File No. E31519 (Vol 11 Sec 5)|RoHS Compliant|REACH Article 33|CSA Certified|UL Listed|EAC Approved|ABS Approved|RMRS Approved|DNV-GL ApprovedSKU #2347177Part Number #3RT1055-6NP36UNSPSC39121529UPC00754554773667

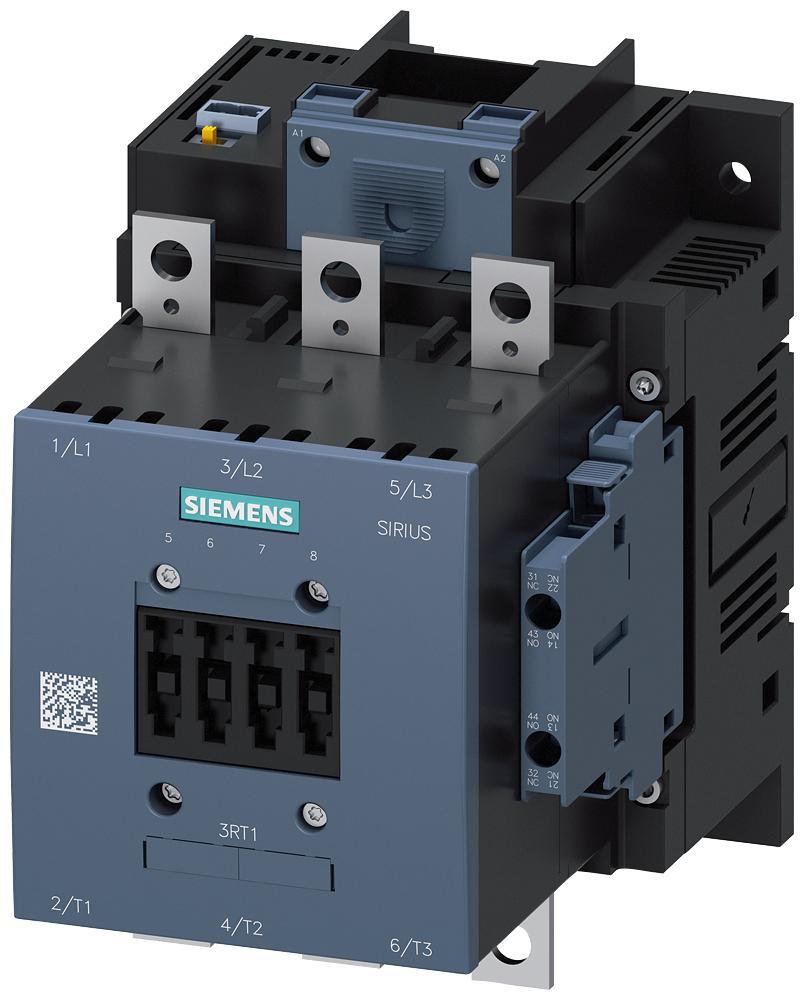

Image provided may only be a representation of final product and may include optional equipment
