Brand: Siemens

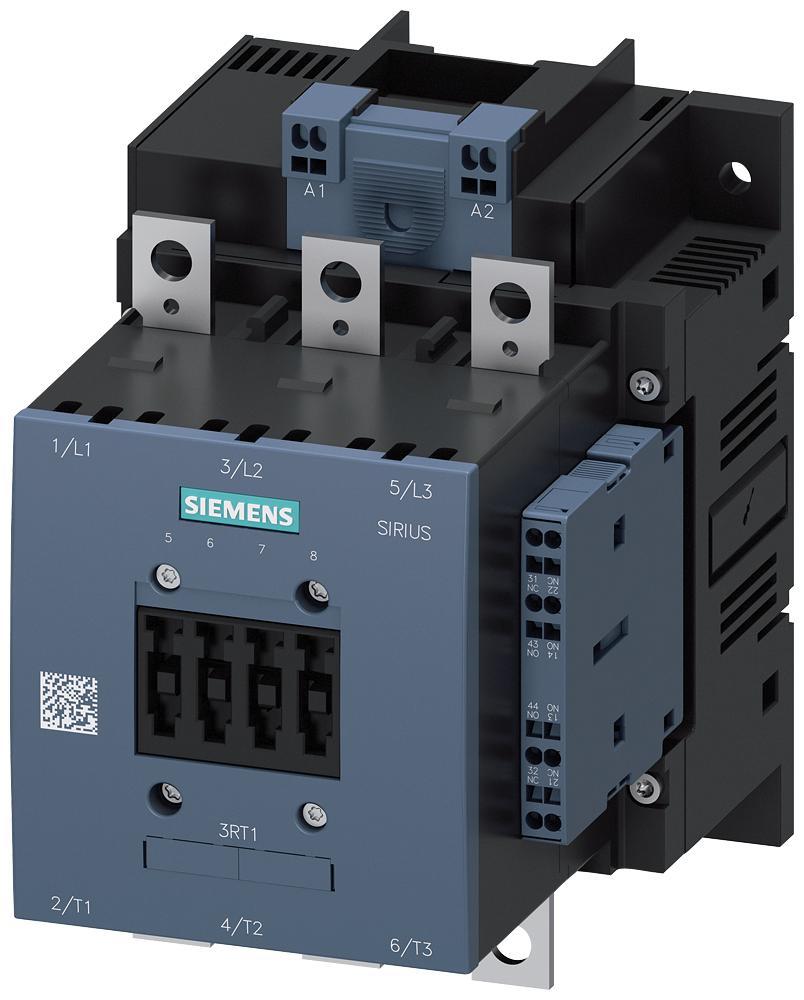

Siemens 3RT10552AP36 Sirius Power Contactor
Image Disclaimers Message
Brand: Siemens
Siemens 3RT10552AP36 Sirius Power Contactor
Brand: Siemens
Siemens 3RT10552AP36 Sirius Power Contactor
Part #:3RT10552AP36
SKU #: 2407111
$792.00/EA
Key Features
Part #:3RT10552AP36
SKU #: 2407111
Brand: Siemens
Coil Power Rating: 75 kW at 400 V 3-Phase
Coil Voltage: 220 to 240 VAC/VDC
Contact Configuration: 3NO
Contact Rating: A600/Q600
Dimensions: 172 mm H x 120 mm W x 170 mm D
$792.00/EA
- 300 VA pickup, 5.8 VA holding coil power
- 0.9 closing, 0.8 holding power factor
Specifications
Brand: Siemens
Coil Power Rating: 75 kW at 400 V 3-Phase
Coil Voltage: 220 to 240 VAC/VDC
Contact Configuration: 3NO
Contact Rating: A600/Q600
Dimensions: 172 mm H x 120 mm W x 170 mm D
Enclosure Type: IP00/IP20
Frequency Rating: 50/60 Hz
Number of Auxiliary Contacts: 2NO-2NC
Number of Poles: 3
Operating Cycles: 10000000
Operating Temperature: -25 to 60 deg C
Series: 3RT10
Size: S6
Terminal Type: Busbar/Spring Loaded
Type: 3-Phase Standard
Wattage: 300 VA Pickup, 5.8 VA Holding, 360 W DC Closing, 5.2 W DC Holding
Country of origin: DE
Mounting type: Threaded
Power factor: 0.8/0.9
Manufacturer Name: Siemens
UNSPSC: 39121529
UPC: 00887621053185
Item Features
Item FeaturesCCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|RMRS Approved|DNV-GL Approved|DIN EN 81346-2|DIN 40719|IEC 204-2|IEC 750|WEEE 2012/19/EU|REACH Article No. 33
