Part Number # 3RT10561AB36
SKU # 2419599
3RT10561AB36

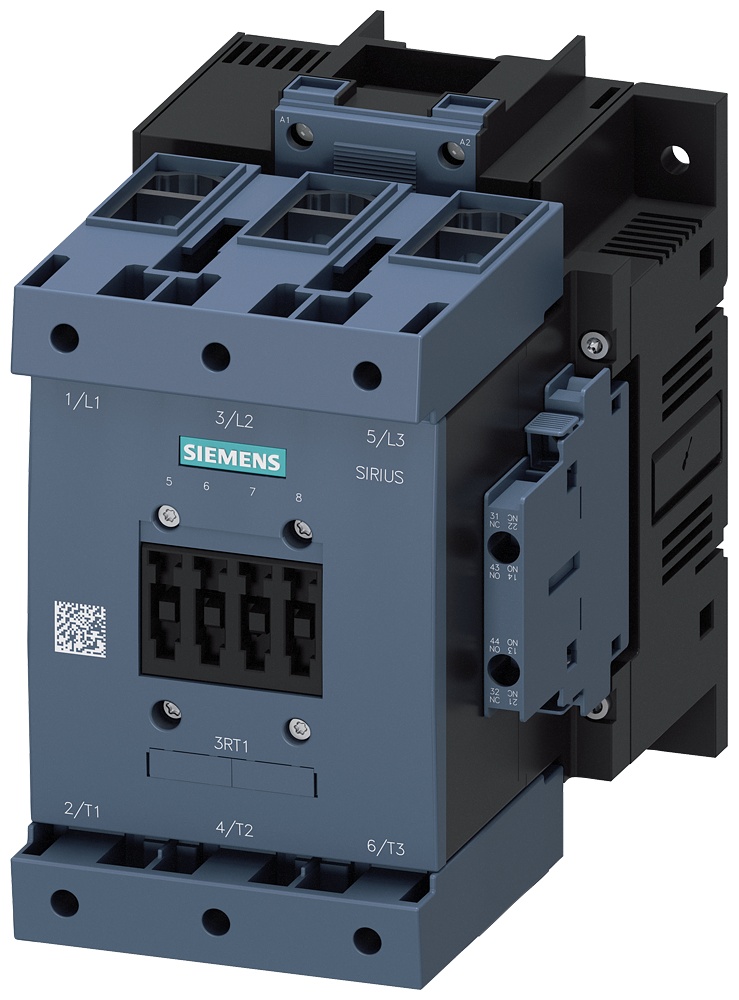

Siemens 3RT10561AB36 Power Contactor
Part Number # 3RT10561AB36
SKU # 2419599
Siemens 3RT10561AB36 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT10561AB36 |
| SKU #: | 2419599 |
| Coil Power Rating: | 300 VA Pick-Up, 5.8 VA Holding, 360 W Closing and 5.2 W Holding |
| Coil Voltage: | 23 to 26 V AC/DC, 23 to 26 VAC/VDC |
| Contact Configuration: | 2NO-2NC |
| Dimensions: | 120 mm W x 170 mm D x 172 mm H |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT1 |
| Size: | 6 |
| Terminal Type: | Screw |
| Type: | Standard |
| Wattage: | 90 kW |
| Connection type: | Bus Bar |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded |
| Power factor: | 0.9 Closing/0.8 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00887621457181 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT10561AB36 Power Contactor
Brand: Siemens
Part Number: 3RT10561AB36
Siemens Power Contactor, Standard, Series: 3RT1, 23 to 26 VAC/VDC Coil, 185 A Maximum Load Current, 300 VA Pick-Up, 5.8 VA Holding, 360 W Closing and 5.2 W Holding Coil Power Rating, 3 Pole, 50/60 Hz, 90 kW, 2NO-2NC, Power Factor: 0.9 Closing/0.8 Holding, Busbar, 6, Screw Terminal, IP00/IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Threaded/Surface Mount, 120 mm W x 170 mm D x 172 mm H
Additional Description: SIEM-3RT10561AB36 CONTACTOR AC3,90KW/400V 2NO+2NC UC23-26V
Catalog Description: CONTACTOR, 90KW/400V/AC-3 AC(40...60HZ)/DC OPERATION UC 23-26V AUX. CONTACTS 2NO+2NC 3-POLE, SIZE S6E BAR CONNECTIONS CONVENTIONAL OPERATING MECHAN. WITH BOX TERMINAL 3RT19 56-4G TILL 120 MM
3RT10561AB36 Item Features
- 10000000 cycles mechanical/5000000 cycles electrical
- Conventional with 2 box terminals 3RT19 56-4G up to 120 mm drive
3RT10561AB36 Standards
ABS Approved|CCC Certified|CE Certified|CSA Certified|DNV-GL Approved|EAC Certified|RCM Approved|RMRS Approved|UL ListedSKU #2419599Part Number #3RT10561AB36UNSPSC39121529UPC00887621457181

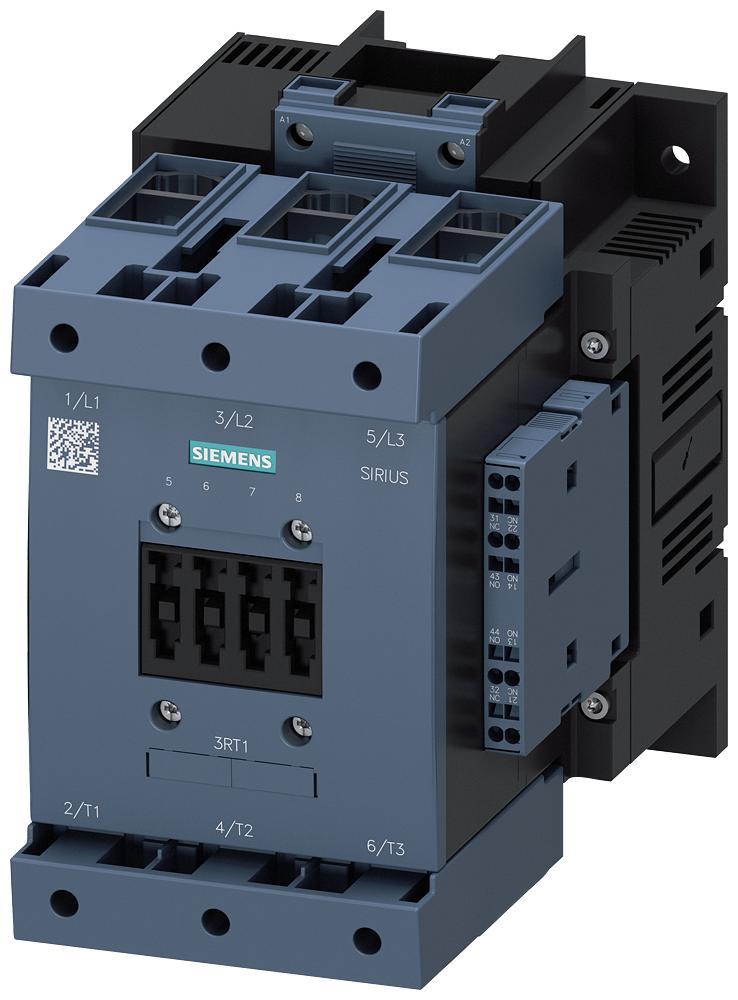

Image provided may only be a representation of final product and may include optional equipment
