Part Number # 3RT10566SF36
SKU # 2445468
Image Disclaimers Message
Brand: Siemens
3RT10566SF36

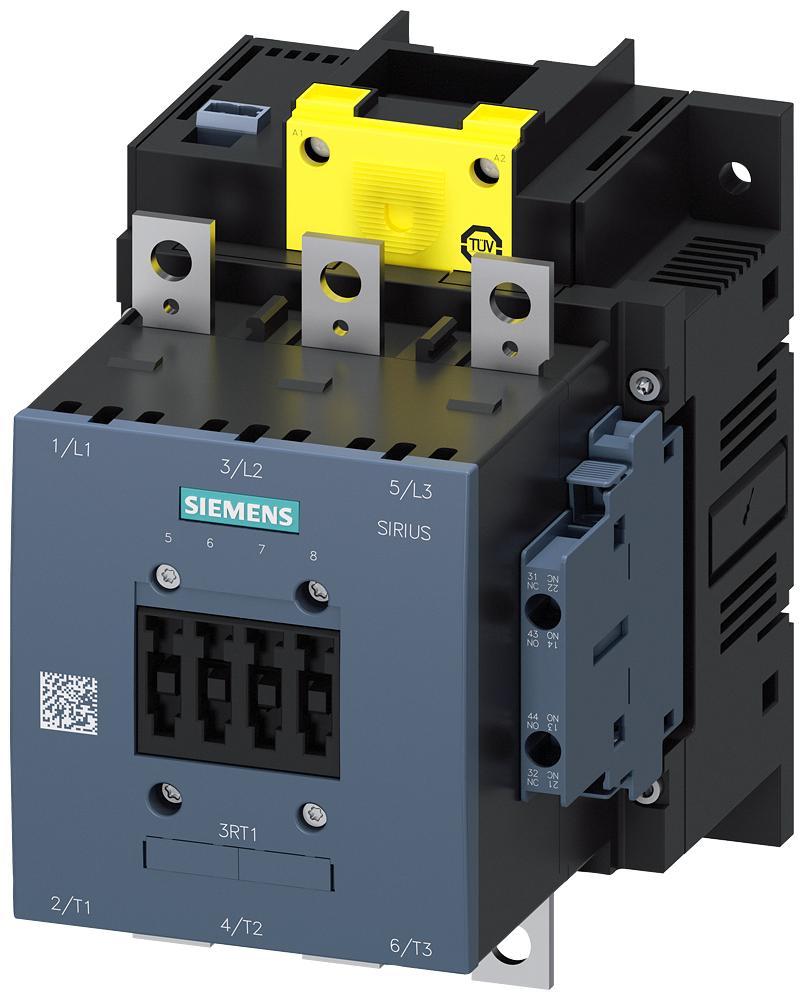

Siemens 3RT10566SF36
Part Number # 3RT10566SF36
SKU # 2445468
$1400.14 / Each
Typical price:$2970.00 / Each
Siemens 3RT10566SF36 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT10566SF36 |
| SKU #: | 2445468 |
| Coil Power Rating: | 90 kW at 400 V 3-Phase |
| Coil Voltage: | 96 to 127 V AC/DC, 96 to 127 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/P600 |
| Dimensions: | 172 mm H x 120 mm W x 170 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT10 |
| Size: | S6 |
| Terminal Type: | Busbar/Screw |
| Type: | 3-Phase Standard |
| Wattage: | 280 VA Pickup, 4.4 VA Holding, 320 W DC Closing, 2.8 W DC Holding |
| Country of origin: | DE |
| Mounting type: | Threaded |
| Power factor: | 0.5/0.8 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766826702 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1400.14 / Each
Typical price:$2970.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT10, 96 to 127 V AC/DC Coil, 185 A Maximum Load Current, 90 kW at 400 V 3-Phase Coil Power Rating, 3 Poles, 50/60 Hz, 280 VA Pickup, 4.4 VA Holding, 320 W DC Closing, 2.8 W DC Holding, 3NO, 2NO-2NC Auxiliary Contacts, A600/P600 Contact, Power Factor: 0.5/0.8, S6, Busbar/Screw Terminal, IP00/IP20, 10000000 Operating Cycles, -25 to 60 deg C Operating, Threaded Mount, 172 mm H x 120 mm W x 170 mm D
3RT10566SF36 Item Features
- 280 VA pickup, 4.4 VA holding coil power
- 0.8 closing, 0.5 holding power factor
3RT10566SF36 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|DIN EN 81346-2|DIN 40719|IEC 204-2|IEC 750|WEEE 2012/19/EU|REACH Article No. 33SKU #2445468Part Number #3RT10566SF36UNSPSC39121529UPC00804766826702
