Part Number # 3RT10646AB363PA0
SKU # 2364069
Image Disclaimers Message
3RT10646AB363PA0

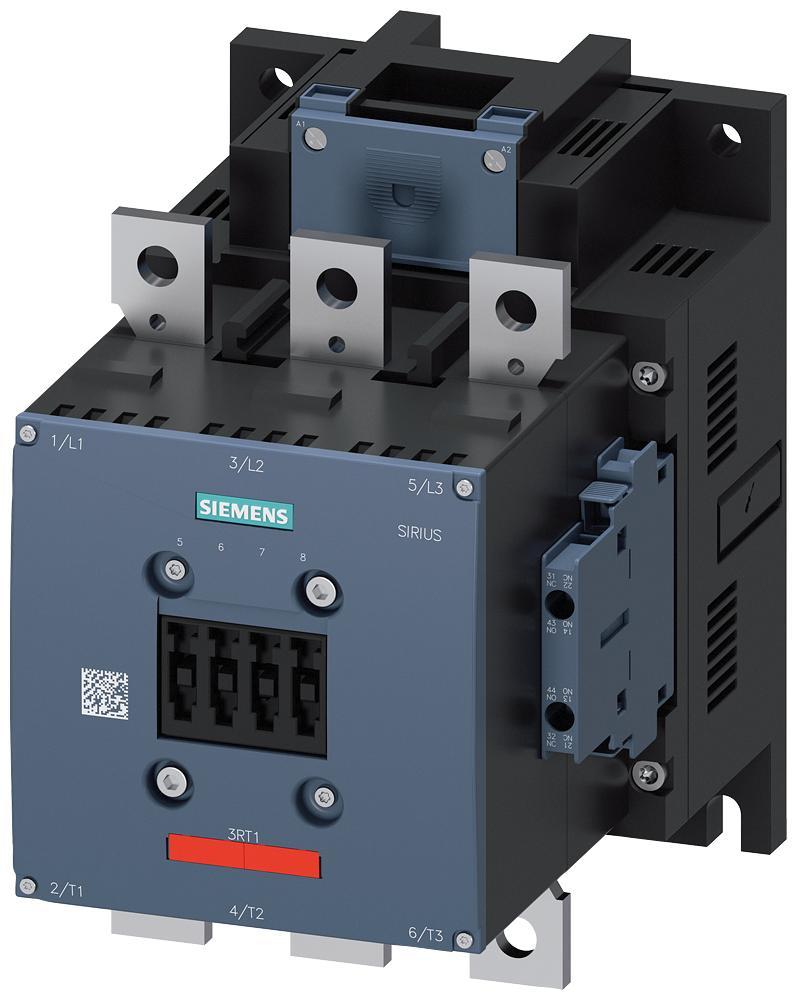

Siemens 3RT10646AB363PA0 Power Contactor
Part Number # 3RT10646AB363PA0
SKU # 2364069
$1280.91 / Each
Typical price:$2802.00 / Each
Siemens 3RT10646AB363PA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT10646AB363PA0 |
| SKU #: | 2364069 |
| Coil Power Rating: | 590 VA Pick-Up, 6.7 VA Holding, 650 W Closing and 7.4 W Holding |
| Coil Voltage: | 23 to 26, 23 to 26 VAC/VDC |
| Contact Configuration: | 2NO-2NC |
| Dimensions: | 145 mm W x 202 mm D x 210 mm H |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Series: | 3RT1 |
| Size: | 10 |
| Terminal Type: | Screw |
| Type: | Standard |
| Wattage: | 110, 110 kW |
| Connection type: | Bus Bar, Busbar |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded |
| Power factor: | 0.9 Closing/Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00887621221058 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1280.91 / Each
Typical price:$2802.00 / Each
Quantity:
- Siemens Power Contactor, Standard, Series: 3RT1, 23 to 26 VAC/VDC Coil, 225 A Maximum Load Current, 590 VA Pick-Up, 6.7 VA Holding, 650 W Closing and 7.4 W Holding Coil, 3 Pole, 50/60 Hz Frequency, 110 kW Wattage, 2NO-2NC Contact Configuration, Power Factor: 0.9 Closing/Holding, Bus Bar Connection, 10 Size, Screw Terminal, IP00/IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded Mounting, 145 mm W x 202 mm D x 210 mm H Dimensions
3RT10646AB363PA0 Item Features
- 10000000 cycles mechanical/5000000 cycles electrical
- Conventional screw terminal
3RT10646AB363PA0 Standards
ABS Approved|CCC Certified|CE Certified|CSA Certified|DNV-GL Approved|EAC Certified|RCM Approved|RMRS Approved|UL ListedSKU #2364069Part Number #3RT10646AB363PA0UNSPSC39121529UPC00887621221058
