Brand: Siemens
3RT1065-6AF36

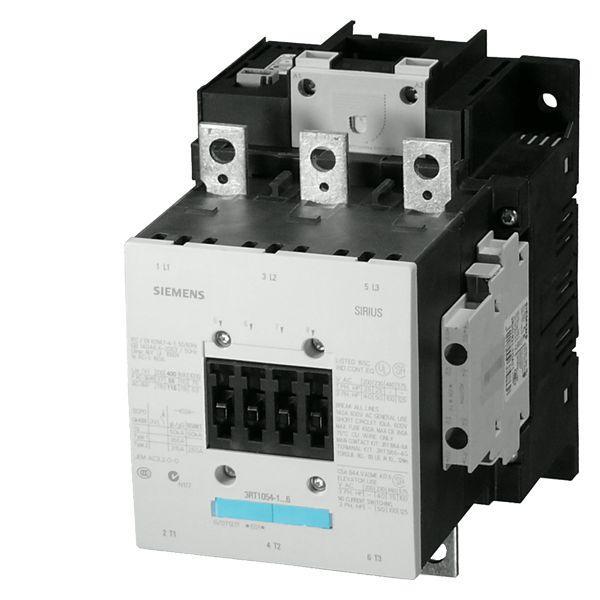

Siemens 3RT1065-6AF36 SIRIUS IEC Contactor
Part Number # 3RT1065-6AF36
SKU # 833092
$1388.34 / Each
Typical price:$3037.00 / Each
Siemens 3RT1065-6AF36 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT1065-6AF36 |
| SKU #: | 833092 |
| Coil Power Rating: | 590 VA Pickup, 6.7 VA Holding, 6.7/590 VA, 7.4/650 W |
| Coil Voltage: | 110 V AC, 127 V DC, 110 VAC, 127 VDC, 110 to 127 |
| Contact Configuration: | 2NO-2NC, 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 210 mm H x 145 mm W x 202 mm D |
| Enclosure Type: | IP00, IP00/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles Contactor/Typical |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | S10, Size S10 |
| Terminal Type: | Busbar, Busbar/Screw |
| Type: | Standard |
| Wattage: | 132, 132 kW |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | Panel/Screw Fixing, Threaded |
| Power factor: | 0.9, 0.9 Closing, 0.9 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00754554771021 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1388.34 / Each
Typical price:$3037.00 / Each
Quantity:
- Siemens SIRIUS IEC Contactor, Standard, 110 V AC, 127 V DC Coil, 265 A Maximum Load Current, 590 VA Pickup, 6.7 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, 132 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 4 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.9 Closing, 0.9 Holding, Screw Connection, Size S10 Size, Busbar/Screw Terminal, IP00 Enclosure, 10000000 Cycles Contactor/Typical Operating Cycles, -25 to 60 deg C Operating, Panel/Screw Fixing Mounting, 210 mm H x 145 mm W x 202 mm D Dimensions
3RT1065-6AF36 Application
Switching Motors Applications3RT1065-6AF36 Item Features
- Without suppression lugs
- 10000000 of the contactor/typical, 10000000 of the contactor with added auxiliary switch block/typical, 5000000 of the contactor with added electronics compatible auxiliary switch block/typical 1/hr
- 3-phase
3RT1065-6AF36 Standards
UL File No. E31519 (Vol 11 Sec 3)SKU #833092Part Number #3RT1065-6AF36UNSPSC39121529UPC00754554771021
