Part Number # 3RT10656AF363PA0
SKU # 2389237
Image Disclaimers Message
3RT10656AF363PA0

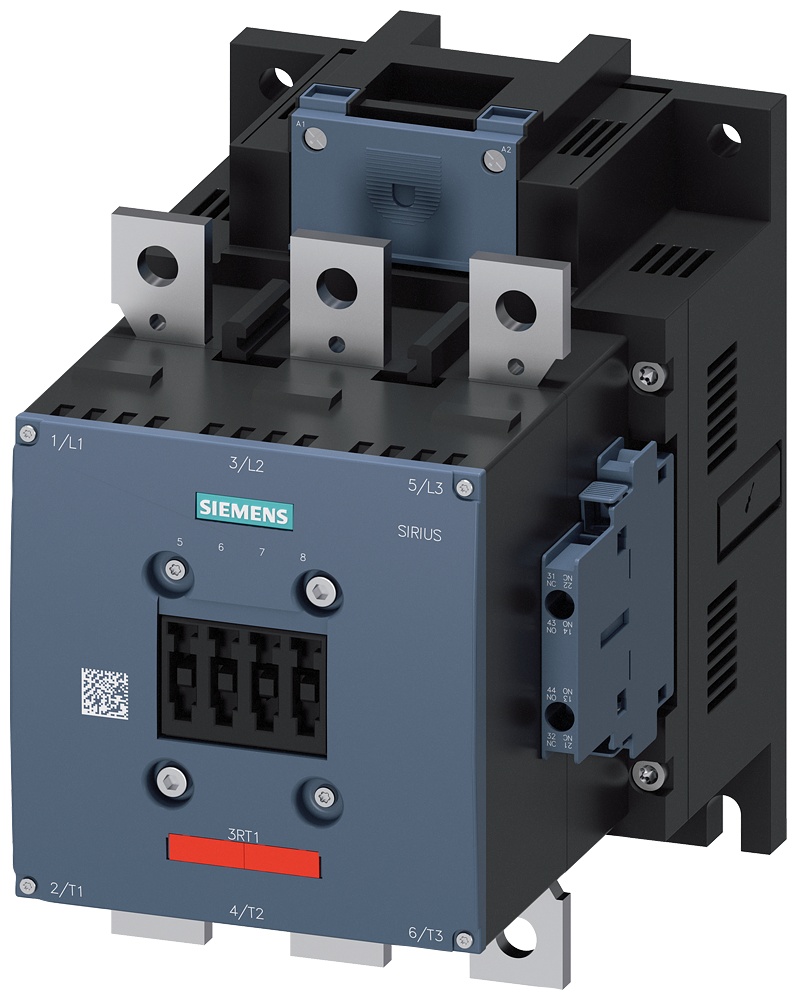

Siemens 3RT10656AF363PA0 Sirius Power Contactor
Part Number # 3RT10656AF363PA0
SKU # 2389237
$1408.46 / Each
Typical price:$3081.00 / Each
Siemens 3RT10656AF363PA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT10656AF363PA0 |
| SKU #: | 2389237 |
| Coil Power Rating: | 132 kW at 400 V 3-Phase |
| Coil Voltage: | 110 to 127 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 210 mm H x 145 mm W x 202 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT10 |
| Size: | S10 |
| Terminal Type: | Busbar/Screw |
| Type: | 3-Phase Standard |
| Wattage: | 590 VA Pickup, 6.7 VA Holding, 650 W DC Closing, 7.4 W DC Holding |
| Country of origin: | DE |
| Mounting type: | Threaded |
| Power factor: | 0.9 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00887621221089 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1408.46 / Each
Typical price:$3081.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT10, 110 to 127 VAC/VDC Coil, 265 A Maximum Load Current, 132 kW at 400 V 3-Phase Coil Power Rating, 3 Poles, 50/60 Hz, 590 VA Pickup, 6.7 VA Holding, 650 W DC Closing, 7.4 W DC Holding, 3NO, 2NO-2NC Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.9, S10, Busbar/Screw Terminal, IP00/IP20, 10000000 Operating Cycles, -25 to 60 deg C Operating, Threaded Mount, 210 mm H x 145 mm W x 202 mm D
3RT10656AF363PA0 Item Features
- 590 VA pickup, 6.7 VA holding coil power
- 0.9 closing/holding power factor
3RT10656AF363PA0 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|RMRS Approved|DNV-GL Approved|DIN EN 81346-2|DIN 40719|IEC 204-2|IEC 750|WEEE 2012/19/EU|REACH Article No. 33SKU #2389237Part Number #3RT10656AF363PA0UNSPSC39121529UPC00887621221089
