Part Number # 3RT1076-6AB36
SKU # 2292815
Image Disclaimers Message
Brand: Siemens
3RT1076-6AB36

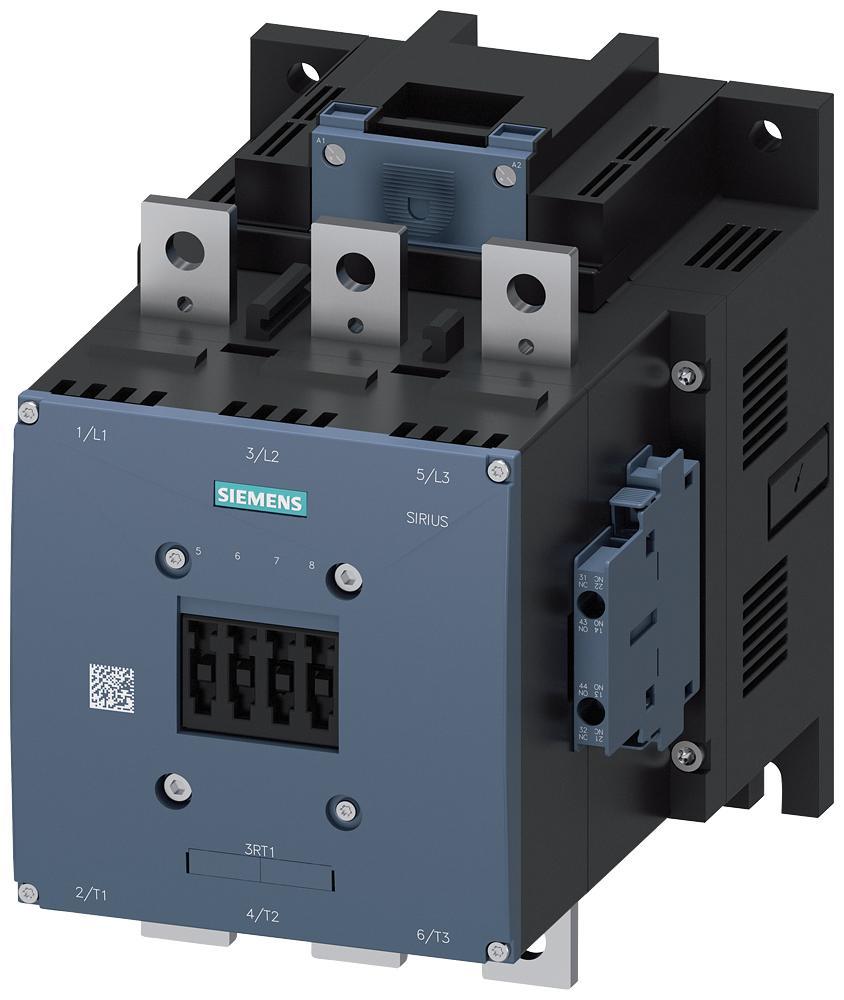

Siemens 3RT1076-6AB36 SIRIUS Power Contactor
Part Number # 3RT1076-6AB36
SKU # 2292815
$3306.13 / Each
Typical price:$7013.00 / Each
Siemens 3RT1076-6AB36 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT1076-6AB36 |
| SKU #: | 2292815 |
| Coil Power Rating: | 830 VA Pickup, 920 W Closing, 9.2 VA/10 W Holding |
| Coil Voltage: | 23 to 26, 23 to 26 V AC/DC, 23 to 26 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 214 mm H x 160 mm W x 225 mm D |
| Enclosure Type: | IP00/IP20, IP20/IP00 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | SZ S12 |
| Terminal Type: | Screw |
| Wattage: | 250, 250 kW |
| Connection type: | Bus Bar, Busbar |
| Country of origin: | DE |
| Mounting type: | Fixed/Threaded |
| Power factor: | 0.9 Closing, Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00754554772745 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3306.13 / Each
Typical price:$7013.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 23 to 26 V AC/DC Coil, 500 A Maximum Load Current, 830 VA Pickup, 920 W Closing, 9.2 VA/10 W Holding Coil, 3 Pole, 50/60 Hz Frequency, 250 kW Wattage, 3NO Contact Configuration, 4 Auxiliary Contacts, Power Factor: 0.9 Closing, Holding, Bus Bar Connection, SZ S12 Size, Screw Terminal, IP00/IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Fixed/Threaded Mounting, 214 mm H x 160 mm W x 225 mm D Dimensions
3RT1076-6AB36 Application
Switching Motors Applications3RT1076-6AB36 Item Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
3RT1076-6AB36 Standards
CCC Certified|CSA Certified|CE Certified|UL Listed|EAC ApprovedSKU #2292815Part Number #3RT1076-6AB36UNSPSC39121529UPC00754554772745
