Part Number # 3RT1076-6AF36
SKU # 936649
Image provided may only be a representation of
final product and may include optional equipment
3RT1076-6AF36
Siemens 3RT1076-6AF36 SIRIUS IEC Contactor
Part Number # 3RT1076-6AF36
SKU # 936649
Siemens 3RT1076-6AF36 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT1076-6AF36 |
| SKU #: | 936649 |
| Coil Power Rating: | 830 VA Pickup, 9.2 VA Holding, 9.2/830 VA, 10/920 W |
| Coil Voltage: | 110 VAC, 127 VDC, 110 to 127 V AC/DC, 110 to 127 VAC/VDC |
| Contact Configuration: | 2NO-2NC, 3NO |
| Contact Rating: | A600/Q600 |

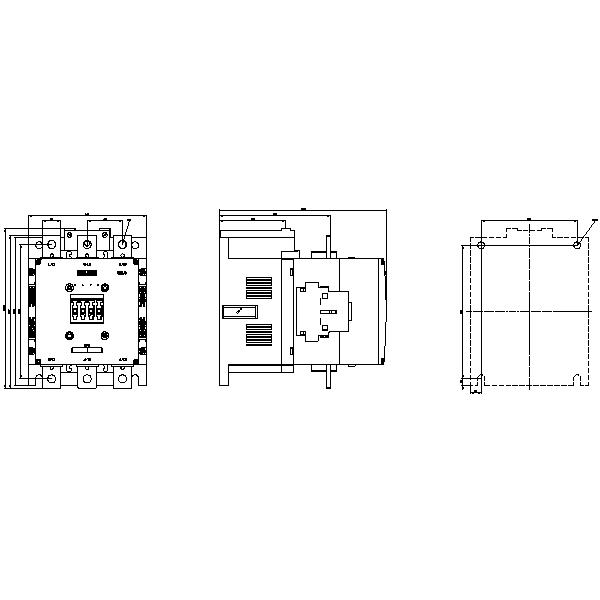

| Dimensions: | 214 mm H x 160 mm W x 225 mm D |
| Enclosure Type: | IP00, IP00/IP20 |
| Frequency Rating: | 40/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles, 10000000 Cycles Contactor/Typical |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | S12, Size S12 |
| Terminal Type: | Busbar, Screw/Spring Loaded |
| Type: | Standard |
| Wattage: | 250 kW, 291 |
| Connection type: | Screw |
| Country of origin: | DE |
| Mounting type: | Screw Fixing, Threaded |
| Power factor: | 0.9, 0.9 Closing, 0.9 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00754554766720 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT1076-6AF36 SIRIUS IEC Contactor
Brand: Siemens
Part Number: 3RT1076-6AF36
SIRIUS Contactor, Standard, 110 to 127 VAC/VDC Coil, 500 A Maximum Load Current, 9.2/830 VA, 10/920 W Coil, 3 Pole, 50/60 Hz Frequency, 250 kW Wattage, 2NO-2NC Contact Configuration, 4 Auxiliary Contacts, Power Factor: 0.9, S12 Size, Busbar Terminal, IP00/IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Threaded Mounting, 214 mm H x 160 mm W x 225 mm D Dimensions
Additional Description: SIEM-3RT1076-6AF36 CONTACTOR S12 500A 110-127VUC 3P BAR BAR 3P,BR COIL
Catalog Description: Contactor,IEC,Sirius,Standard 3 Pole,Non-Reversing 110 - 127 AC/DC Coil Frame Size S12,500A Panel Mount 2 NO ( & ) 2 NC Auxiliaries No Suppression Lugs (Not Included) Terminals UL File E31519 in Vol.11 Sec. 4
3RT1076-6AF36 Application
For switching motors3RT1076-6AF36 Item Features
- 830 VA at 50 Hz (pick-up), 9.2 VA at 50 Hz (holding) magnet coil at AC, 920 W (closing), 10 W (holding) magnet coil at DC
- 0.9 (closing/holding) power factor
3RT1076-6AF36 Standards
RoHS Compliant|REACH Article 33|CCC Certified|CSA Certified|UL Listed|EAC Approved|CE Certified|ABS Approved|RMRS Approved|DNV-GL ApprovedSKU #936649Part Number #3RT1076-6AF36UNSPSC39121529UPC00754554766720
