Brand: Siemens
3RT10762AR36

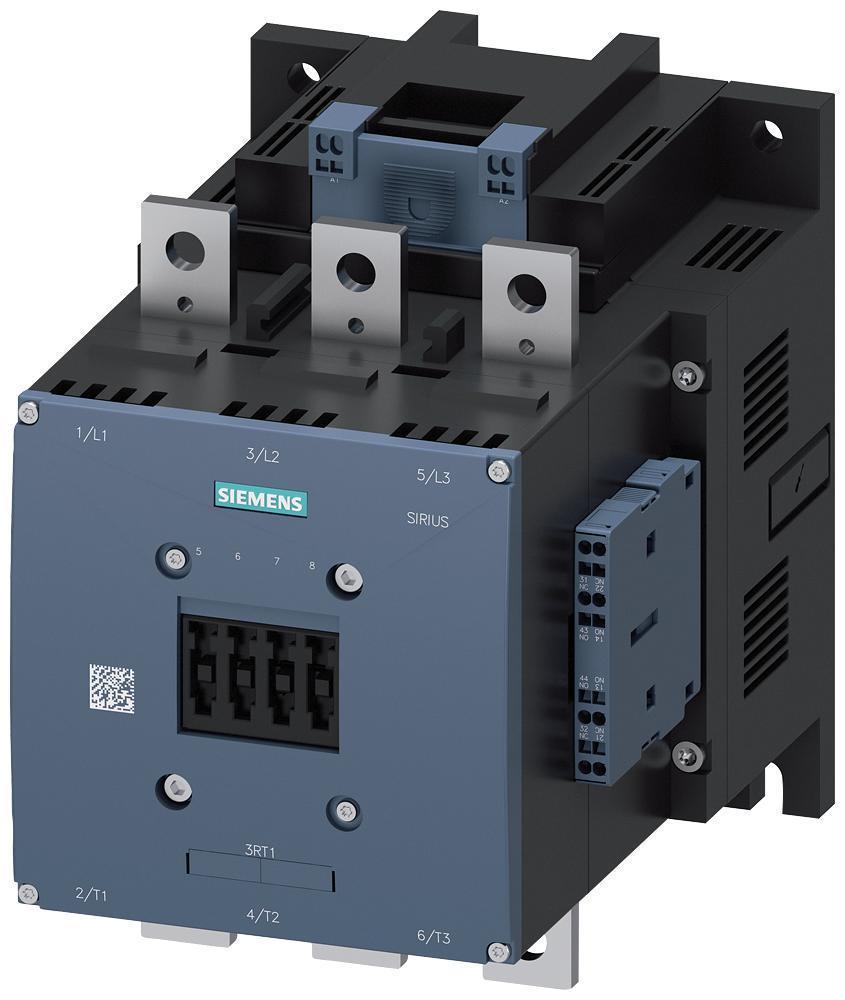

Siemens 3RT10762AR36 Sirius Power Contactor
Part Number # 3RT10762AR36
SKU # 2426302
$3306.13 / Each
Typical price:$7013.00 / Each
Siemens 3RT10762AR36 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT10762AR36 |
| SKU #: | 2426302 |
| Coil Power Rating: | 250 kW at 400 V 3-Phase |
| Coil Voltage: | 440 to 480 V AC/DC, 440 to 480 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 214 mm H x 160 mm W x 225 mm D |
| Enclosure Type: | IP00/IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT10 |
| Size: | S12 |
| Terminal Type: | Busbar/Spring Loaded |
| Type: | 3-Phase Standard |
| Wattage: | 830 VA Pickup, 9.2 VA Holding, 920 W DC Closing, 10 W DC Holding |
| Country of origin: | DE |
| Mounting type: | Threaded |
| Power factor: | 0.9 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00040892790436 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$3306.13 / Each
Typical price:$7013.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT10, 440 to 480 V AC/DC Coil, 500 A Maximum Load Current, 250 kW at 400 V 3-Phase Coil Power Rating, 3 Poles, 50/60 Hz, 830 VA Pickup, 9.2 VA Holding, 920 W DC Closing, 10 W DC Holding, 3NO, 2NO-2NC Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.9, S12, Busbar/Spring Loaded Terminal, IP00/IP20, 10000000 Operating Cycles, -25 to 60 deg C Operating, Threaded Mount, 214 mm H x 160 mm W x 225 mm D
3RT10762AR36 Item Features
- 830 VA pickup, 9.2 VA holding coil power
- 0.9 closing/holding power factor
3RT10762AR36 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|ABS Approved|RMRS Approved|DIN 40719|DIN EN 81346-2|IEC 204-2|IEC 750|WEEE 2012/19/EU|REACH Article No. 33SKU #2426302Part Number #3RT10762AR36UNSPSC39121529UPC00040892790436
