Part Number # 3RT20151AR61
SKU # 2329404
Image Disclaimers Message
3RT20151AR61

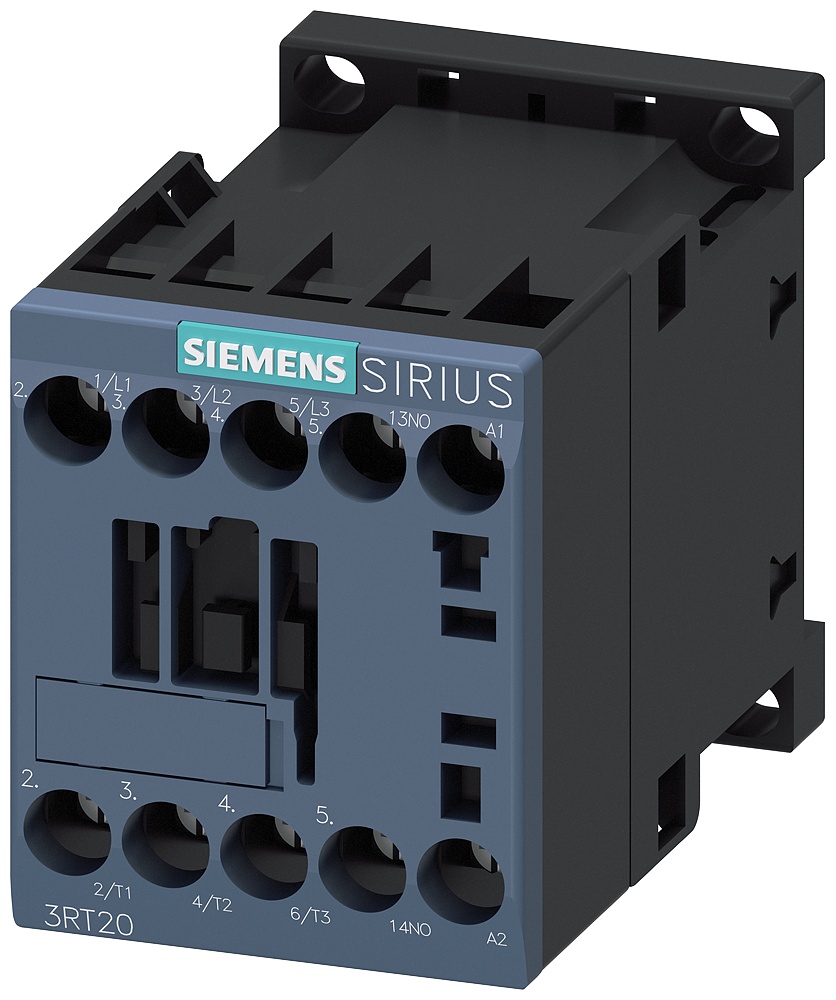

Siemens 3RT20151AR61 SIRIUS Power Contactor
Part Number # 3RT20151AR61
SKU # 2329404
Siemens 3RT20151AR61 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20151AR61 |
| SKU #: | 2329404 |
| Coil Power Rating: | 26.4/31.7 VA Pickup, 4.4/4.8 VA Holding |
| Coil Voltage: | 400 to 440, 400 to 440 VAC |
| Contact Configuration: | 3NO |
| Dimensions: | 58 mm H x 45 mm W x 73 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1 |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000, 30000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | Size S00 |
| Terminal Type: | Screw |
| Wattage: | 3, 3 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.81 Closing, 0.24/0.25 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643908886 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20151AR61 SIRIUS Power Contactor
Brand: Siemens
Part Number: 3RT20151AR61
Siemens SIRIUS Power Contactor, 400 to 440 VAC Coil, 7 A Maximum Load Current, 26.4/31.7 VA Pickup, 4.4/4.8 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, 3 kW Wattage, 3NO Contact Configuration, 1 Auxiliary Contact, Power Factor: 0.81 Closing, 0.24/0.25 Holding, Size S00 Size, Screw Terminal, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 58 mm H x 45 mm W x 73 mm D Dimensions
Additional Description: SIEM-3RT20151AR61 CONTACTOR S00 7A 400VAC 1NO SCRW
Catalog Description: CONTACTOR, AC-3, 3KW/400V, 1NO, AC 400V 50HZ, 400...440V 60HZ 3-POLE, SZ S00 SCREW TERMINAL
3RT20151AR61 Application
Switching Motors Applications3RT20151AR61 Item Features
- These can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20151AR61 Standards
CSA|CE Certified|UL Listed|EAC StandardSKU #2329404Part Number #3RT20151AR61UNSPSC39121529UPC00662643908886
