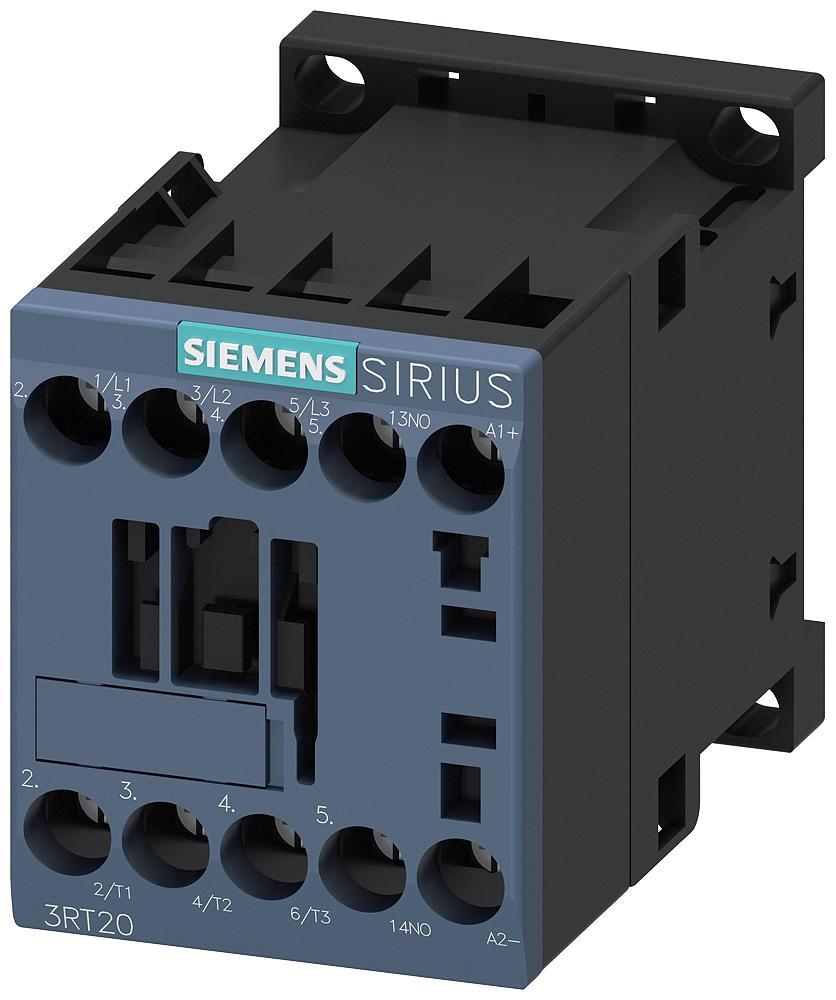

Siemens 3RT20151SB41 Power Coupling Contactor With Integrated Suppressor Diode
Part Number # 3RT20151SB41
SKU # 2431907
3RT20151SB41
Siemens 3RT20151SB41 Power Coupling Contactor With Integrated Suppressor Diode
Part Number # 3RT20151SB41
SKU # 2431907
$89.60 / Each
Typical price:$224.00 / Each
Siemens 3RT20151SB41 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20151SB41 |
| SKU #: | 2431907 |
| Coil Power Rating: | 1.6 W Closing/Holding |
| Coil Voltage: | 24 V DC |
| Contact Configuration: | 1NO |
| Dimensions: | 45 mm W x 73 mm D x 58 mm H |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 1 |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT20 |
| Size: | S00 |
| Terminal Type: | Screw |
| Type: | Standard |
| Wattage: | 3 kW |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded/DIN Rail/Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643909173 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$89.60 / Each
Typical price:$224.00 / Each
Quantity:
- Siemens, 3RT20151SB41, Power Coupling Contactor, Standard, Series: 3RT20, 24 V DC Coil, 7 A Maximum Load Current, 1.6 W Closing/Holding Coil, 3 Pole, 3 kW Wattage, 1NO Contact Configuration, 1 Auxiliary Contacts, S00 Size, Screw Terminal, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 45 mm W x 73 mm D x 58 mm H Dimensions
3RT20151SB41 Application
For switching motors3RT20151SB41 Item Features
- 1.6 W (closing/holding) magnet coil at DC
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20151SB41 Standards
EN 60947|IEC 60947|RoHS Compliant|UL Listed|EAC Approved|ABS Approved|Bureau Veritas CertifiedLRS Listed|PRS Certified|RINA Certified|RMRS Approved|DNV-GL Approved|VDE ApprovedSKU #2431907Part Number #3RT20151SB41UNSPSC39121529UPC00662643909173
Image provided may only be a representation of final product and may include optional equipment
