Part Number # 3RT20152AF01
SKU # 2459177
3RT20152AF01
Siemens 3RT20152AF01
Part Number # 3RT20152AF01
SKU # 2459177
$61.60 / Each
Typical price:$154.00 / Each
Siemens 3RT20152AF01 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20152AF01 |
| SKU #: | 2459177 |
| Coil Power Rating: | 27/24.3 VA Pickup, 4.2/3.3 VA Holding |
| Coil Voltage: | 110 V AC |
| Contact Configuration: | 1NO |
| Dimensions: | 45 mm W x 73 mm D x 70 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT2 |
| Size: | S00 |
| Terminal Type: | Spring |
| Wattage: | 3 kW |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded/DIN Rail/Snap-On |
| Power factor: | 0.8/0.75 Closing, 0.25 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643909272 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$61.60 / Each
Typical price:$154.00 / Each
Quantity:
- Siemens Power Contactor, Series: 3RT2, 110 V AC Coil, 7 A Maximum Load Current, 27/24.3 VA Pickup, 4.2/3.3 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, 3 kW Wattage, 1NO Contact Configuration, Power Factor: 0.8/0.75 Closing, 0.25 Holding, S00 Size, Spring Terminal, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 45 mm W x 73 mm D x 70 mm H Dimensions
3RT20152AF01 Item Features
- 30000000 cycles contactor/5000000 cycles contactor with added electronics compatible auxiliary switch block/10000000 cycles contactor with added auxiliary switch block
- 27 VA at 50 Hz/24.3 VA at 60 Hz pick-up/4.2 VA at 50 Hz/3.3 VA at 60 Hz holding power AC
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RT20152AF01 Standards
ABS Approved|CCC Certified|CE Certified|CSA Certified|EAC Certified|RCM Approved|UL ListedSKU #2459177Part Number #3RT20152AF01UNSPSC39121529UPC00662643909272

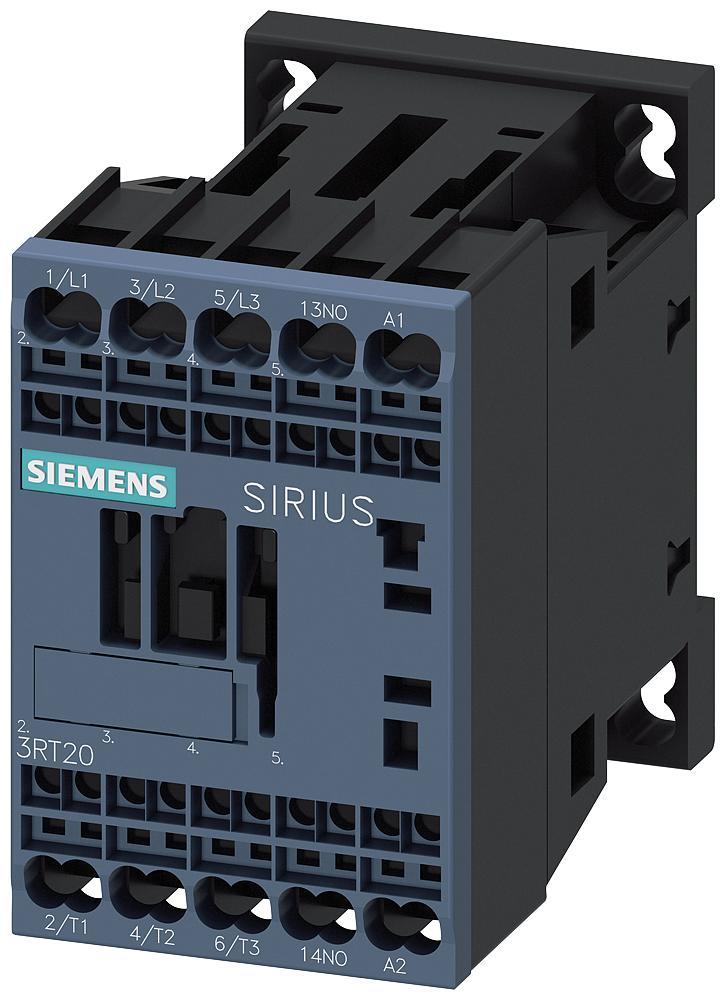

Image provided may only be a representation of final product and may include optional equipment
