Part Number # 3RT20152AP011AA0
SKU # 2364853

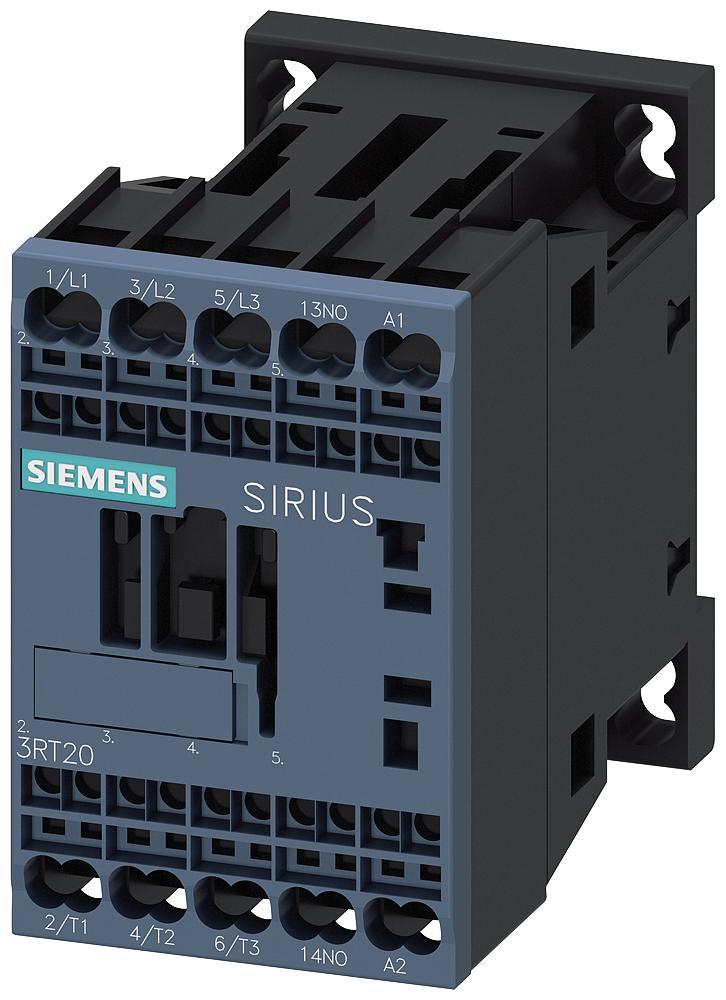

Image provided may only be a representation of
final product and may include optional equipment
3RT20152AP011AA0
Siemens 3RT20152AP011AA0 Sirius Power Contactor
Part Number # 3RT20152AP011AA0
SKU # 2364853
Siemens 3RT20152AP011AA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20152AP011AA0 |
| SKU #: | 2364853 |
| Coil Power Rating: | 3 kW at 400 V 3-Phase |
| Coil Voltage: | 230 V AC, 230 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 70 mm H x 45 mm W x 73 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000 |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT20 |
| Size: | S00 |
| Terminal Type: | Spring Loaded |
| Type: | 3-Phase Standard |
| Wattage: | 24.3/27 VA Pickup, 3.3/4.2 VA Holding |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.25/0.75/0.8 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766901959 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20152AP011AA0 Sirius Power Contactor
Brand: Siemens
Part Number: 3RT20152AP011AA0
Siemens SIRIUS Power Contactor, 3-Phase Standard, Series: 3RT20, 230 VAC Coil, 7 A Maximum Load Current, 3 kW at 400 V 3-Phase Coil, 3 Pole, 50/60 Hz Frequency, 24.3/27 VA Pickup, 3.3/4.2 VA Holding Wattage, 3NO Contact Configuration, 1NO Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.25/0.75/0.8, S00 Size, Spring-Loaded Terminal, IP20 Enclosure, 30000000 Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 70 mm H x 45 mm W x 73 mm D Dimensions
Additional Description: SIEM-3RT20152AP011AA0 CONTACT.AC3:3KW 1NO AC230V 50/60HZ.VERTI 400 V 1 NO, 230 V AC, 50/60 Hz 3-pole
Catalog Description: Power contactor. AC-3 7 A. 3 kW / 400 V 1 NO. 220 V AC. 50 / 60 Hz 3-pole. SizeS00 Spring-type terminal upright mounting position
3RT20152AP011AA0 Application
For switching motors3RT20152AP011AA0 Item Features
- 27 VA at 50 Hz, 24.3 VA at 60 Hz pickup, 4.2 VA at 50 Hz, 3.3 VA at 60 Hz holding coil power
- 0.8 at 50 Hz, 0.75 at 60 Hz closing, 0.25 at 50/60 Hz holding power factor
3RT20152AP011AA0 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|KC Certified|ABS Approved|Lloyds Register|PRS Approved|RINA Approved|RMRS Approved|DNV-GL Approved|BUREAU VERITAS Approved|VDE Certified|DIN EN 81346-2|DIN 40719|IEC 204-2|IEC 750|WEEE 2012/19/EUSKU #2364853Part Number #3RT20152AP011AA0UNSPSC39121529UPC00804766901959
