Part Number # 3RT20162SB42
SKU # 2443612
3RT20162SB42
Siemens 3RT20162SB42
Part Number # 3RT20162SB42
SKU # 2443612
Siemens 3RT20162SB42 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20162SB42 |
| SKU #: | 2443612 |
| Coil Power Rating: | 1.6 W Closing/Holding |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 1NC |
| Dimensions: | 45 mm W x 73 mm D x 70 mm H |
| Enclosure Type: | IP20 |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT20 |
| Size: | S00 |
| Terminal Type: | Spring Loaded |
| Wattage: | 4 kW |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded/DIN Rail/Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643910773 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20162SB42
Brand: Siemens
Part Number: 3RT20162SB42
Siemens Power Coupling Contactor, Series: 3RT20, 24 VDC Coil, 9 A Maximum Load Current, 1.6 W Closing/Holding Coil, 3 Pole, 4 kW Wattage, 1NC Contact Configuration, S00 Size, Spring-Loaded Terminal, IP20 Enclosure, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 45 mm W x 73 mm D x 70 mm H Dimensions
Additional Description: SIEM-3RT20162SB42 COUPLNG RELAY S00 9A 24VDC 1NC SPRG
Catalog Description: COUPLING RELAY, AC-3, 4KW/400V, 1NC, DC 24V, 0.85...1.85*US, W. DIODE COMB. INTEGRATED, 3-POLE SZ S00, SPRING-LOADED TERMINAL
3RT20162SB42 Application
For switching motors3RT20162SB42 Item Features
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20162SB42 Standards
EN 60947|IEC 60947SKU #2443612Part Number #3RT20162SB42UNSPSC39121529UPC00662643910773

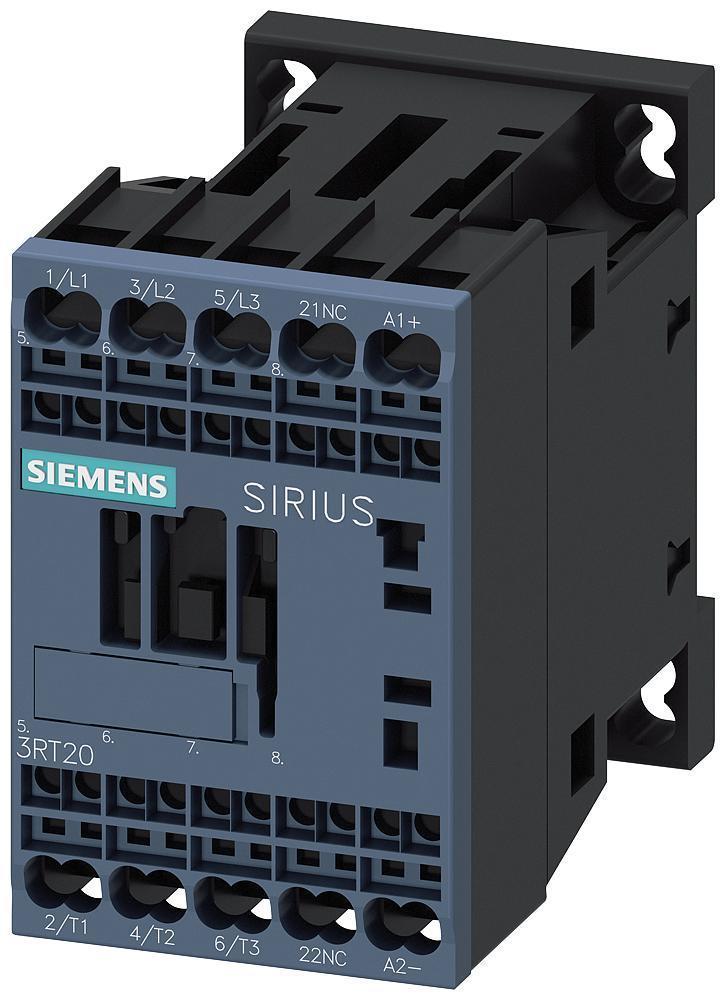

Image provided may only be a representation of final product and may include optional equipment
