Part Number # 3RT20164AK61
SKU # 2357073
Image Disclaimers Message
3RT20164AK61

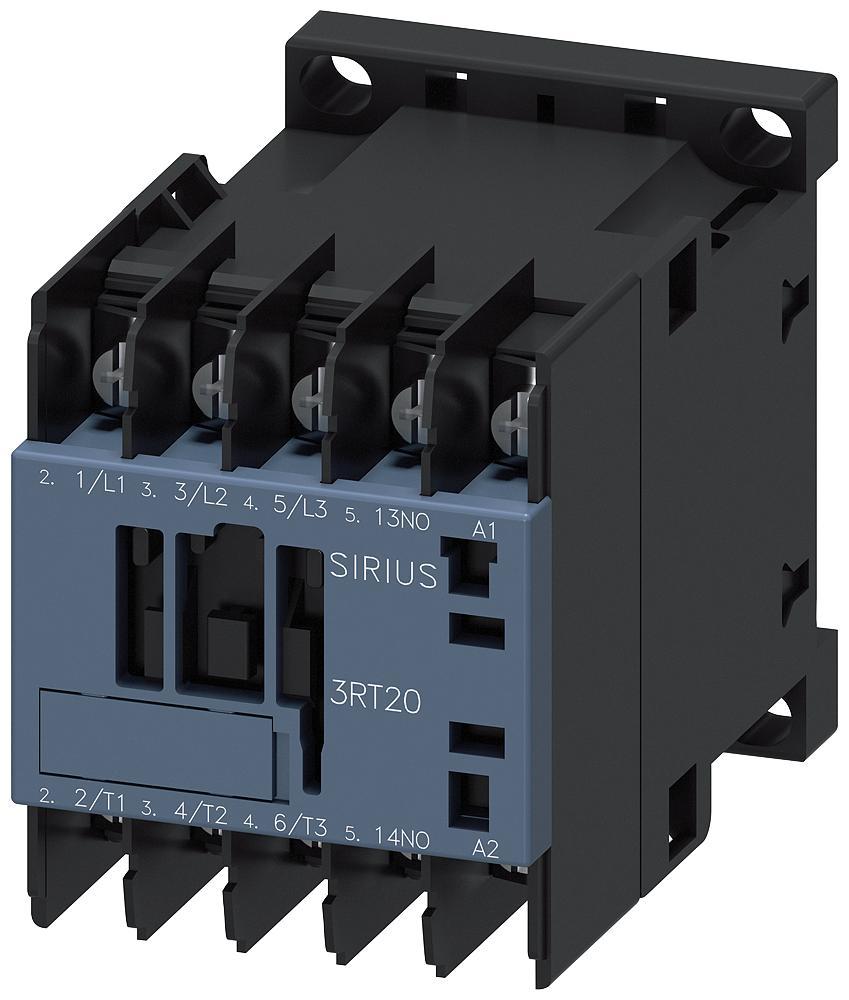

Siemens 3RT20164AK61 SIRIUS Power Contactor
Part Number # 3RT20164AK61
SKU # 2357073
$69.60 / Each
Typical price:$174.00 / Each
Siemens 3RT20164AK61 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20164AK61 |
| SKU #: | 2357073 |
| Coil Power Rating: | 7-1/2, 7-1/2 hp |
| Coil Voltage: | 110/120, 110/120 V AC, 110/120 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 58 mm H x 45 mm W x 73 mm D |
| Enclosure Type: | IP00 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1 |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000, 30000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | SZ 00 |
| Terminal Type: | Cable Lug |
| Type: | 3-Phase Non-Reversing |
| Wattage: | 4, 4 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.81 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643910841 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$69.60 / Each
Typical price:$174.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 3-Phase Non-Reversing, 110/120 V AC Coil, 9 A Maximum Load Current, 7-1/2 hp Coil Power Rating, 3 Poles, 50/60 Hz, 4 kW, Auxiliary Contact, 3NO, 1 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.81, SZ 00, Cable Lug Terminal, IP00, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 58 mm H x 45 mm W x 73 mm D
3RT20164AK61 Application
For switching motors3RT20164AK61 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface
- 2 hp at 200/208 VAC, 3 hp at 220/230 VAC, 5 hp at 460/480 VAC, 7-1/2 hp at 575/600 VAC
- 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20164AK61 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|VDE Certified|ABS Certified|LRS Certified|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Certified|BUREAU VERITAS Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2357073Part Number #3RT20164AK61UNSPSC39121529UPC00662643910841
