Siemens 3RT20181AG62 Sirius Power Contactor
Part Number # 3RT20181AG62
SKU # 2387152
Siemens 3RT20181AG62 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20181AG62 |
| SKU #: | 2387152 |
| Coil Power Rating: | 10, 10 hp |
| Coil Voltage: | 100/110, 100/110 V AC, 100/110 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 58 mm H x 45 mm W x 73 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1 |
| Number of Poles: | 3 |
| Operating Cycles: | 30000000, 30000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | SZ 00 |
| Terminal Type: | Screw |
| Type: | 3-Phase Non-Reversing |
| Wattage: | 7.5, 7.5 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.8 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643912630 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20181AG62 Sirius Power Contactor
Brand: Siemens
Part Number: 3RT20181AG62
Siemens SIRIUS Power Contactor, 3-Phase Non-Reversing, 100/110 VAC Coil, 16 A Maximum Load Current, 10 hp Coil Power Rating, 3 Poles, 50/60 Hz, 7.5 kW, Auxiliary Contact, 3NO, 1 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.8, SZ 00, Screw Terminal, IP20, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 58 mm H x 45 mm W x 73 mm D
Additional Description: SIEM-3RT20181AG62 CONTACTOR S00 16A 100VAC 1NC SCRW
Catalog Description: Contactor, AC-3, 7.5KW/400V, 1NC, AC 100v 50HZ, 100...110v 60HZ 3-pole, sz s00 screw terminal
3RT20181AG62 Application
For switching motors3RT20181AG62 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface
- 3 hp at 200/208 VAC, 5 hp at 220/230 VAC, 10 hp at 460/480 VAC and 575/600 VAC
- 100 VAC at 50 Hz, 110 VAC at 60 Hz coil voltage
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20181AG62 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|VDE Certified|ABS Certified|LRS Certified|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Certified|BUREAU VERITAS Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2387152Part Number #3RT20181AG62UNSPSC39121529UPC00662643912630

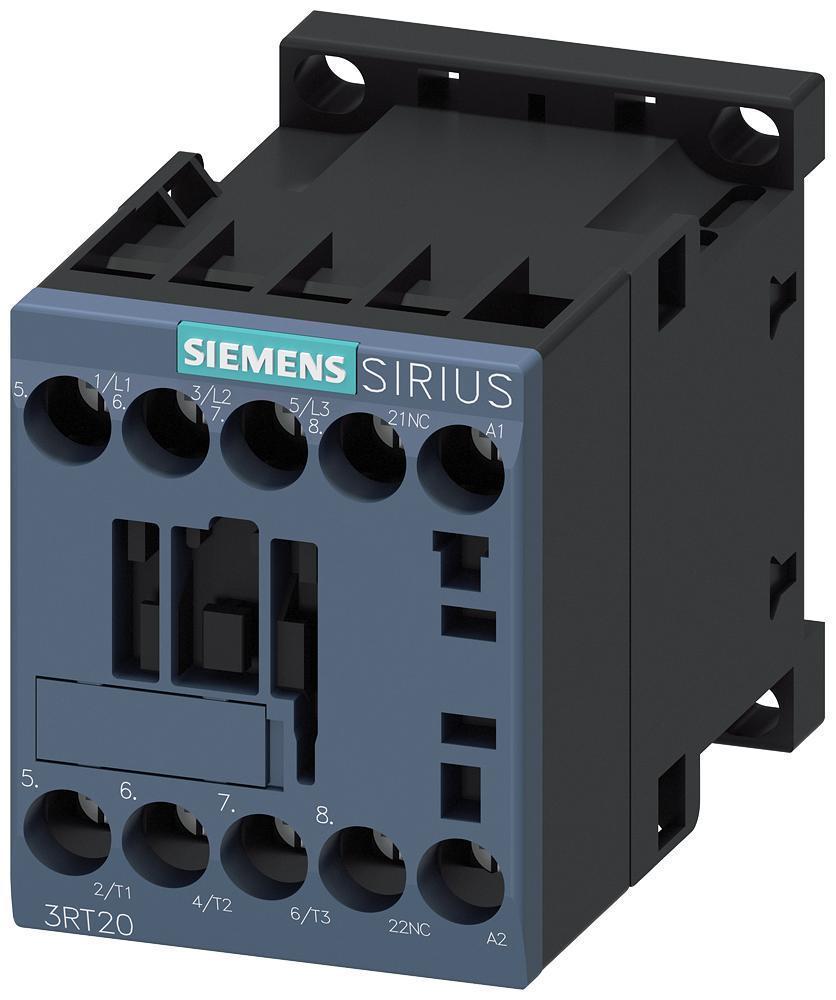

Image provided may only be a representation of final product and may include optional equipment
