3RT20181AV61

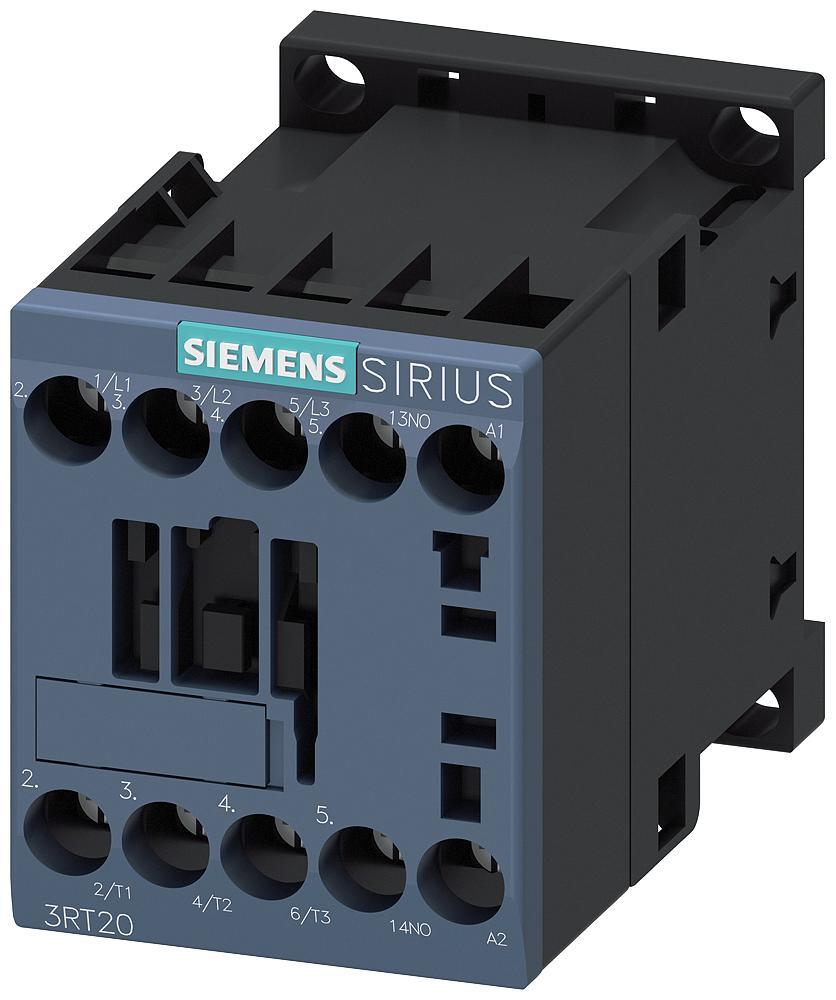

Siemens 3RT20181AV61 SIRIUS Power Contactor
Part Number # 3RT20181AV61
SKU # 2311212
$124.00 / Each
Typical price:$310.00 / Each
Siemens 3RT20181AV61 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20181AV61 |
| SKU #: | 2311212 |
| Coil Power Rating: | 2 hp, 10 hp |
| Coil Voltage: | 480 V AC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 58 mm H x 45 mm W x 73 mm D |
| Number of Auxiliary Contacts: | 1 |
| Operating Cycles: | 30000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Size: | SZ 00 |
| Wattage: | 7.5 kW |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.8 |
| UNSPSC: | 39121529 |
| UPC: | 00887621817169 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$124.00 / Each
Typical price:$310.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 480 V AC Coil, 16 A Maximum Load Current, 2 hp, 10 hp Coil Power Rating, 3 Poles, 60 Hz, 7.5 kW, Auxiliary Contact, 3NO, 1 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.8, SZ 00, Screw Terminal, IP20, 30000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 58 mm H x 45 mm W x 73 mm D
3RT20181AV61 Application
For switching motors3RT20181AV61 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface
- 1 hp at 110/120 VAC, 2 hp at 230 VAC, 3 hp at 200/208 VAC, 5 hp at 220/230 VAC, 10 hp at 460/480 VAC and 575/600 VAC
- https://www.youtube.com/watch?v=lvThW3cHXnA\u200b|https://www.youtube.com/watch?v=TjGCthgMlXo|https://www.youtube.com/watch?v=y_qB1VuTgj8|https://www.youtube.com/watch?v=Nxe0AyVN99w|https://www.youtube.com/watch?v=7q_ZbO-LKd8|https://www.youtube.com/watch?v=4AdAIl-ElSk
3RT20181AV61 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|VDE Certified|ABS Certified|LRS Certified|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Certified|BUREAU VERITAS Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2311212Part Number #3RT20181AV61UNSPSC39121529UPC00887621817169
Image provided may only be a representation of final product and may include optional equipment
