Part Number # 3RT20182BB443MA0
SKU # 2450562
Image Disclaimers Message
3RT20182BB443MA0

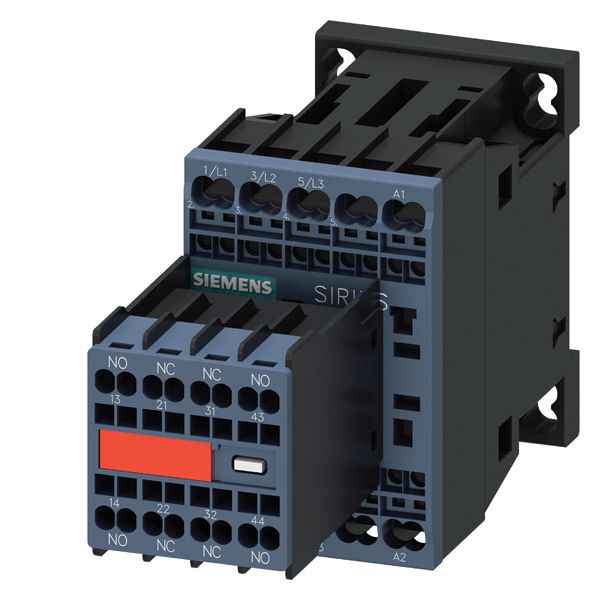

Siemens 3RT20182BB443MA0
Part Number # 3RT20182BB443MA0
SKU # 2450562
Siemens 3RT20182BB443MA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20182BB443MA0 |
| SKU #: | 2450562 |
| Coil Power Rating: | 4 W Closing/Holding |
| Coil Voltage: | 24 VDC |
| Contact Configuration: | 2NO-2NC |
| Dimensions: | 45 mm W x 121 mm D x 70 mm H |
| Enclosure Type: | IP20 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT2 |
| Size: | S00 |
| Terminal Type: | Spring |
| Wattage: | 7.5 kW |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded/DIN Rail/Snap-On |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643913545 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20182BB443MA0
Brand: Siemens
Part Number: 3RT20182BB443MA0
Siemens Power Contactor, Series: 3RT2, 24 VDC Coil, 16 A Maximum Load Current, 4 W Closing/Holding Coil Power Rating, 3 Pole, 7.5 kW, 2NO-2NC, S00, Spring Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mount, 45 mm W x 121 mm D x 70 mm H
Additional Description: SIEM-3RT20182BB443MA0 CONTACTOR S00 16A 24VDC 2NO/2NC SPRG
Catalog Description: Contactor, AC-3, 7.5KW/400V, 2NO+2NC, DC 24V, 3-pole, sz s00 spring-loaded terminal permanent aux. switch for suva applications
3RT20182BB443MA0 Item Features
- 10000000 cycles contactor/5000000 cycles contactor with added electronics compatible auxiliary switch block/10000000 cycles contactor with added auxiliary switch block
- Permanent mounted auxiliary switch block for SUVA applications
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RT20182BB443MA0 Standards
ABS Approved|CCC Certified|CE Certified|CSA Certified|EAC Certified|RCM Approved|UL ListedSKU #2450562Part Number #3RT20182BB443MA0UNSPSC39121529UPC00662643913545
