3RT20231BB44

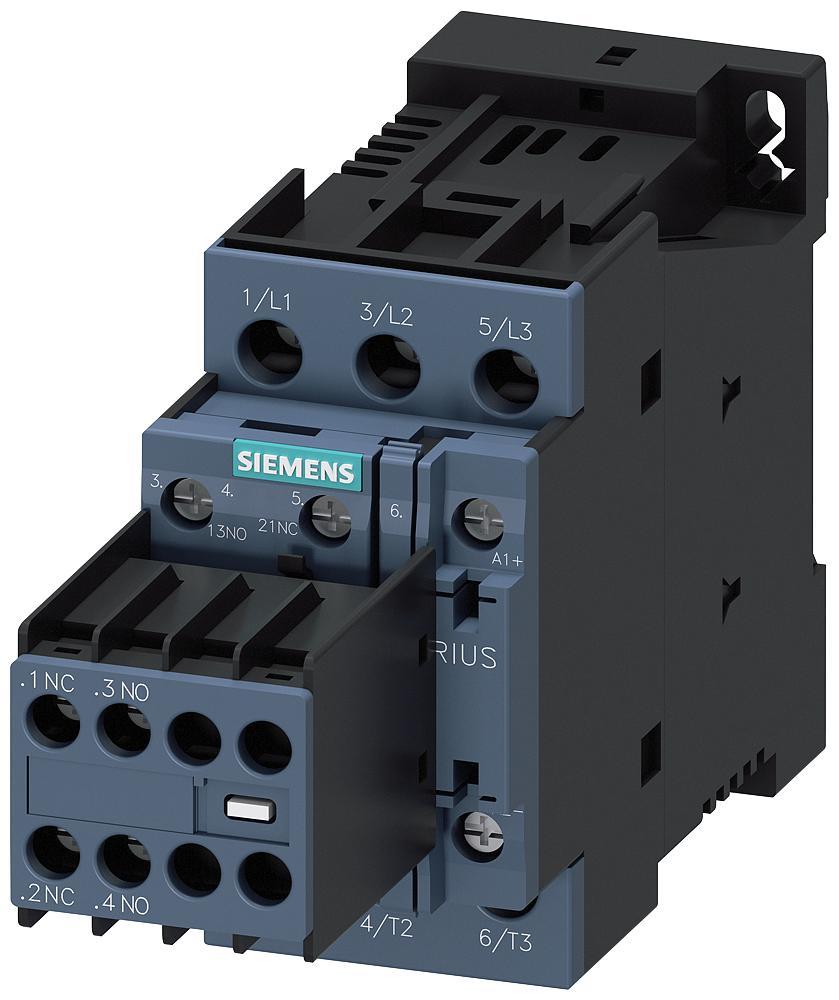

Siemens 3RT20231BB44 SIRIUS Power Contactor
Part Number # 3RT20231BB44
SKU # 2303256
$163.60 / Each
Typical price:$409.00 / Each
Siemens 3RT20231BB44 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20231BB44 |
| SKU #: | 2303256 |
| Coil Power Rating: | 7-1/2, 7-1/2 hp |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 85 mm H x 45 mm W x 151 mm D |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | SZ 0 |
| Terminal Type: | Screw |
| Type: | 3-Phase Non-Reversing |
| Wattage: | 4, 4 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643912180 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$163.60 / Each
Typical price:$409.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 3-Phase Non-Reversing, 24 V DC Coil, 9 A Maximum Load Current, 7-1/2 hp Coil Power Rating, 3 Poles, 4 kW, Auxiliary Contact, 3NO, 4 Auxiliary Contacts, A600/Q600 Contact, SZ 0, Screw Terminal, IP20, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 85 mm H x 45 mm W x 151 mm D
3RT20231BB44 Application
For switching motors3RT20231BB44 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- 2 hp at 200/208 VAC, 3 hp at 220/230 VAC, 5 hp at 460/480 VAC, 7-1/2 hp at 575/600 VAC
- Removable auxiliary switch
- https://www.youtube.com/watch?v=n2AKmVUVH7Y
3RT20231BB44 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|VDE Certified|ABS Certified|LRS Certified|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Certified|BUREAU VERITAS Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2303256Part Number #3RT20231BB44UNSPSC39121529UPC00662643912180
