Part Number # 3RT20231NB30
SKU # 2390106
3RT20231NB30

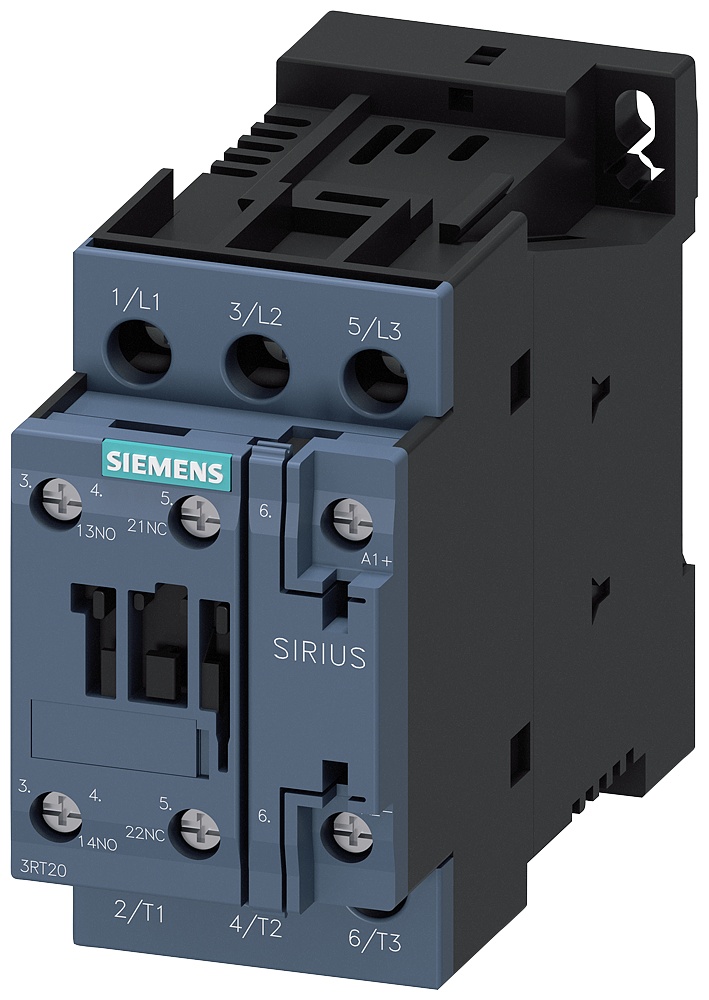

Siemens 3RT20231NB30 Power Contactor
Part Number # 3RT20231NB30
SKU # 2390106
Siemens 3RT20231NB30 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20231NB30 |
| SKU #: | 2390106 |
| Coil Power Rating: | 7-1/2 hp |
| Coil Voltage: | 21 to 28 V AC/DC, 21 to 28 VAC/VDC |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Contact Rating: | A600/Q600 |
| Dimensions: | 85 mm H x 45 mm W x 107 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Size: | SZ 0 |
| Terminal Type: | Screw |
| Wattage: | 4 kW |
| Country of origin: | DE |
| Mounting type: | Snap-On/DIN Rail |
| Power factor: | 0.98 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00887621853952 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20231NB30 Power Contactor
Brand: Siemens
Part Number: 3RT20231NB30
Siemens Power Contactor, 21 to 28 VAC/VDC Coil, 9 A Maximum Load Current, 7-1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, 4 kW Wattage, 1NC-1NO Contact Configuration, A600/Q600 Contact, Power Factor: 0.98, SZ 0 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Snap-On/DIN Rail Mounting, 85 mm H x 45 mm W x 107 mm D Dimensions
Additional Description: SIEM-3RT20231NB30 CONTACTOR S0 9A 21-28VUC 1NO/1NC SCREW
Catalog Description: Contactor, AC-3, 4KW/400V, 1NO+1NC, AC(50-60HZ)/DC actuat. AC/DC 21...28V, 3-pole, sz s0 screw terminal
3RT20231NB30 Standards
CCC Certified|CSA Certified|UL Listed|KC Certified|EAC Certified|RCM Certified|CE Certified|VDE CertifiedSKU #2390106Part Number #3RT20231NB30UNSPSC39121529UPC00887621853952
Image provided may only be a representation of final product and may include optional equipment
