3RT20251NB30

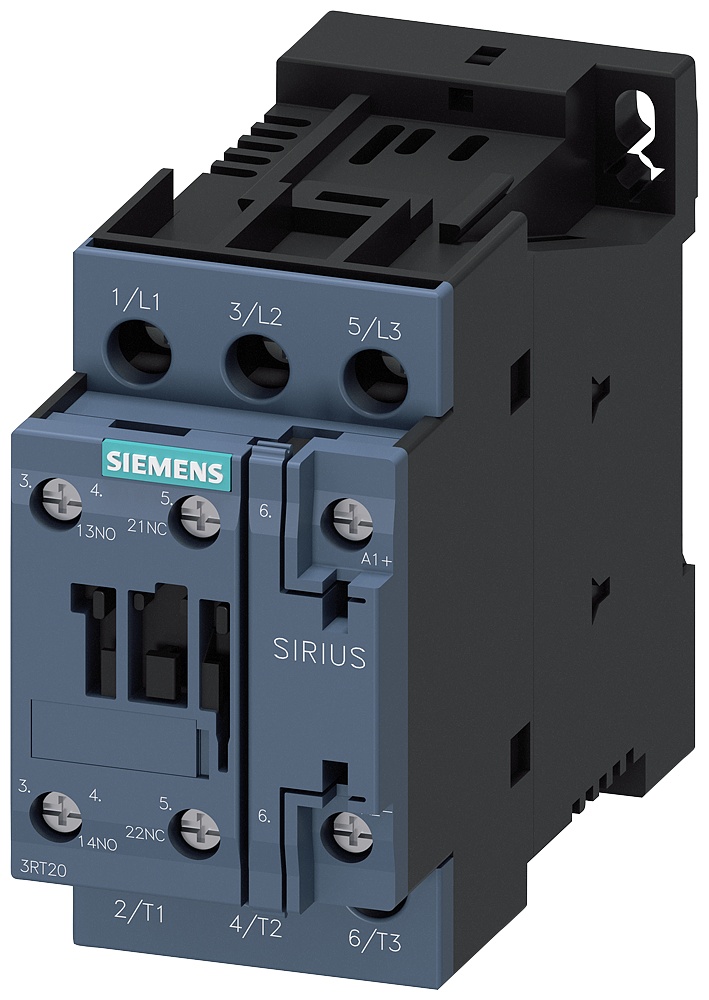

Siemens 3RT20251NB30 SIRIUS Power Contactor
Part Number # 3RT20251NB30
SKU # 2400429
Siemens 3RT20251NB30 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20251NB30 |
| SKU #: | 2400429 |
| Coil Power Rating: | 15 hp |
| Coil Voltage: | 21 to 28 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 85 mm H x 45 mm W x 107 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 40 to 60 Hz |
| Number of Auxiliary Contacts: | 2 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Size: | SZ 0 |
| Terminal Type: | Screw |
| Type: | 3-Phase Non-Reversing |
| Wattage: | 7.5 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Power factor: | 0.98 |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643914467 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20251NB30 SIRIUS Power Contactor
Brand: Siemens
Part Number: 3RT20251NB30
Siemens SIRIUS Power Contactor, 3-Phase Non-Reversing, 21 to 28 VAC/VDC Coil, 16 A Maximum Load Current, 15 hp Coil Power Rating, 3 Poles, 40 to 60 Hz, 7.5 kW, Auxiliary Contact, 3NO, 2 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.98, SZ 0, Screw Terminal, IP20, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 85 mm H x 45 mm W x 107 mm D
Additional Description: SIEM-3RT20251NB30 CONTACTOR S0 16A 21-28VUC 1NO/1NC SCRW
Catalog Description: Contactor, AC-3, 7.5KW/400V, 1NO+1NC, AC(40-60HZ)/DC actuat. , uc 21...28V, 3-pole, sz s0 screw terminal
3RT20251NB30 Application
For switching motors3RT20251NB30 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface
- 3 hp at 200/208 VAC, 5 hp at 220/230 VAC, 10 hp at 460/480 VAC, 15 hp at 575/600 VAC
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20251NB30 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|VDE Certified|ABS Certified|LRS Certified|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Certified|BUREAU VERITAS Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2400429Part Number #3RT20251NB30UNSPSC39121529UPC00662643914467
