3RT20262BB44

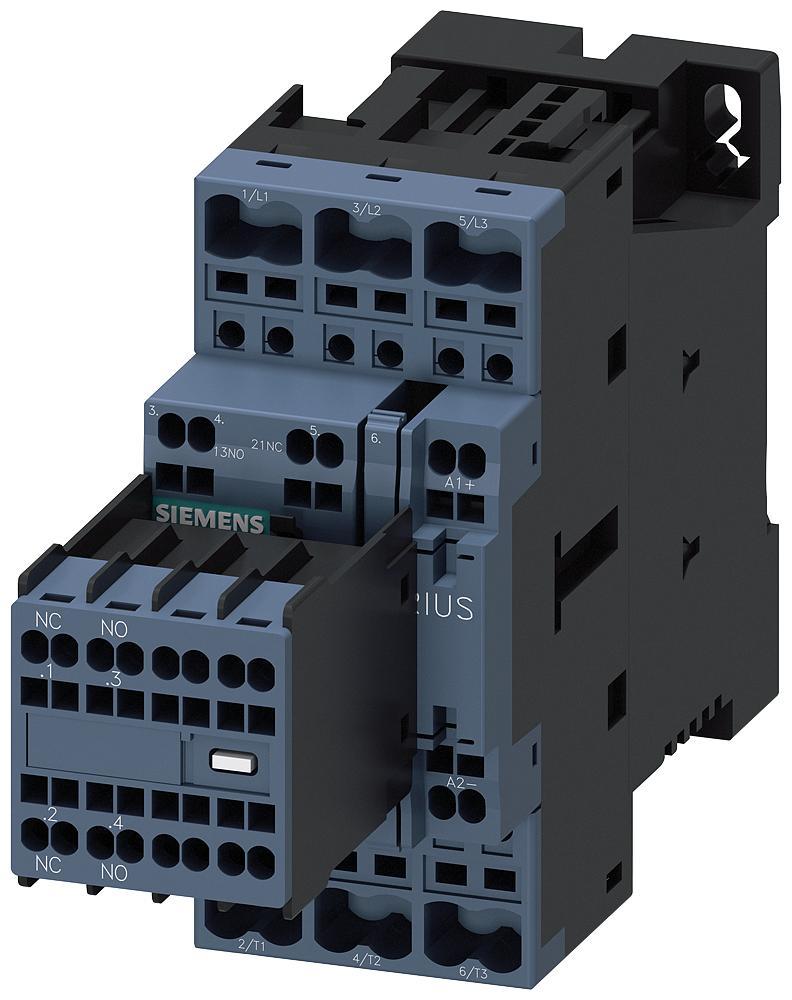

Siemens 3RT20262BB44 SIRIUS Power Contactor
Part Number # 3RT20262BB44
SKU # 2228526
$238.40 / Each
Typical price:$596.00 / Each
Siemens 3RT20262BB44 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20262BB44 |
| SKU #: | 2228526 |
| Coil Power Rating: | 20, 20 hp |
| Coil Voltage: | 24, 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | A600/Q600 |
| Dimensions: | 102 mm H x 45 mm W x 154 mm D |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 4 |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 60, -25 to 60 deg C |
| Size: | SZ 0 |
| Terminal Type: | Spring Loaded, Spring-Loaded |
| Type: | 3-Phase Non-Reversing |
| Wattage: | 11, 11 kW |
| Country of origin: | DE |
| Mounting type: | DIN Rail/Snap-On/Threaded |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00662643914122 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$238.40 / Each
Typical price:$596.00 / Each
Quantity:
- Siemens SIRIUS Power Contactor, 3-Phase Non-Reversing, 24 V DC Coil, 25 A Maximum Load Current, 20 hp Coil, 3 Pole, 11 kW Wattage, Auxiliary Contact, 3NO Contact Configuration, 4 Auxiliary Contacts, A600/Q600 Contact, SZ 0 Size, Spring Loaded Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mounting, 102 mm H x 45 mm W x 154 mm D Dimensions
3RT20262BB44 Application
For switching motors3RT20262BB44 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- The S00 and S0 contactors with communication interface are essential for mounting the SIRIUS function modules for connection to the control system through IO-Link or AS-Interface
- 5 hp at 200/208 VAC, 7-1/2 hp at 220/230 VAC, 15 hp at 460/480 VAC, 20 hp at 575/600 VAC
- Removable auxiliary switch
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20262BB44 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Certified|CE Certified|VDE Certified|ABS Certified|LRS Certified|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Certified|BUREAU VERITAS Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2228526Part Number #3RT20262BB44UNSPSC39121529UPC00662643914122
