Part Number # 3RT20271AP600UA0
SKU # 2356609
Image Disclaimers Message
3RT20271AP600UA0

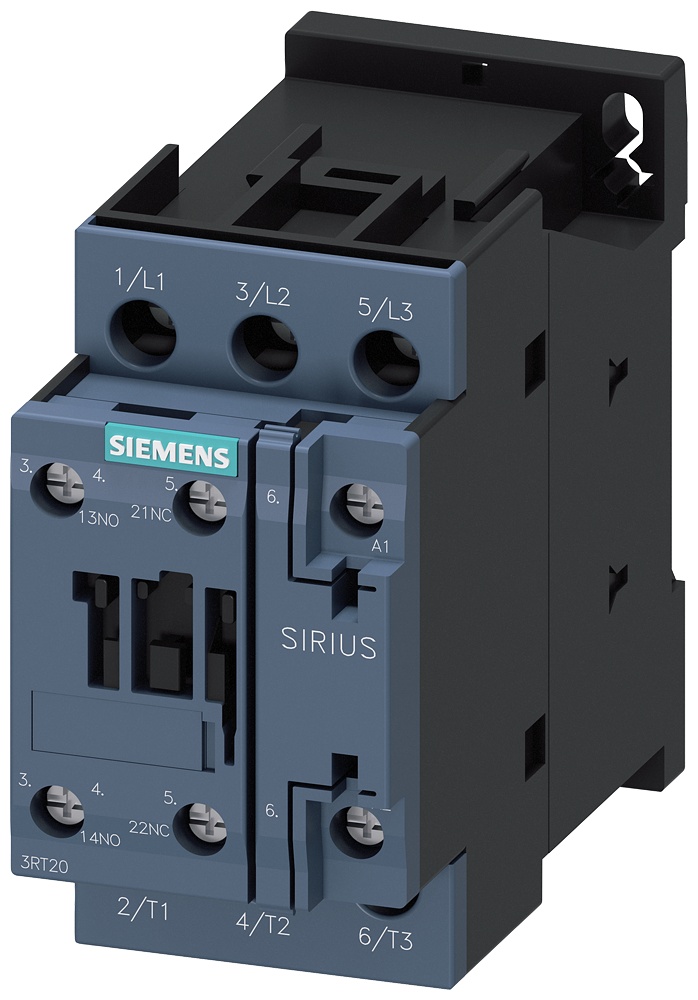

Siemens 3RT20271AP600UA0 Contactor
Part Number # 3RT20271AP600UA0
SKU # 2356609
$287.49 / Each
Typical price:$559.00 / Each
Siemens 3RT20271AP600UA0 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20271AP600UA0 |
| SKU #: | 2356609 |
| Coil Power Rating: | 81/79 VA Pickup, 10.5/8.5 VA Holding |
| Coil Voltage: | 220 V AC, 220 VAC |
| Contact Configuration: | 1NC-1NO, 1NO-1NC |
| Dimensions: | 45 mm W x 97 mm D x 85 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 60 deg C |
| Series: | 3RT2 |
| Size: | S0 |
| Terminal Type: | Screw |
| Country of origin: | DE |
| Mounting type: | Surface/Threaded/DIN Rail/Snap-On |
| Power factor: | 0.72/0.74 Closing, 0.25/0.28 Holding |
| Manufacturer Name: | Siemens |
| UNSPSC: | 39121529 |
| UPC: | 00804766006234 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$287.49 / Each
Typical price:$559.00 / Each
Quantity:
- Siemens Contactor, Series: 3RT2, 220 V AC Coil, 32 A Maximum Load Current, 81/79 VA Pickup, 10.5/8.5 VA Holding Coil, 3 Pole, 50/60 Hz Frequency, 1NO-1NC Contact Configuration, Power Factor: 0.72/0.74 Closing, 0.25/0.28 Holding, S0 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, Surface/Threaded/DIN Rail/Snap-On Mounting, 45 mm W x 97 mm D x 85 mm H Dimensions
3RT20271AP600UA0 Item Features
- 10000000 cycles contactor/5000000 cycles contactor with added electronics compatible auxiliary switch block/10000000 cycles contactor with added auxiliary switch block
- 81 VA at 50 Hz/79 VA at 60 Hz pick-up/10.5 VA at 50 Hz/8.5 VA at 60 Hz holding power AC
- NEMA labeled
3RT20271AP600UA0 Standards
ABS Approved|Bureau Veritas Certified|CCC Certified|CE Certified|CSA Certified|DNV-GL Approved|EAC Certified|LRS Approved|PRS Approved|RCM Approved|RINA Approved|RMRS Approved|UL Listed|VDE CertifiedSKU #2356609Part Number #3RT20271AP600UA0UNSPSC39121529UPC00804766006234
