Part Number # 3RT20281AN20
SKU # 2465227
3RT20281AN20
Siemens 3RT20281AN20
Part Number # 3RT20281AN20
SKU # 2465227
Siemens 3RT20281AN20 Key Features
| Brand: | Siemens |
|---|---|
| Part Number # : | 3RT20281AN20 |
| SKU #: | 2465227 |
| UNSPSC: | 39121529 |
| UPC: | 00662643917963 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Siemens 3RT20281AN20
Brand: Siemens
Part Number: 3RT20281AN20

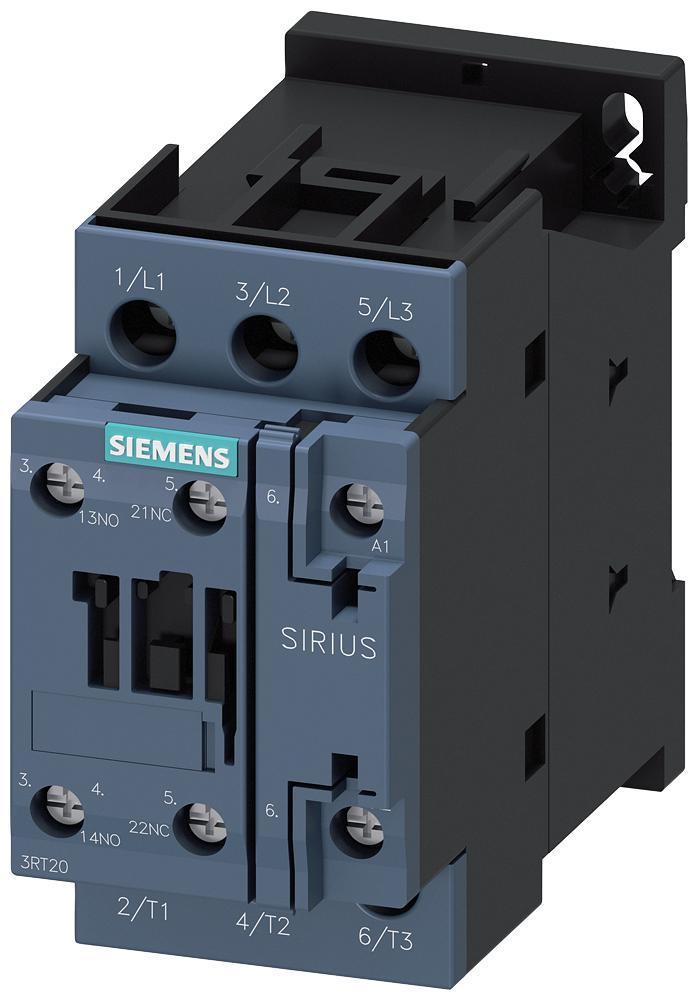

Siemens SIRIUS IEC Contactor, 3-Phase Non-Reversing, 220 VAC Coil, 38 A Maximum Load Current, 25 hp Coil Power Rating, 3 Poles, 50/60 Hz, 18.5 kW, 3NO, 2 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.72/0.74, SZ 0, Screw Terminal, IP20, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 85 mm H x 45 mm W x 97 mm D
Additional Description: SIEM-3RT20281AN20 CONTACTOR S0 38A 220VAC 1NO/1NC SCRW
Catalog Description: Contactor, AC-3, 18.5KW/400V, 1NO+1NC, AC 220v 50/60HZ, 3-pole, sz s0 screw terminal
3RT20281AN20 Application
For switching motors3RT20281AN20 Item Features
- 3RT2 contactors can be retrofitted with RC elements, varistors, suppressor diodes or diode assemblies (assembly of diode and Zener diode for short break times) for damping opening surges in the coil
- Space is provided for them next to a snap-on auxiliary switch block
- Contactors in size S00, S0 and S2 can be used to configure star-delta (wye-delta) starters simply by plugging in function modules, these can also be equipped with an AS-i or IO-Link interface as an option, which significantly reduces the control circuit wiring
- 10 hp at 200/208 VAC/220/230 VAC, 25 hp at 460/480 VAC/575/600 VAC
- https://www.youtube.com/watch?v=5Oq25B99HBo
3RT20281AN20 Standards
CCC Certified|CSA Certified|UL Listed|EAC Certified|RCM Tick|CE Certified|ABS Approved|BUREAU VERITAS Certified|Lloyds Register|PRS Certified|RINA Certified|RMRS Certified|DNV-GL Approved|VDE Certified|IEC 60947-1|EN 60947-1|IEC 60947-4-1|EN 60947-4-1|IEC 60947-5-1|EN 60947-5-1SKU #2465227Part Number #3RT20281AN20UNSPSC39121529UPC00662643917963
